Components And Components Location: Component

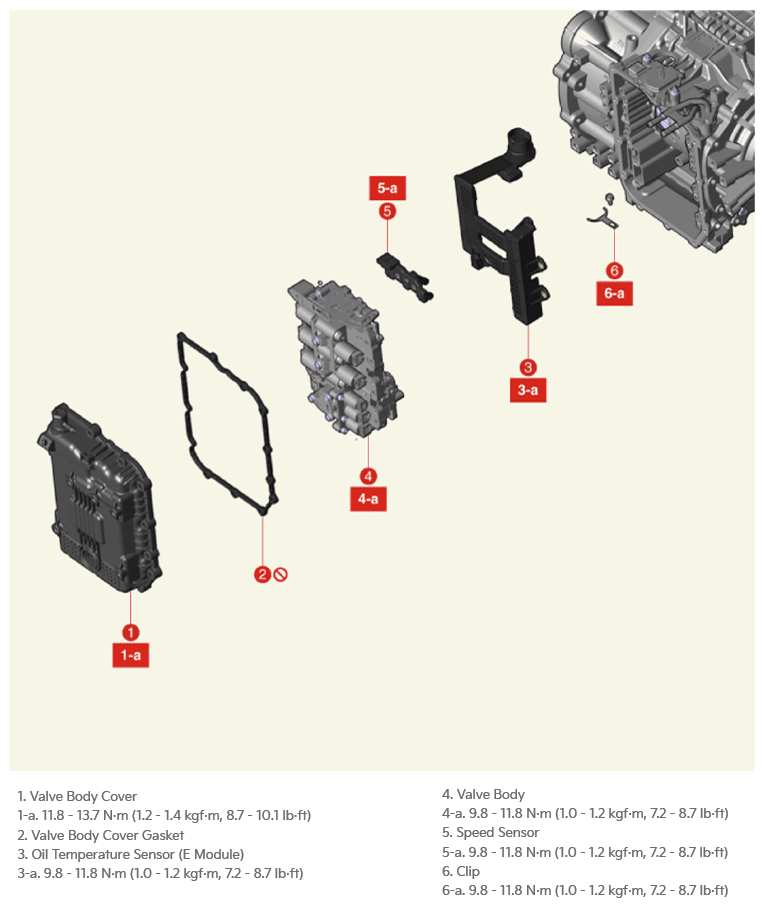

Fig 1: Oil Temperature Sensor Components Location With Torque Specifications (E Module)
G16424116Courtesy of KIA MOTORS AMERICA, INC.
