Position Switch: Removal

  1. Shift the gear to N.
    NOTE: Use wheel chocks to prevent vehicle moving accidentally.
  2. Disconnect the battery negative (-) terminal.
  3. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER REMOVAL & INSTALLATION  ")

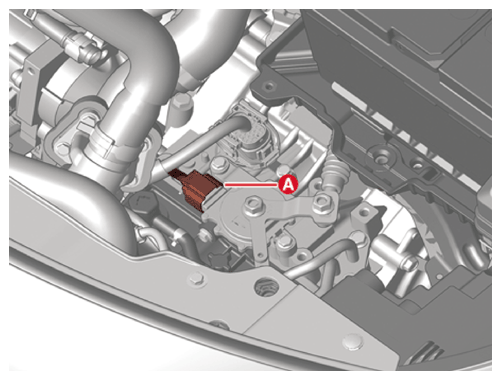

  4. Disconnect the position switch connector (A).
    G16424159Courtesy of KIA MOTORS AMERICA, INC.

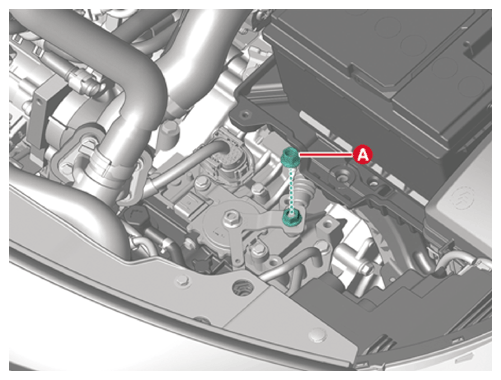

  5. Remove the shift cable by removing the nut (A).
    G16424160Courtesy of KIA MOTORS AMERICA, INC.

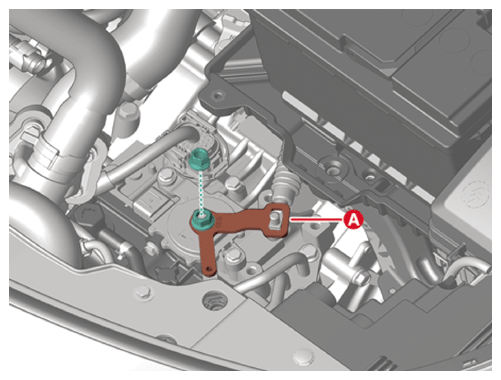

  6. Remove the manual control lever (A) and the washer after removing the nut.
    G16424161Courtesy of KIA MOTORS AMERICA, INC.

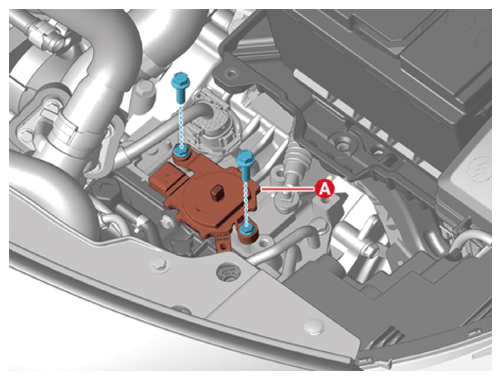

  7. Remove the position switch (A) after removing the bolts.
    G16424162Courtesy of KIA MOTORS AMERICA, INC.
