Removal And Installation: Installation

  1. Install in reverse order of removal.
    NOTE:

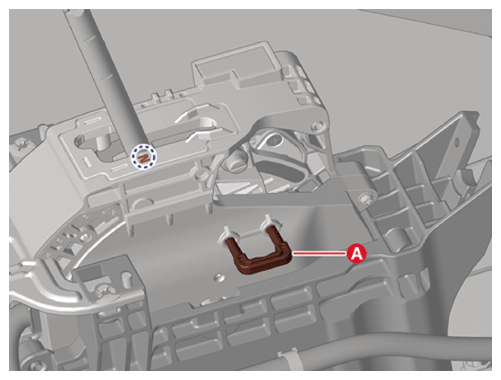

    • Insert "N" range fixing pin (A) of shift lever after checking shift lever and the manual control lever are in the "N" range before installation.
      G16424178Courtesy of KIA MOTORS AMERICA, INC.

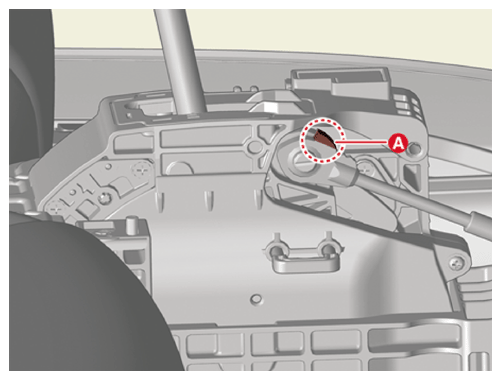

    • Install the shift cable after checking the direction of tab (A) to prevent incorrect assembly.
      G16424179Courtesy of KIA MOTORS AMERICA, INC.

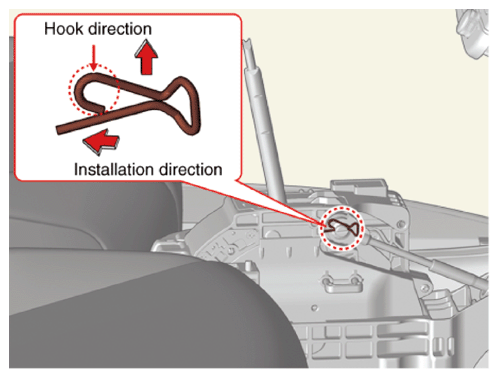

    • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
      G16424180Courtesy of KIA MOTORS AMERICA, INC.

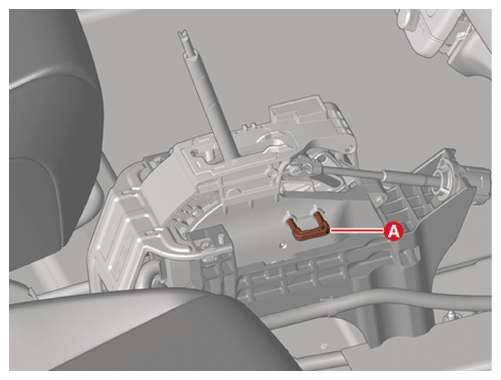

    • Make sure to get rid of "N" range fixing pin (A) after installing the shift lever assembly.
      G16424181Courtesy of KIA MOTORS AMERICA, INC.
