Removal And Installation: Removal

Place the shift lever in the 'N' position.
NOTE: Use wheel chocks to prevent vehicle moved accidentally.
Disconnect the battery negative (-) terminal.
Remove the floor console assembly.
(Refer to Body - " FLOOR CONSOLE ASSEMBLY ")

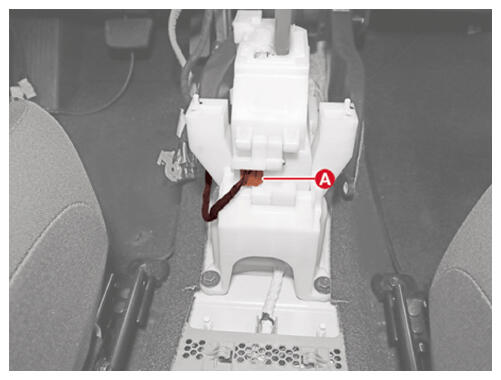

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

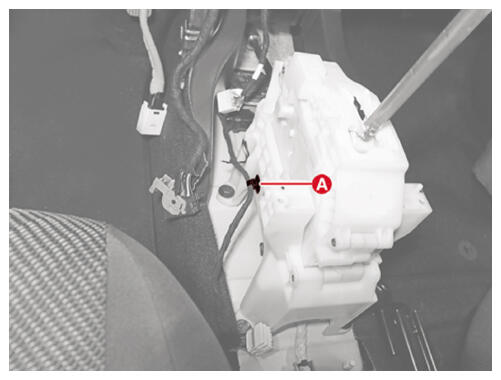

Remove the wiring clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

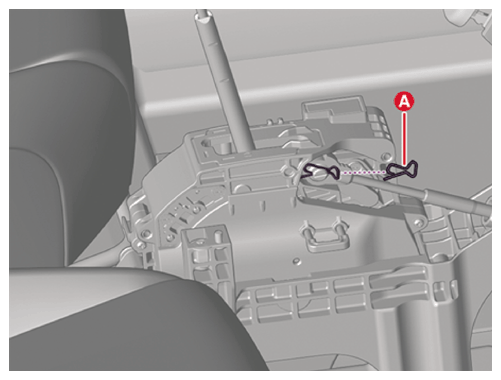

Remove the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

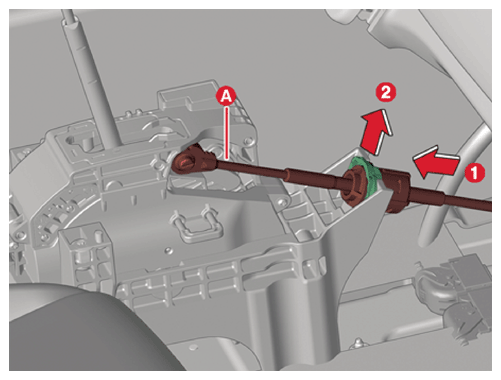

Remove the shift cable (A) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

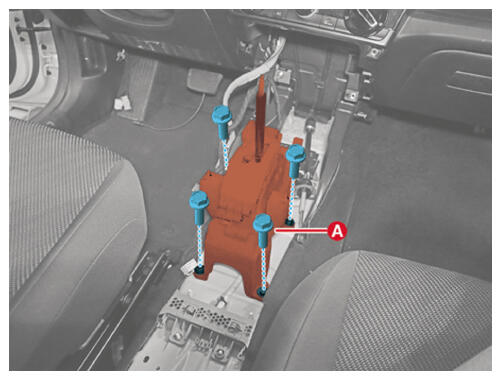

Remove the shift lever assembly (A) after removing the bolts.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
