Components And Components Location: Component

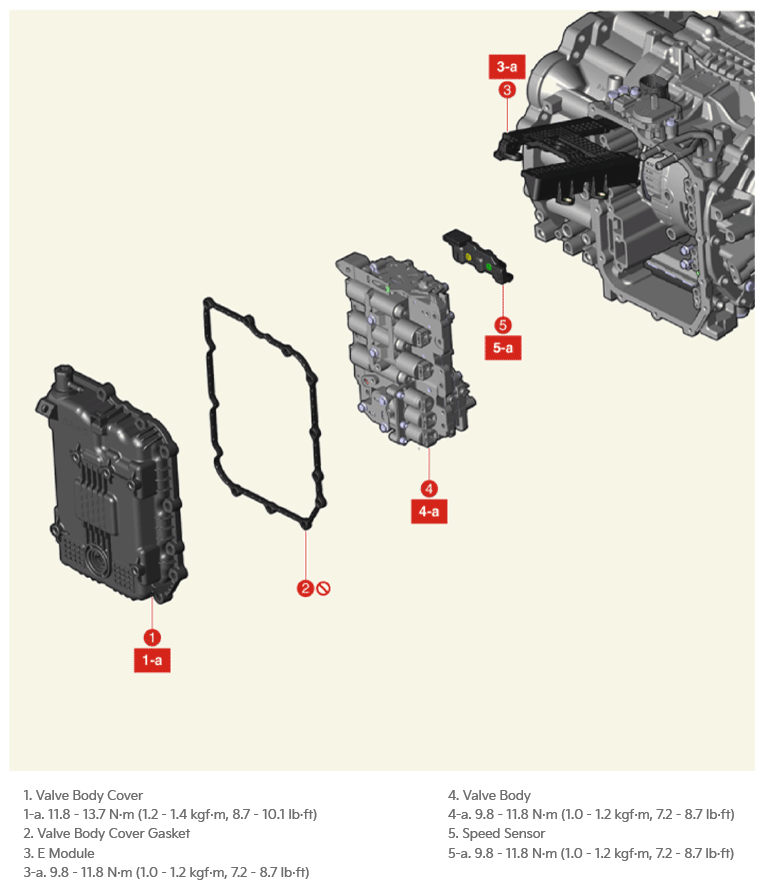

Fig 1: Speed Sensor Components Location With Torque Specifications
G16424137Courtesy of KIA MOTORS AMERICA, INC.
