Speed Sensor: Installation

Install in reverse order of removal.

NOTE:

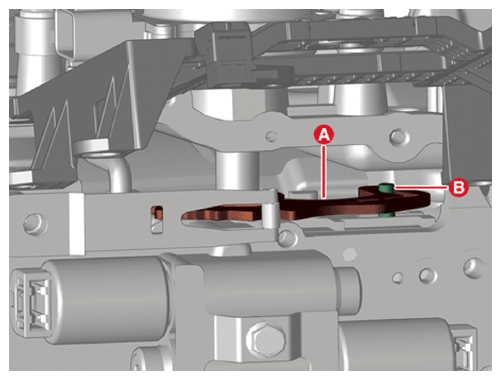

When installing the valve body, make sure that the pin (B) of the manual valve is inserted into the detent lever (A).

Courtesy of KIA MOTORS AMERICA, INC.

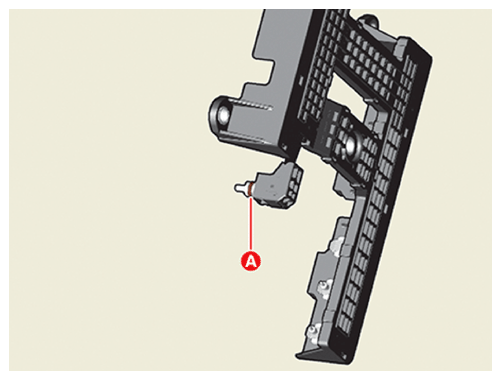

Lubricate the oil temperature sensor O-ring (A) before installing the E module.

Courtesy of KIA MOTORS AMERICA, INC.

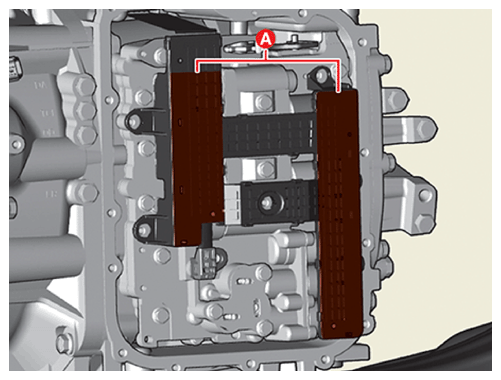

When installing, after mounting the E module, lightly tap the connector part (A) to insert the connector certainly and then tighten the bolts.

Courtesy of KIA MOTORS AMERICA, INC.

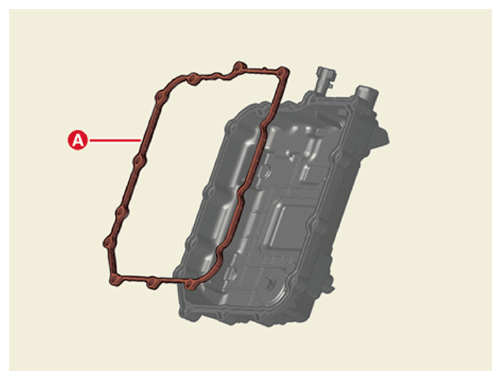

The existing valve body cover gasket (A) must be replaced with a new one (do not reuse).

Courtesy of KIA MOTORS AMERICA, INC.

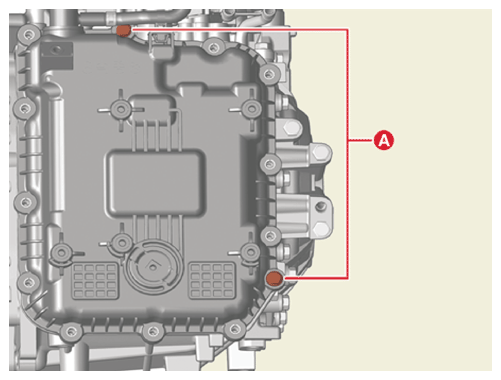

When installing the valve body cover, tighten the remaining bolt after pre-tightening the bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.

Replenish the automatic transaxle fluid.
(Refer to " HYDRAULIC SYSTEM - FLUID ")
Check for leakage of coolant or fluid from hose connection while the engine is starting and running.
