Speed Sensor: Removal

NOTE:

Maintain clean condition so that foreign substance does not get into the automatic transaxle.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substances from entering the internal part of the automatic transaxle.
Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component when assembling and disassembling.

Shift the gear to N.
NOTE: Use wheel chocks to prevent vehicle moved accidentally.
Remove the engine room under cover.
(Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")

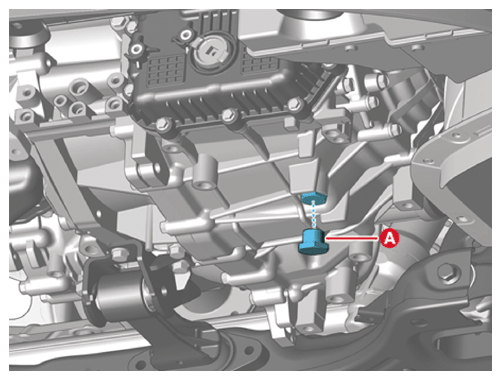

Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:

33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10 l beaker.
- The existing ATF drain plug gasket must be replaced with a new one (do not reuse).
Disconnect the battery negative (-) terminal.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - " AIR CLEANER REMOVAL & INSTALLATION ")

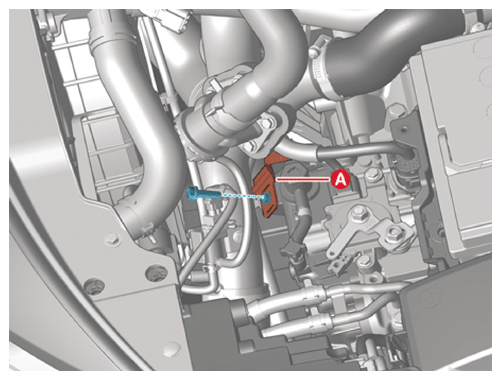

Remove the wiring bracket (A) after removing the bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

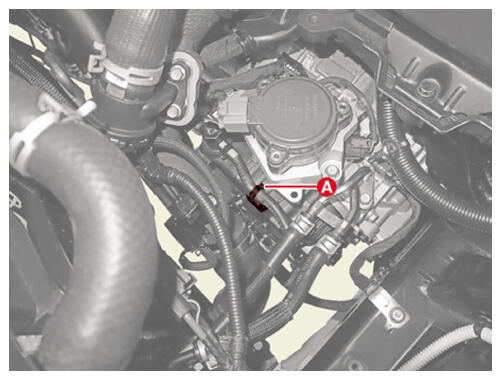

Separate the breather hose clip (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the valve body cover (A) upper bolts.
Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

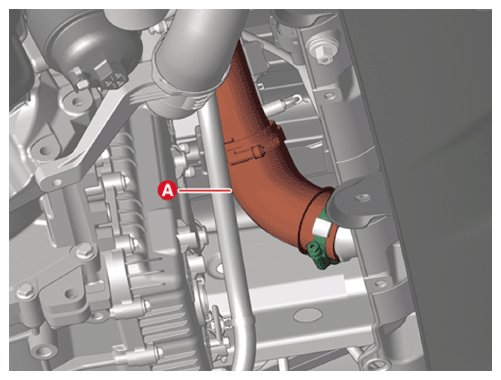

Separate the intercooler hose (A) after removing the clamp.
Tightening torque:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft, 43.4 - 60.8 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

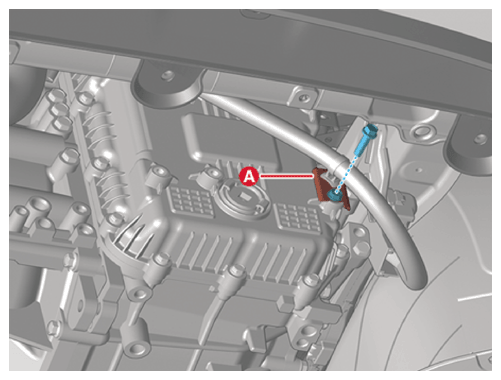

Remove the wiring bracket (A) after removing the bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

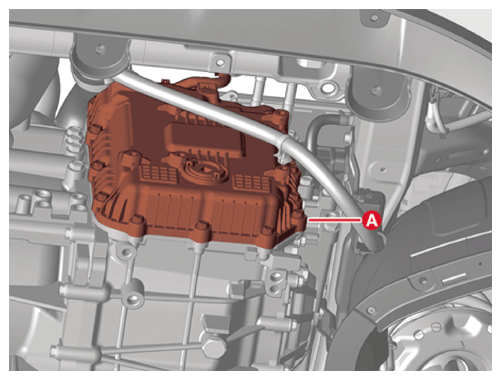

Remove the valve body cover (A) after removing the bolts.
Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to spill the remaining ATF when removing the valve body cover.

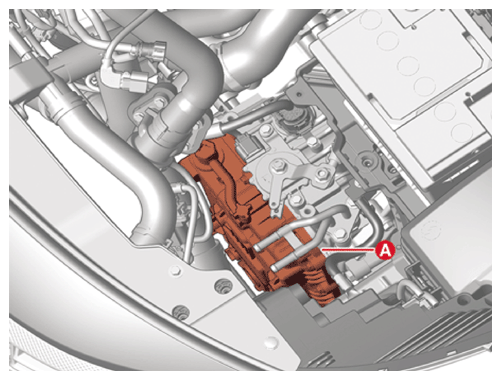

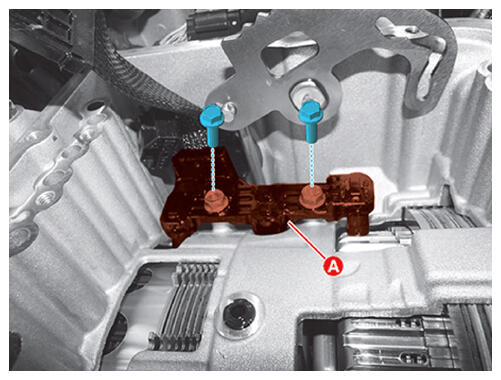

Separate the E module (A) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

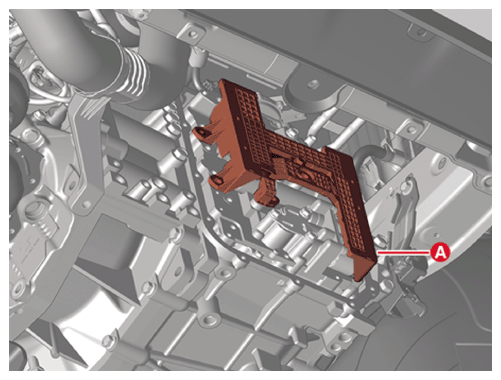

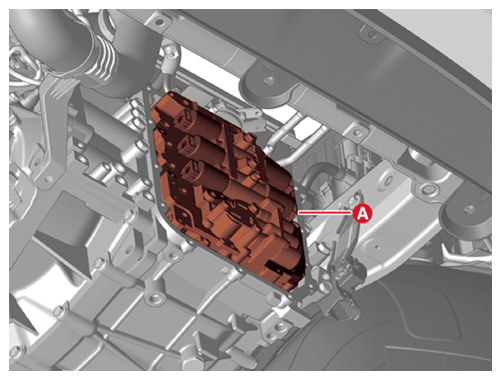

Remove the valve body assembly (A) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

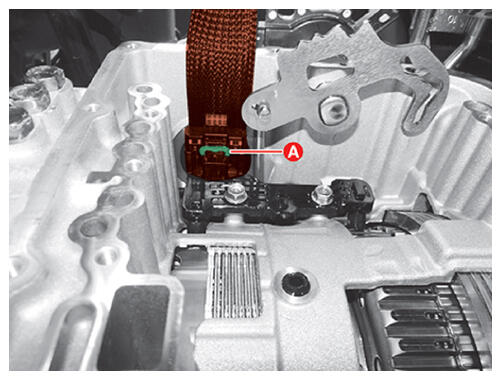

Disconnect the speed sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the speed sensor (A) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
