Removal And Installation: Installation
- Install in the reverse order of removal.NOTE:
- Install the Electronic Throttle Control (ETC) module to the specified torque.
- If ETC module is dropped, it may cause internal damage. Do not use it.

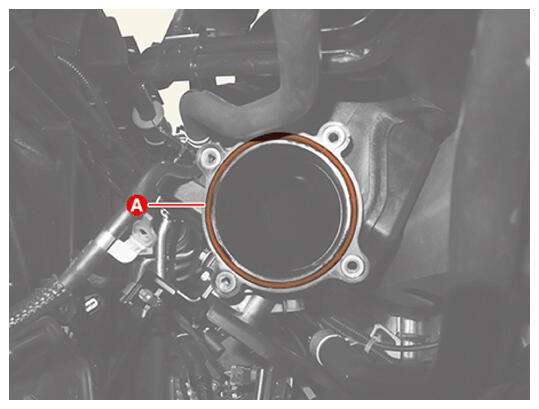

- Check the seal ring (A) installation before installing the ETC module.
- Perform the order below with the KDS.
(S/W Management → Engine Control → Resetting Adaptive Values)
Information
Refer to the KDS screen for operating conditions and details.
- Perform the ETC learning procedure.
(Refer to ETC (Electronic Throttle Control) System - " ADJUSTMENT ")
