Components Location

G15694494Courtesy of KIA MOTORS AMERICA, INC.

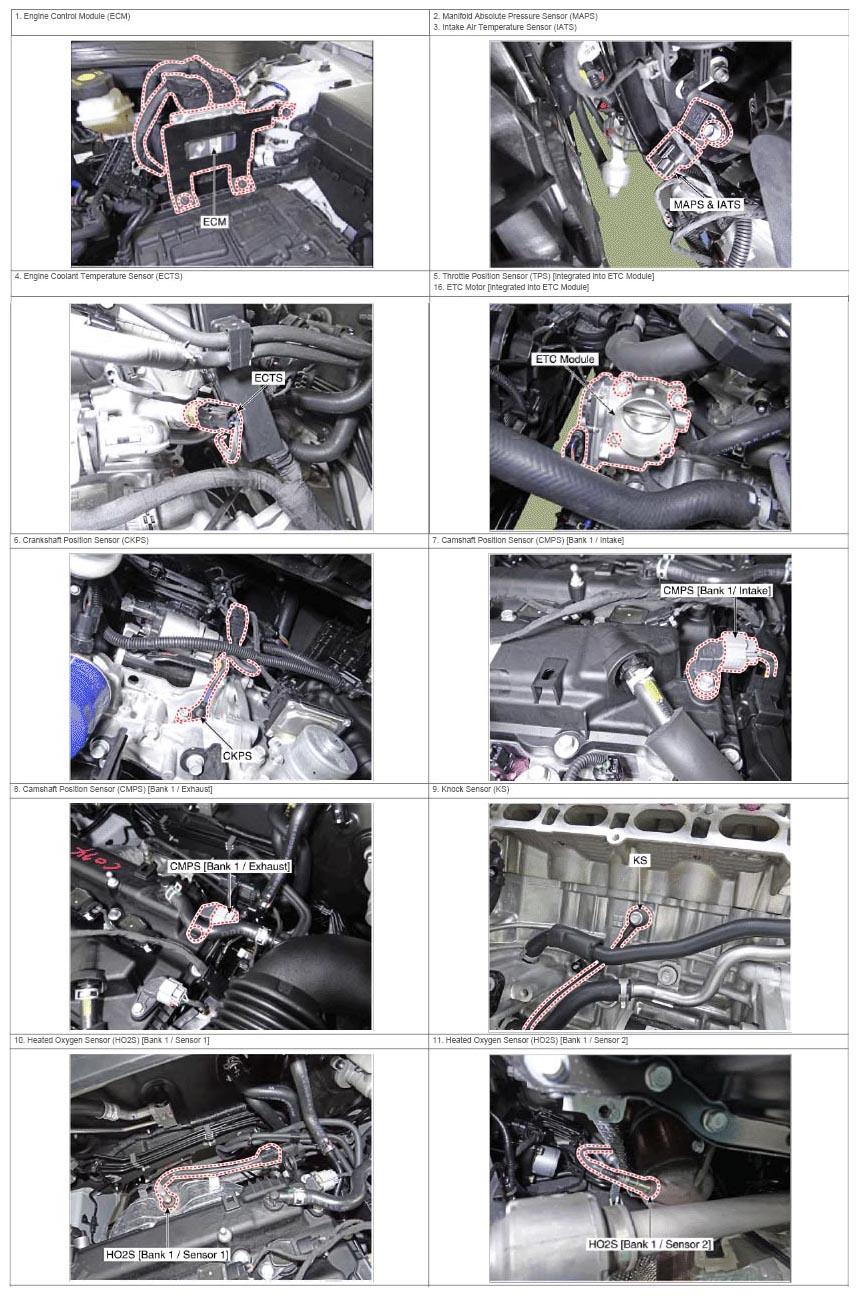

G15694495Courtesy of KIA MOTORS AMERICA, INC.

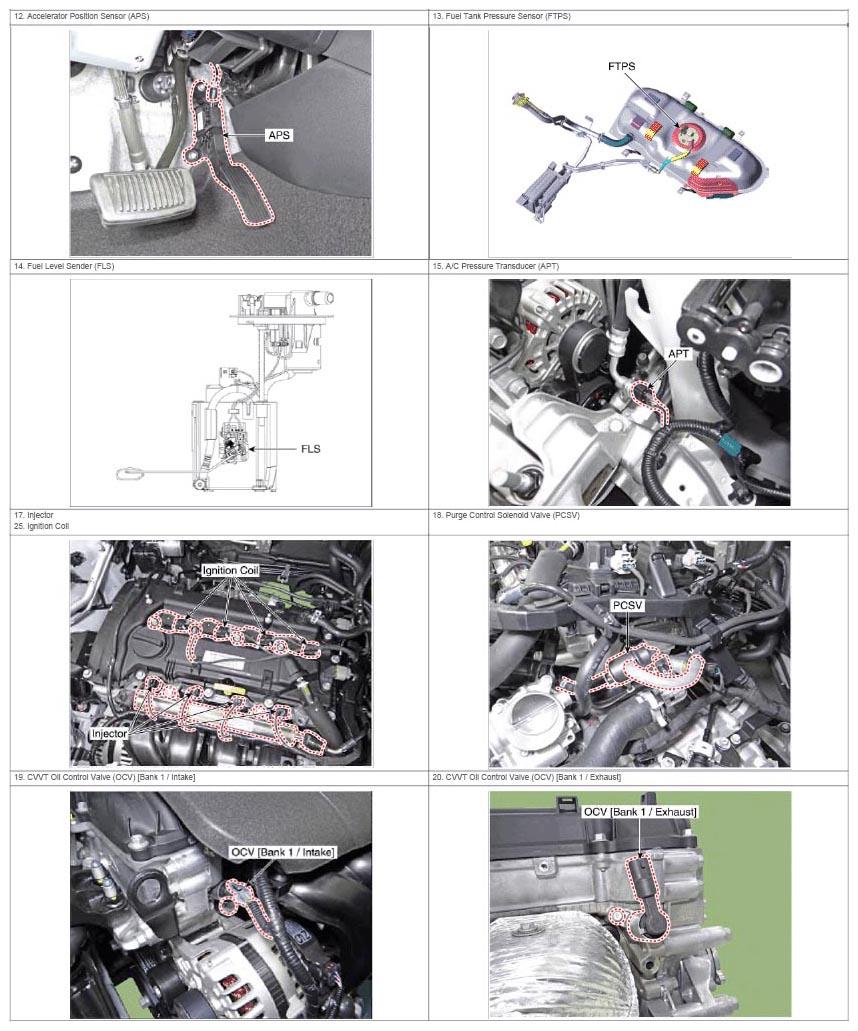

G15694496Courtesy of KIA MOTORS AMERICA, INC.

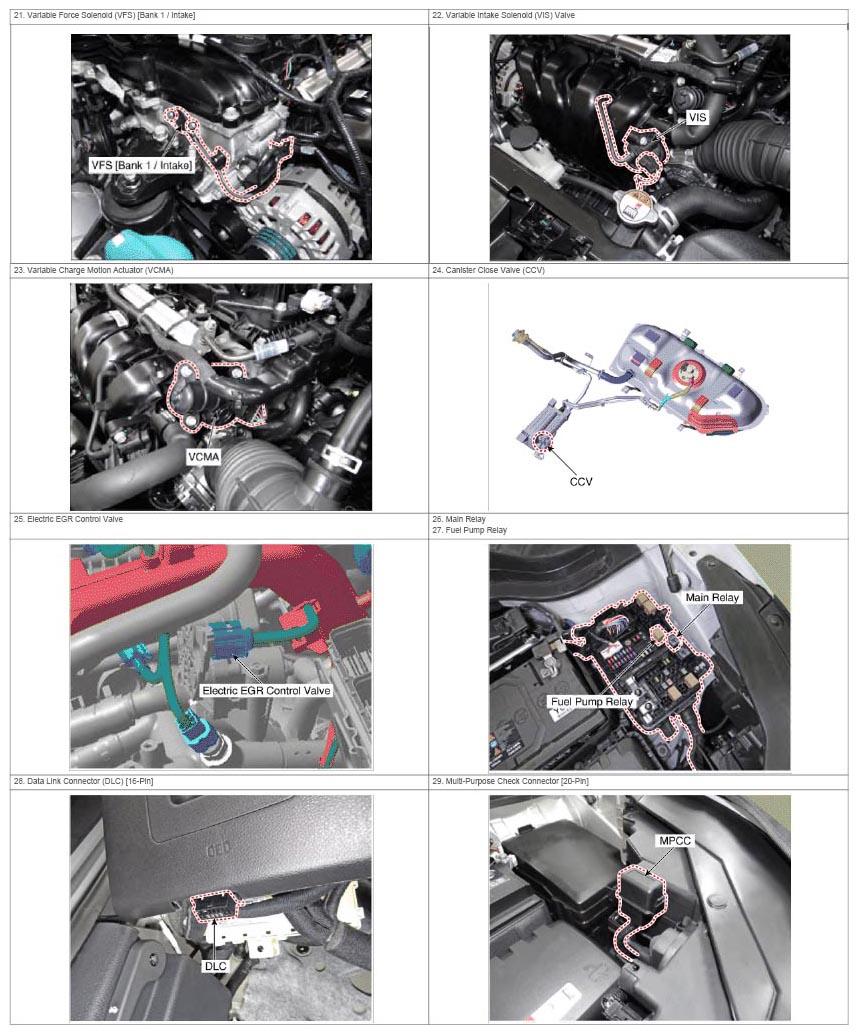

G15694497Courtesy of KIA MOTORS AMERICA, INC.
