Repair Procedures: Removal

Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Body Electrical System - "BATTERY ")

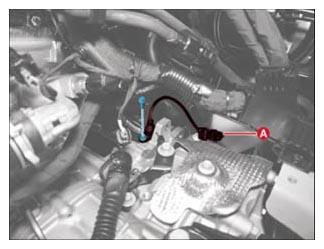

Disconnect the driven pulley speed sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

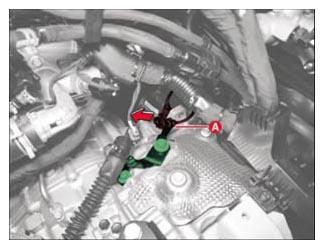

Remove the driven pulley speed sensor connector (A) from the bracket.

Courtesy of KIA MOTORS AMERICA, INC.

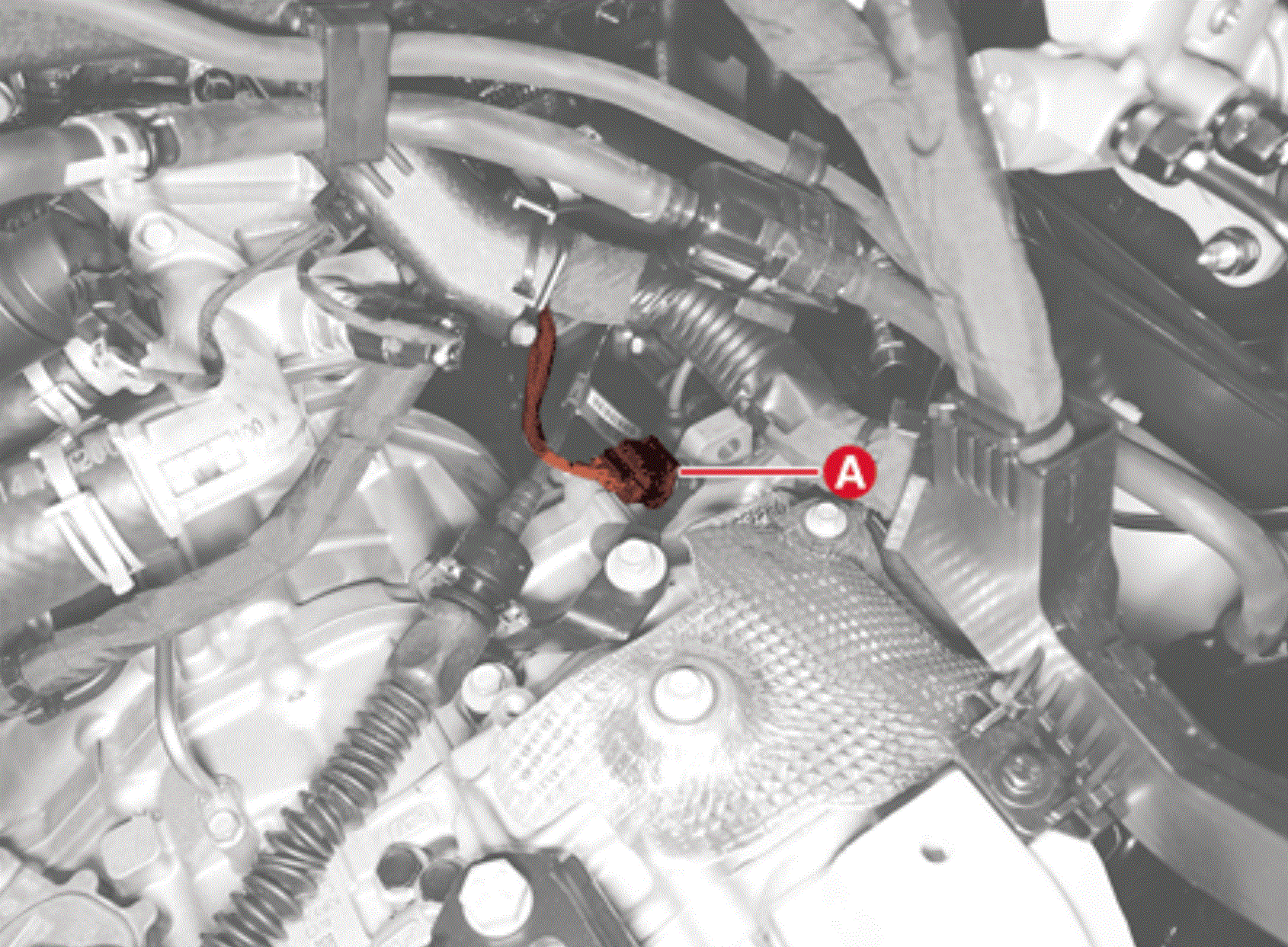

Remove the driven pulley speed sensor (A) after removing the bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
