Repair Procedures: Removal

  1. Shift the shift lever to the N range.
    NOTE: Use wheel chocks to prevent vehicle moved accidentally.
  2. Disconnect the battery negative (-) terminal.
  3. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

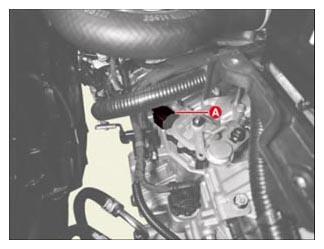

  4. Disconnect the position switch connector (A).
    G15694670Courtesy of KIA MOTORS AMERICA, INC.

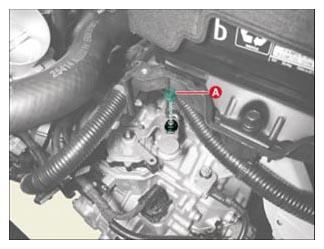

  5. Remove the shift cable after removing the nut (A).
    G15694671Courtesy of KIA MOTORS AMERICA, INC.

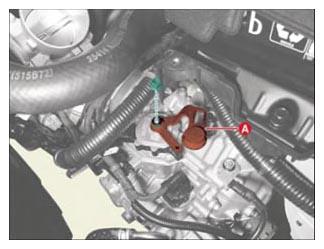

  6. Remove the manual control lever (A) and the washer after removing the nut.
    G15694672Courtesy of KIA MOTORS AMERICA, INC.

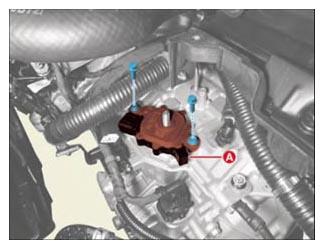

  7. Remove the position switch (A) after removing the bolts.
G15694673Courtesy of KIA MOTORS AMERICA, INC.
