Electrical Symbols


Electrical Symbols

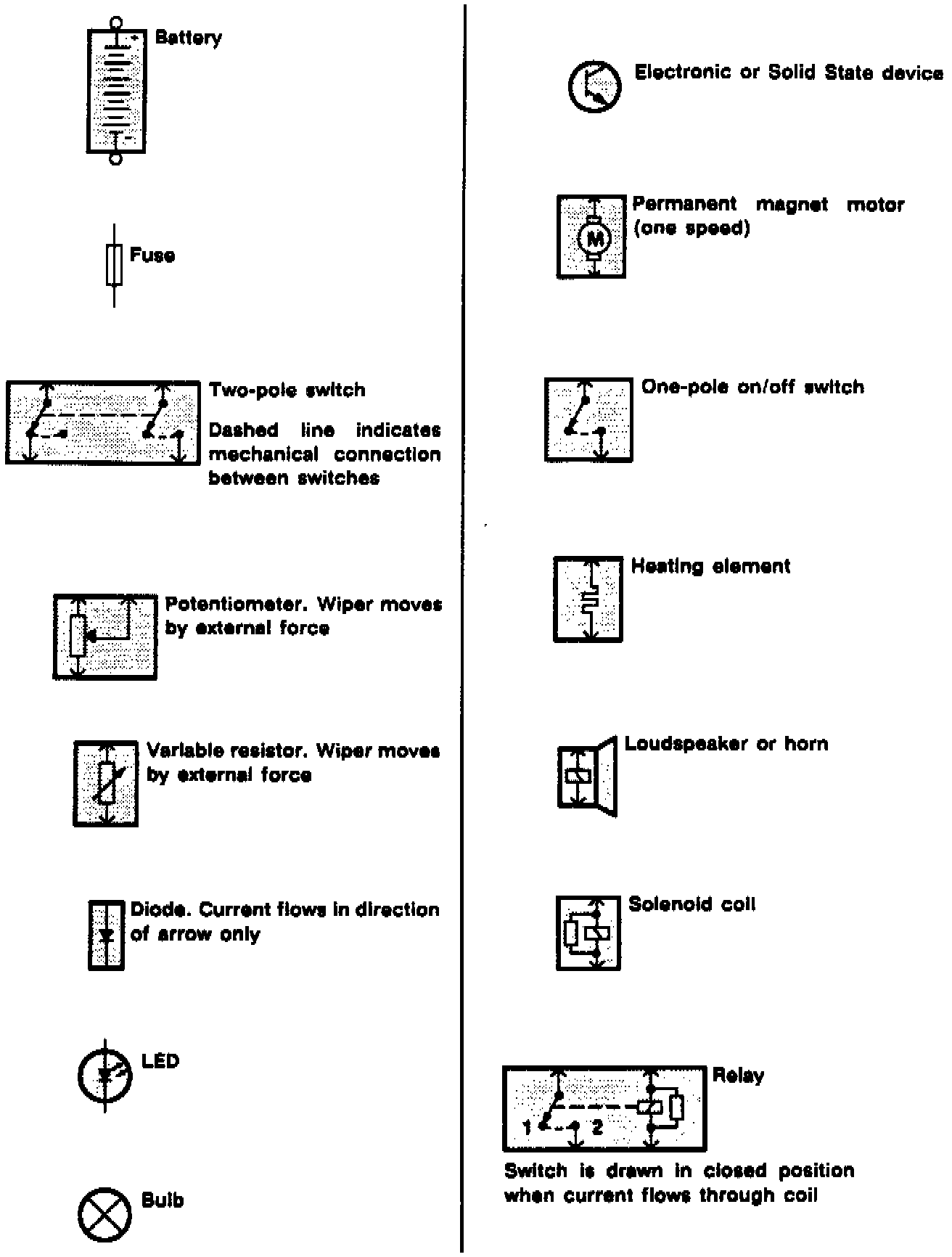

Electrical Symbols 1 of 5:





Part 1 of 5

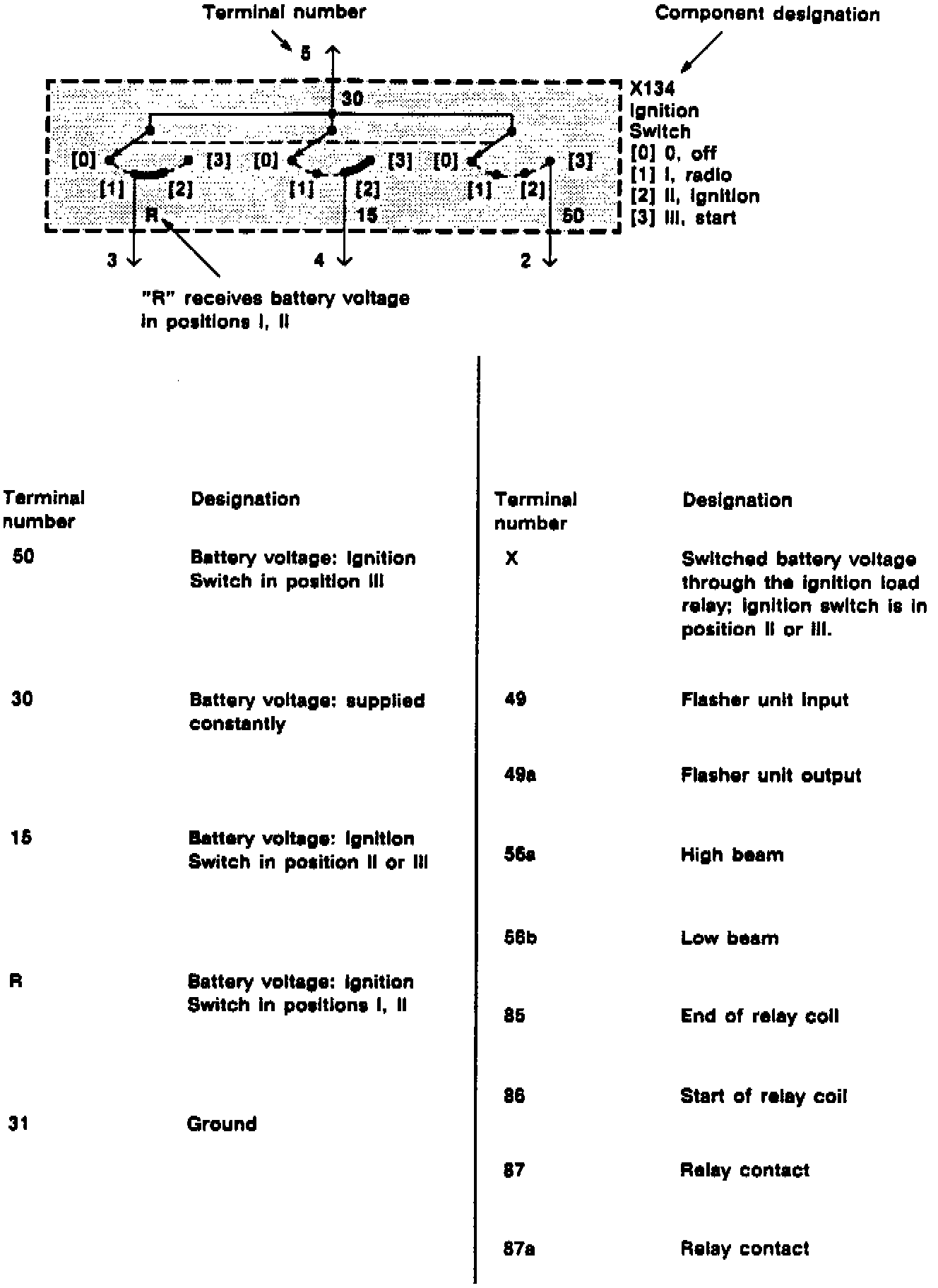

Electrical Symbols 2 of 5:





Part 2 of 5

Electrical Symbols 3 of 5:





Part 3 of 5

Electrical Symbols 4 of 5:





Part 4 of 5

Electrical Symbols 5 of 5:





Part 5 of 5
