Firing Order & Spark Plug Wire Routing

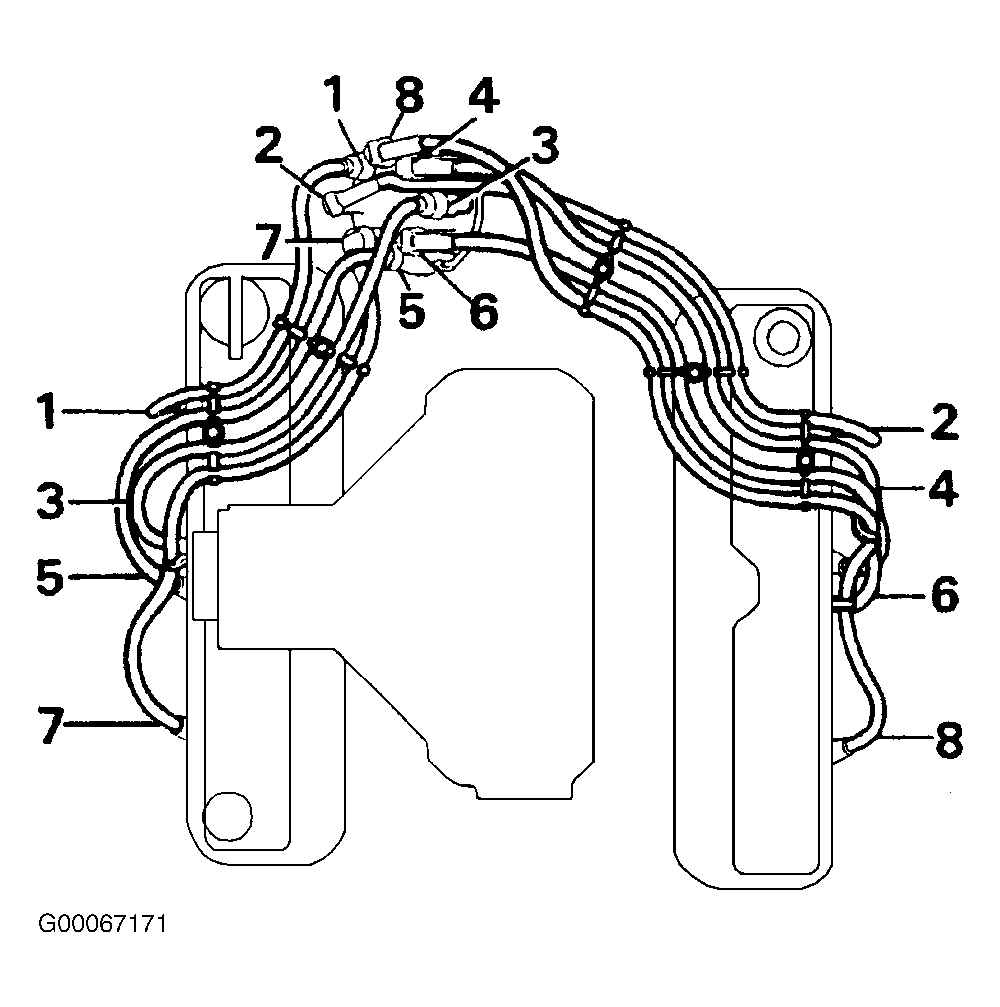

Fig 1: Firing Order & Spark Plug Wire Routing - 3.9L V8
G00067171Courtesy of LAND ROVER NORTH AMERICA, INC.
