Fuel Injector Leakage

To test fuel injector leakage, see Fig 1 or Fig 2 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.

Fig 1: Fuel Injector Leakage Test Procedure No. 19 (1987-88)

Courtesy of LAND ROVER NORTH AMERICA, INC.

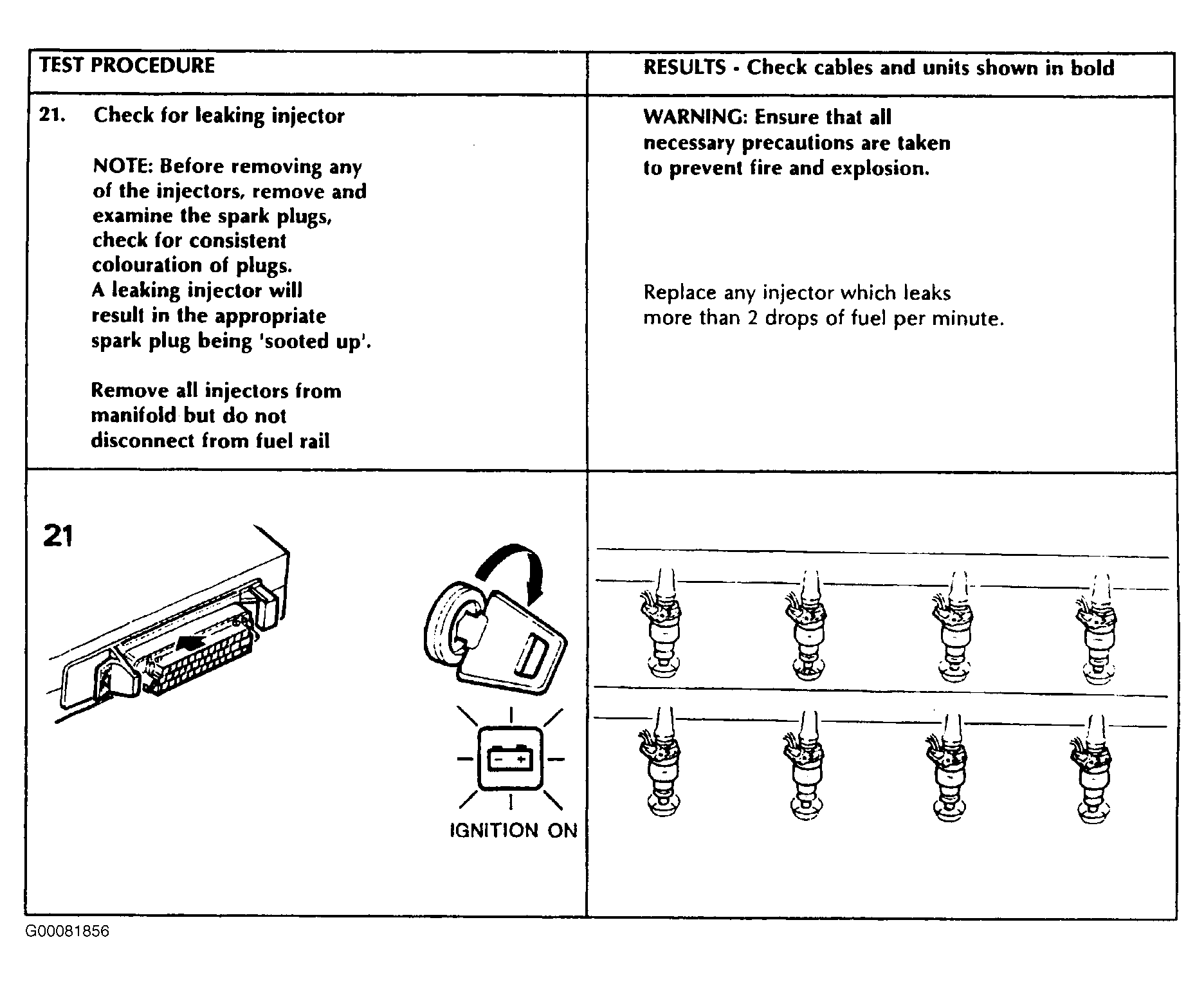

Fig 2: Fuel Injector Leakage Test Procedure No. 21 (1989-91)

Courtesy of LAND ROVER NORTH AMERICA, INC.
