Repair and Diagnosis: Electrical: Starters: Testing: Brushes

Check brush springs and ensure brushes move freely in their holders. See Fig 1 . Clean brushes with a solvent moistened cloth, if required. Brush length new is dimension "A" 9mm (.354"). Minimum brush length, dimension "B" is 3.5mm (.138").

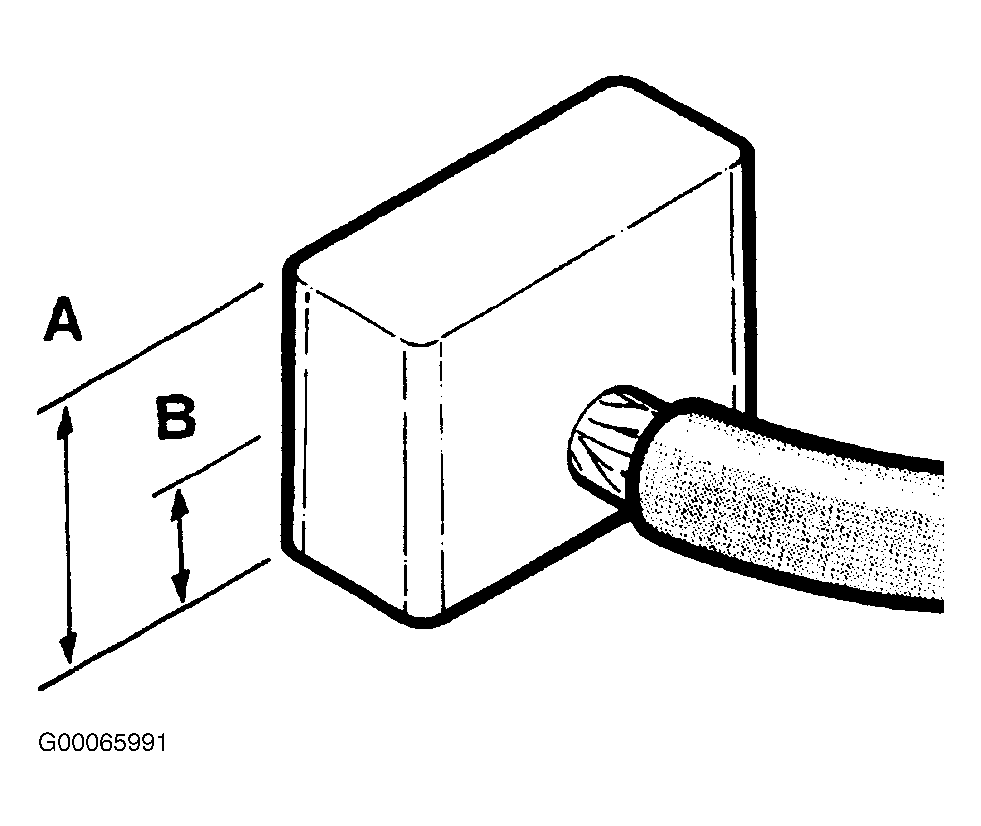

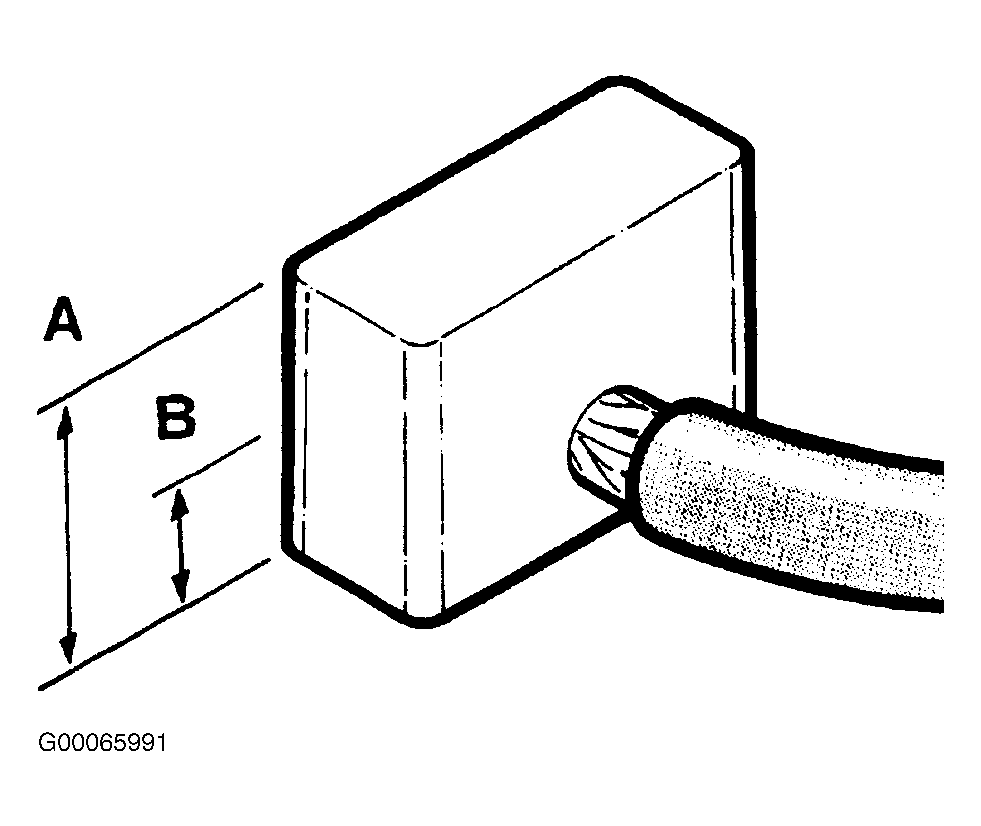

Fig 1: Measuring Brush Length

Courtesy of LAND ROVER NORTH AMERICA, INC.
