Firing Order

Firing order is 1-8-4-3-6-5-7-2. See Fig 1 and Fig 2 .

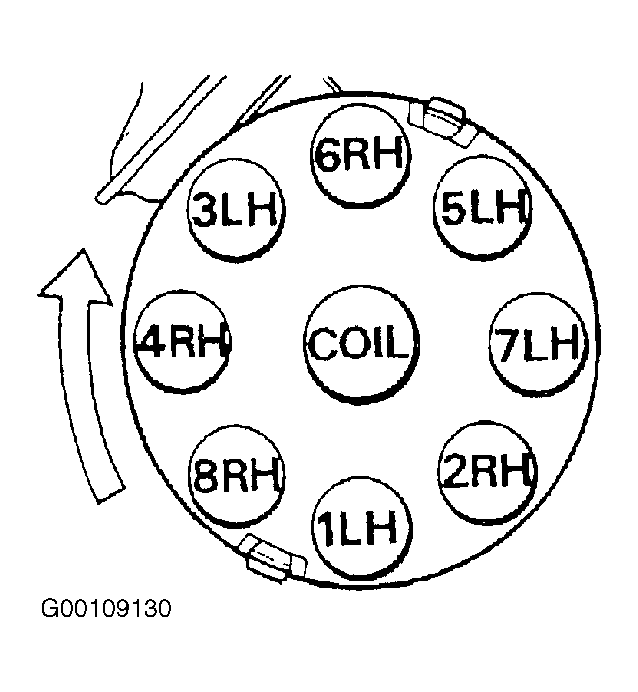

Fig 1: Identifying Distributor Rotation & Firing Order
G00109130Courtesy of LAND ROVER NORTH AMERICA, INC.

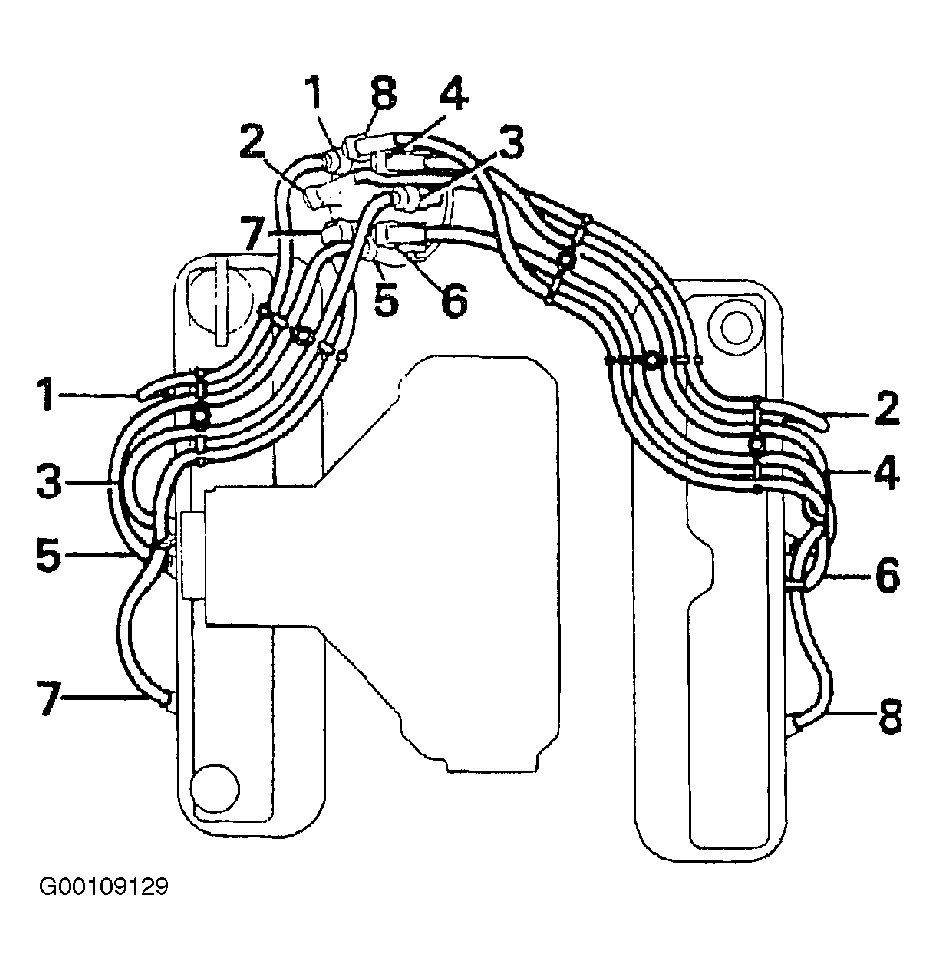

Fig 2: Identifying Spark Plug Wire Routing
G00109129Courtesy of LAND ROVER NORTH AMERICA, INC.
