Code 15: Fuel Temperature Sensor
NOTE:
Use continuity test guide for symbol reference. See Figure
.

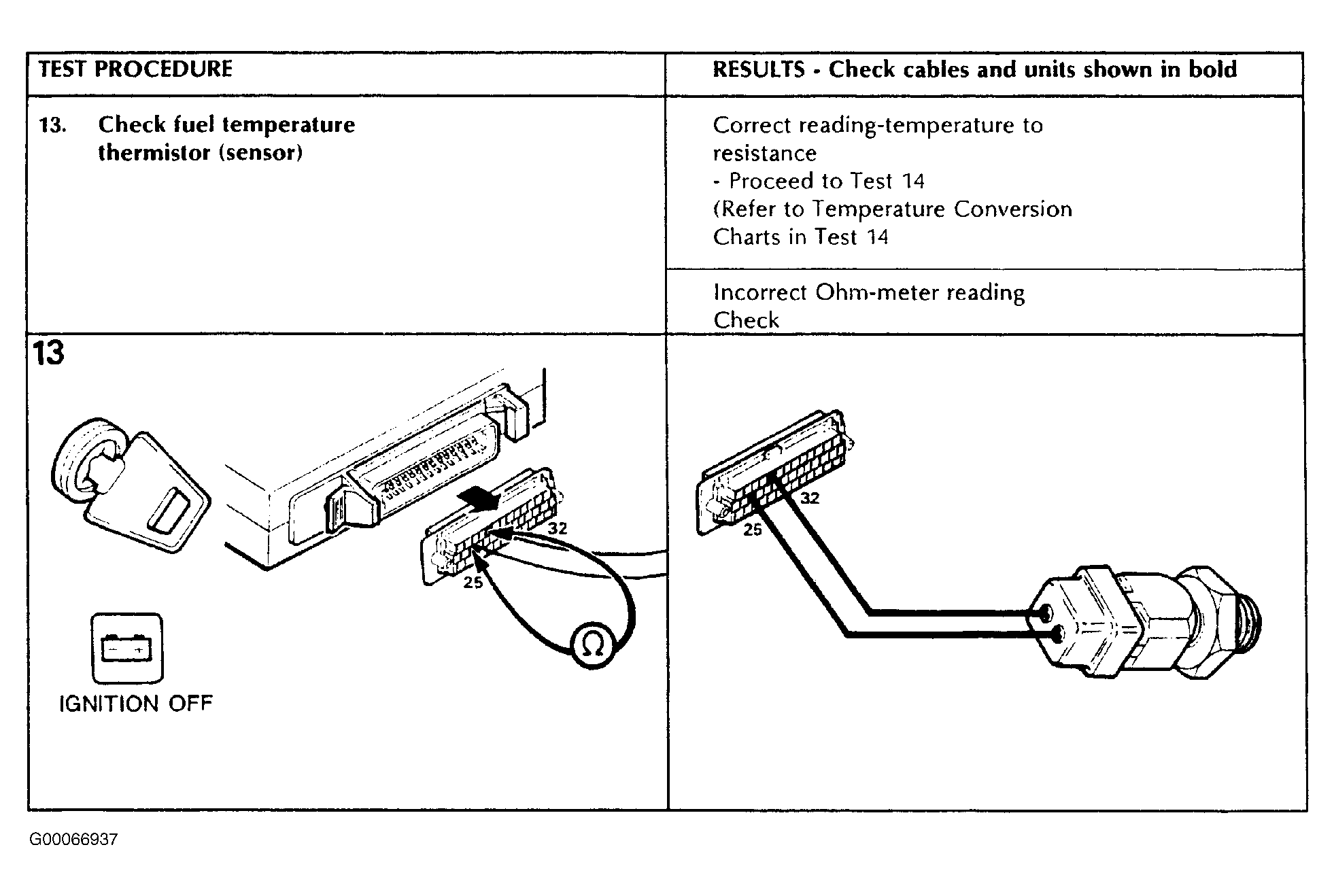

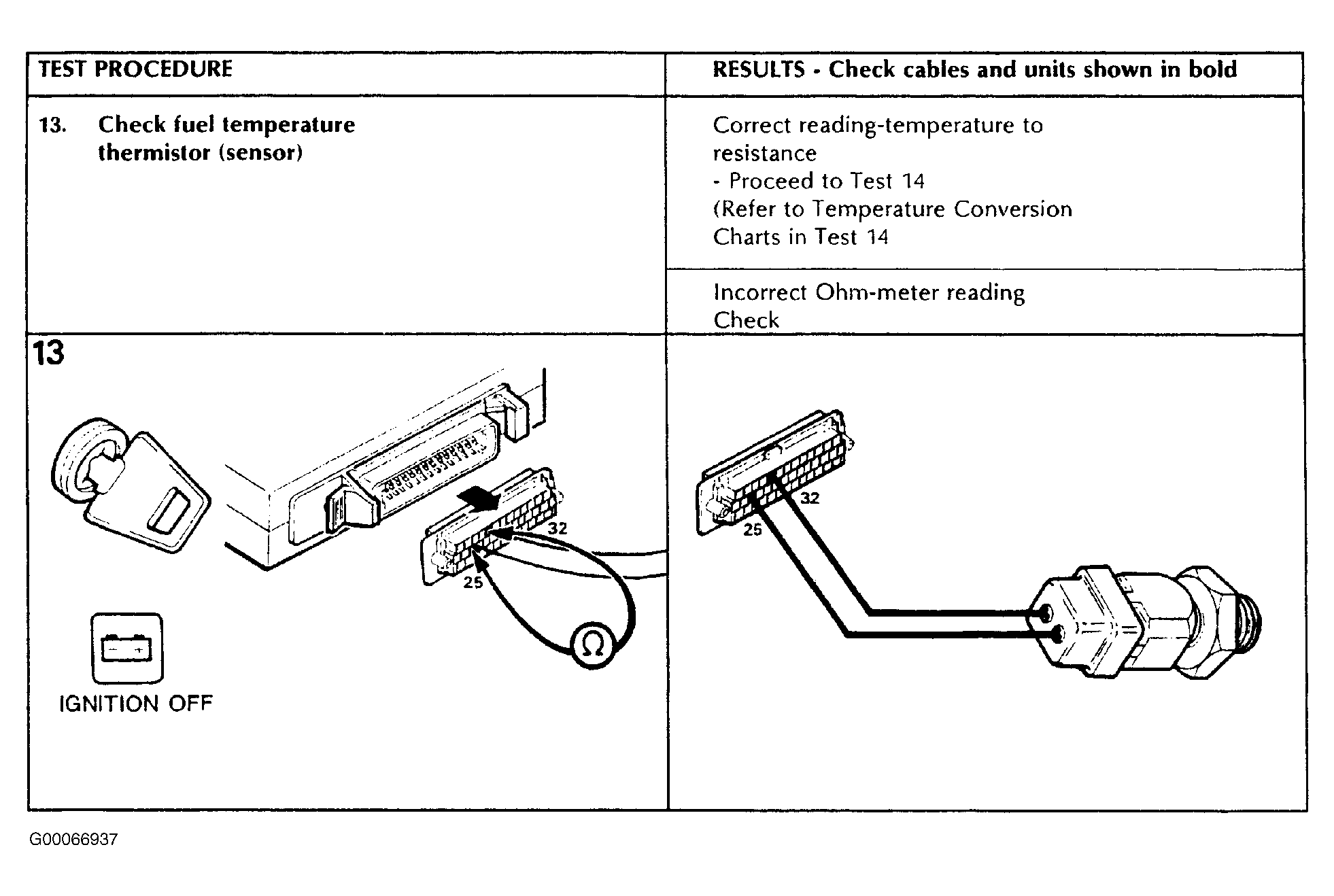

Test fuel temperature sensor, see Fig 1 . See appropriate WIRING DIAGRAMS article. After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas Diagnostic Equipment or Test Book.
