Code 17: Throttle Position Sensor

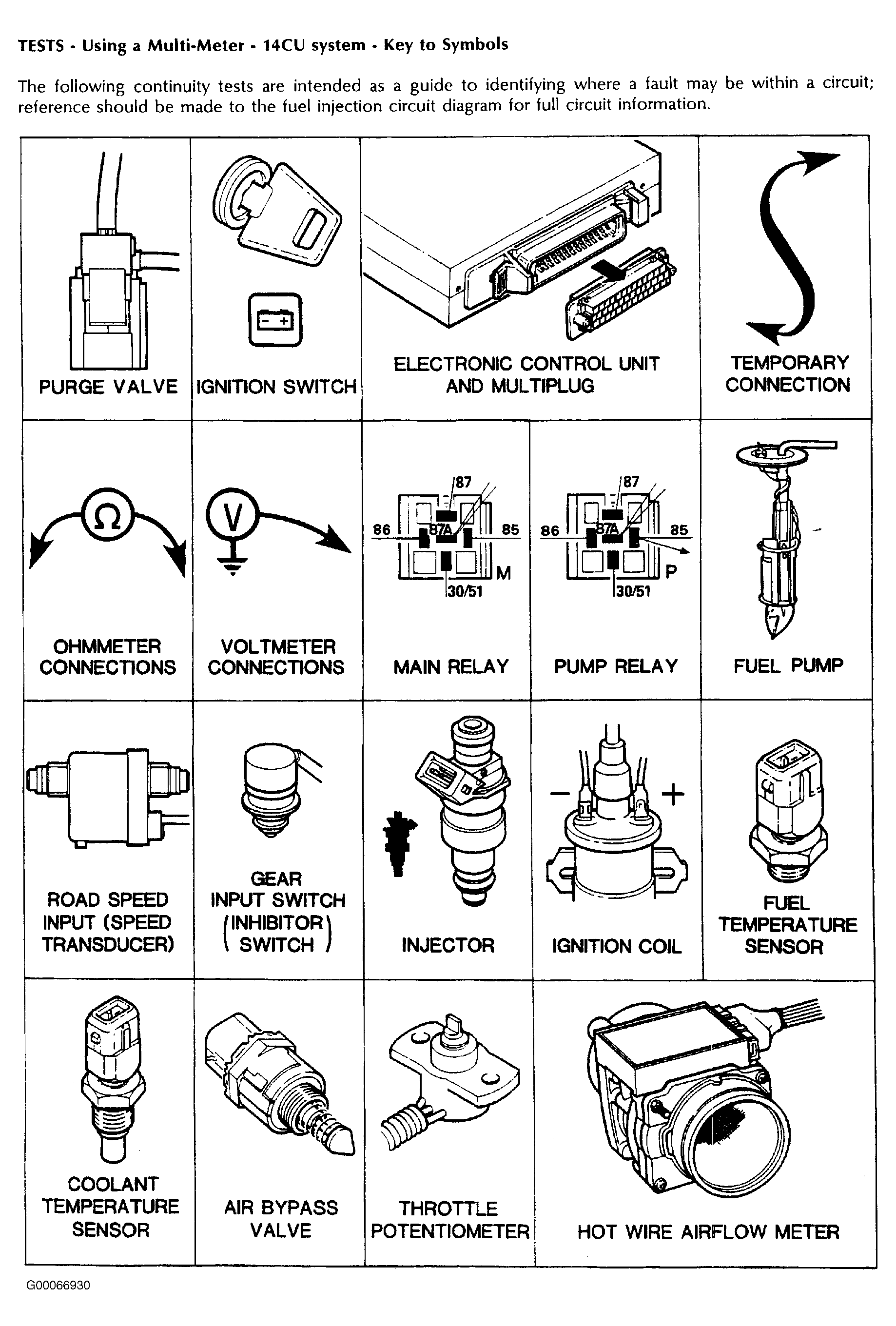

NOTE: Use continuity test guide for symbol reference. See Figure .

Test throttle position sensor, see Fig 1 . See appropriate WIRING DIAGRAMS article. After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas Diagnostic Equipment or Test Book.

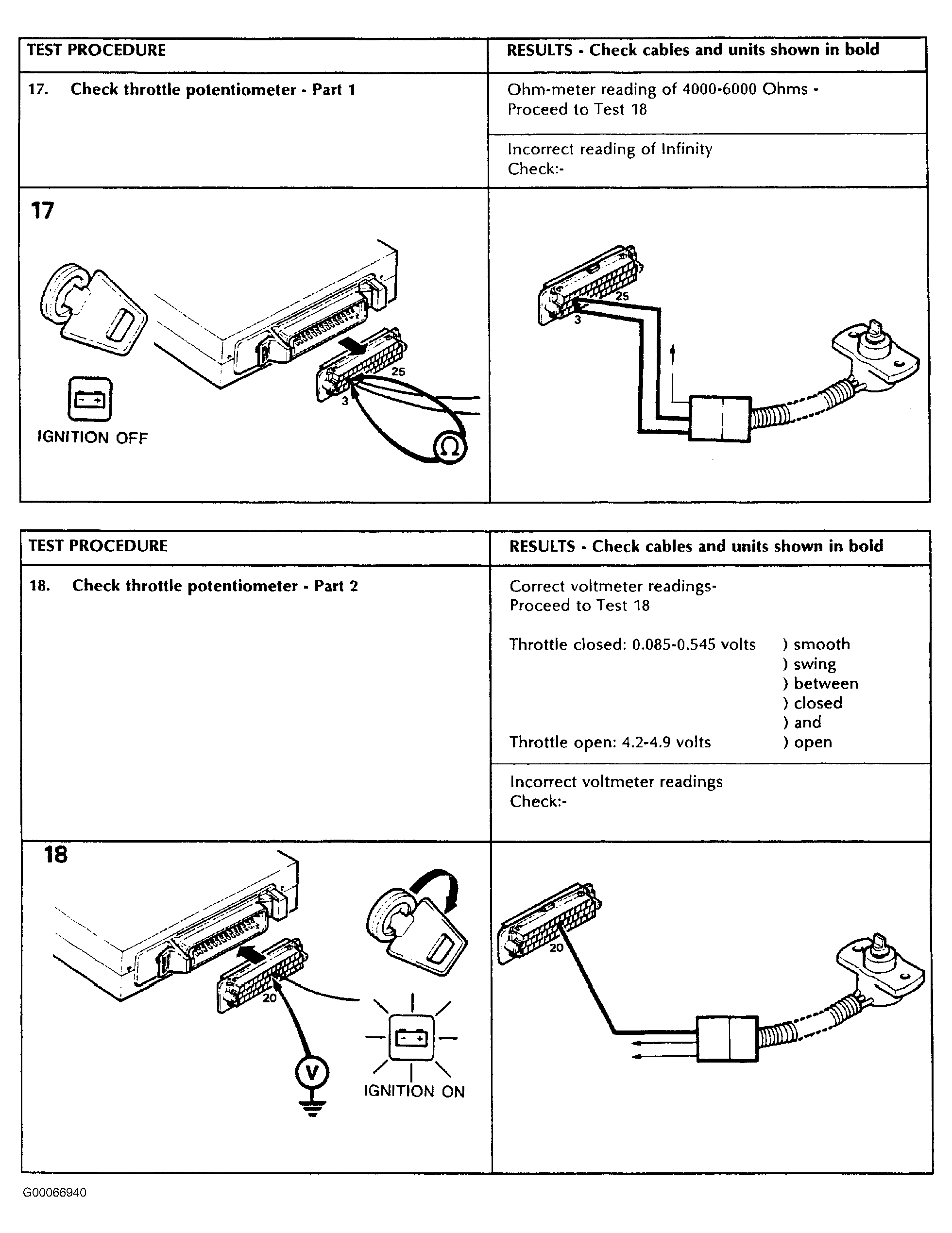

Fig 1: Throttle Position Sensor (Test Procedures No. 17 & 18)

Courtesy of LAND ROVER NORTH AMERICA, INC.
