Power Circuits

To test Powertrain Control Module (PCM) power circuits, see Fig 1 or Fig 2 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.

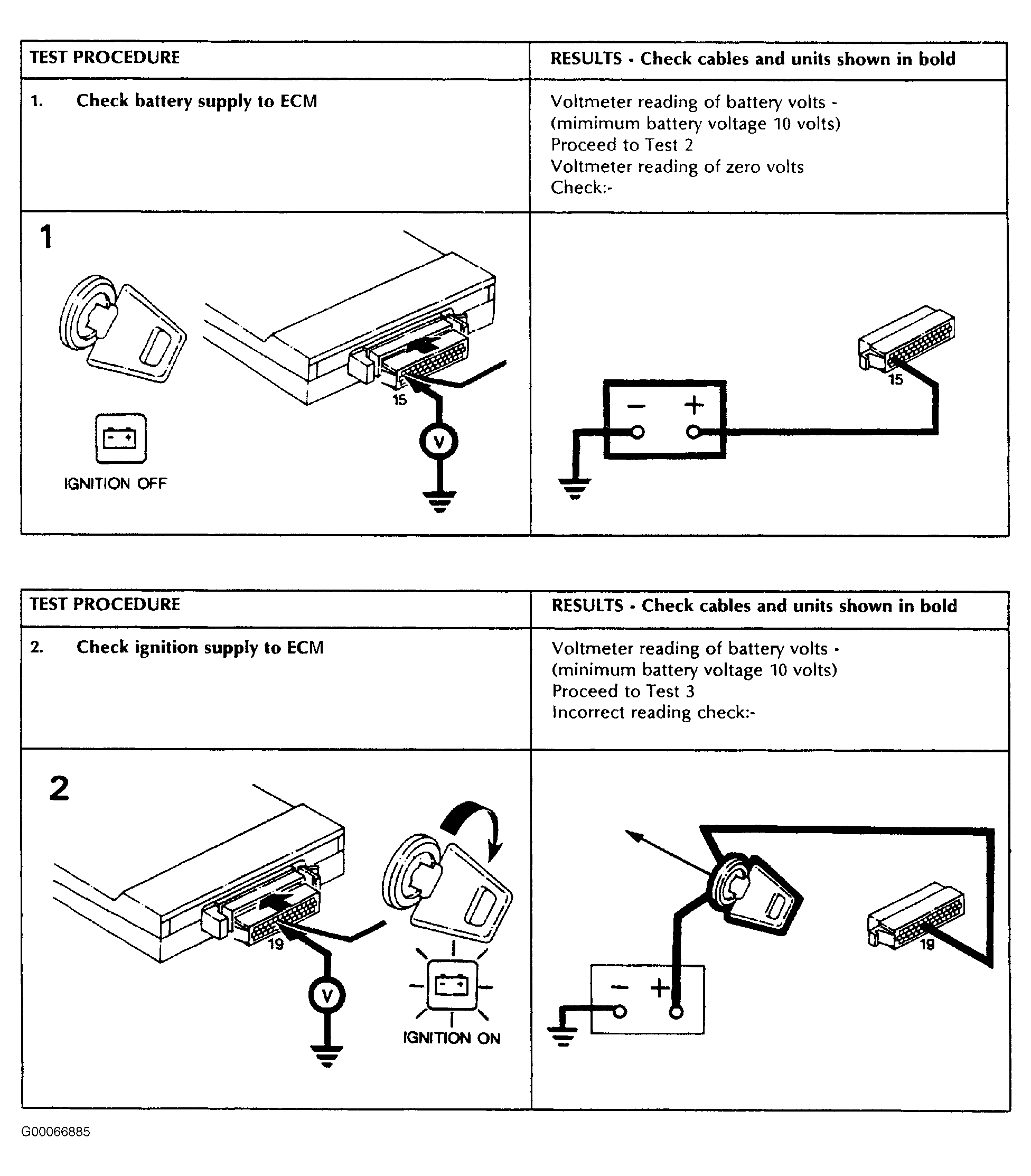

Fig 1: Engine Control Module Power Circuits Test Procedure No. 1 & 2 (1987-88)

Courtesy of LAND ROVER NORTH AMERICA, INC.

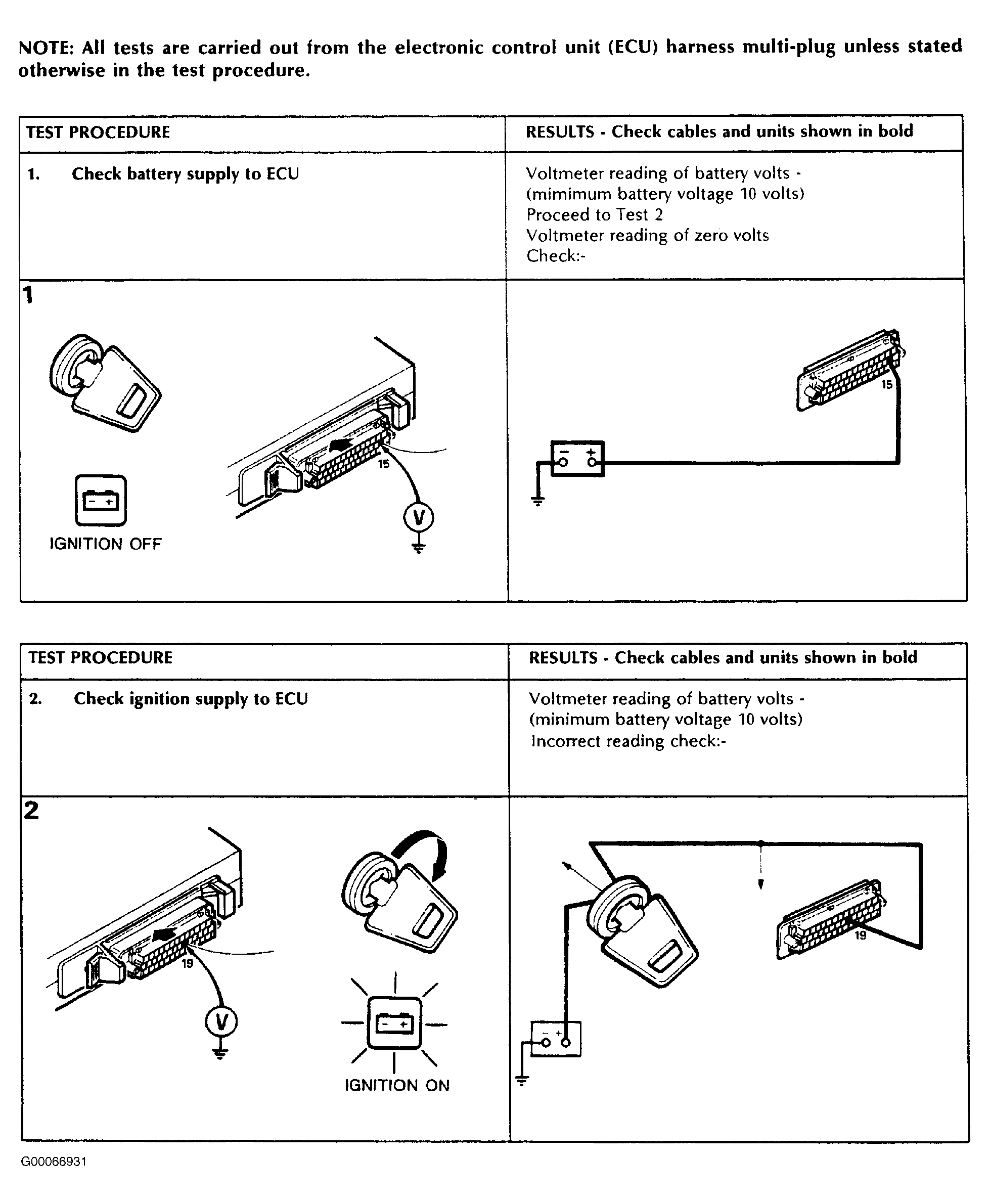

Fig 2: Engine Control Module Power Circuits Test Procedure No. 1 & 2 (1989-91)

Courtesy of LAND ROVER NORTH AMERICA, INC.
