Tune Select Resistor Test (1990-91)

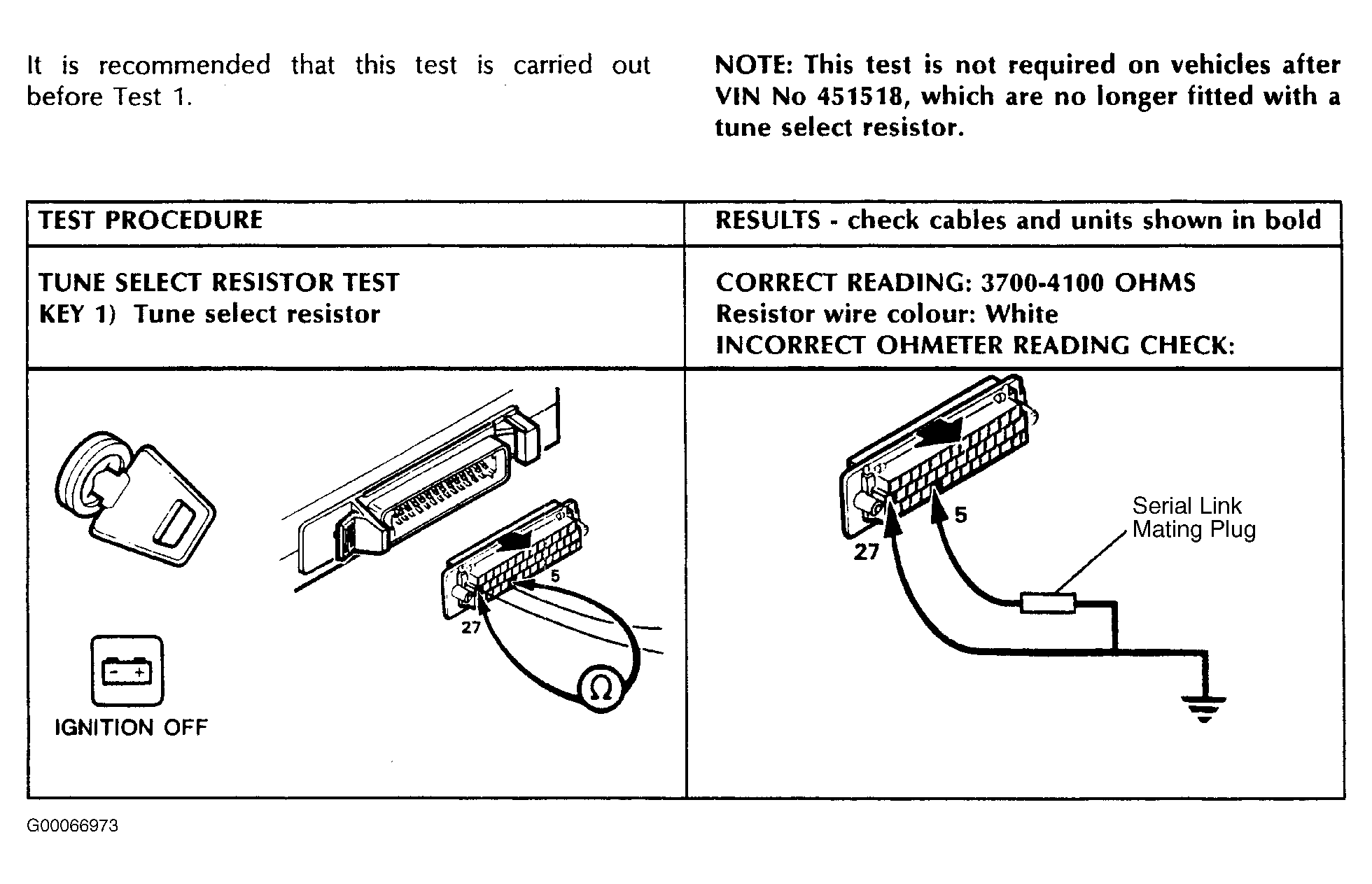

Fig 1: Tune Select Resistor Test (1990-91)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
