Mass Airflow Sensor
NOTE:
Use continuity test guide for symbol reference. See Figure
or Figure
.

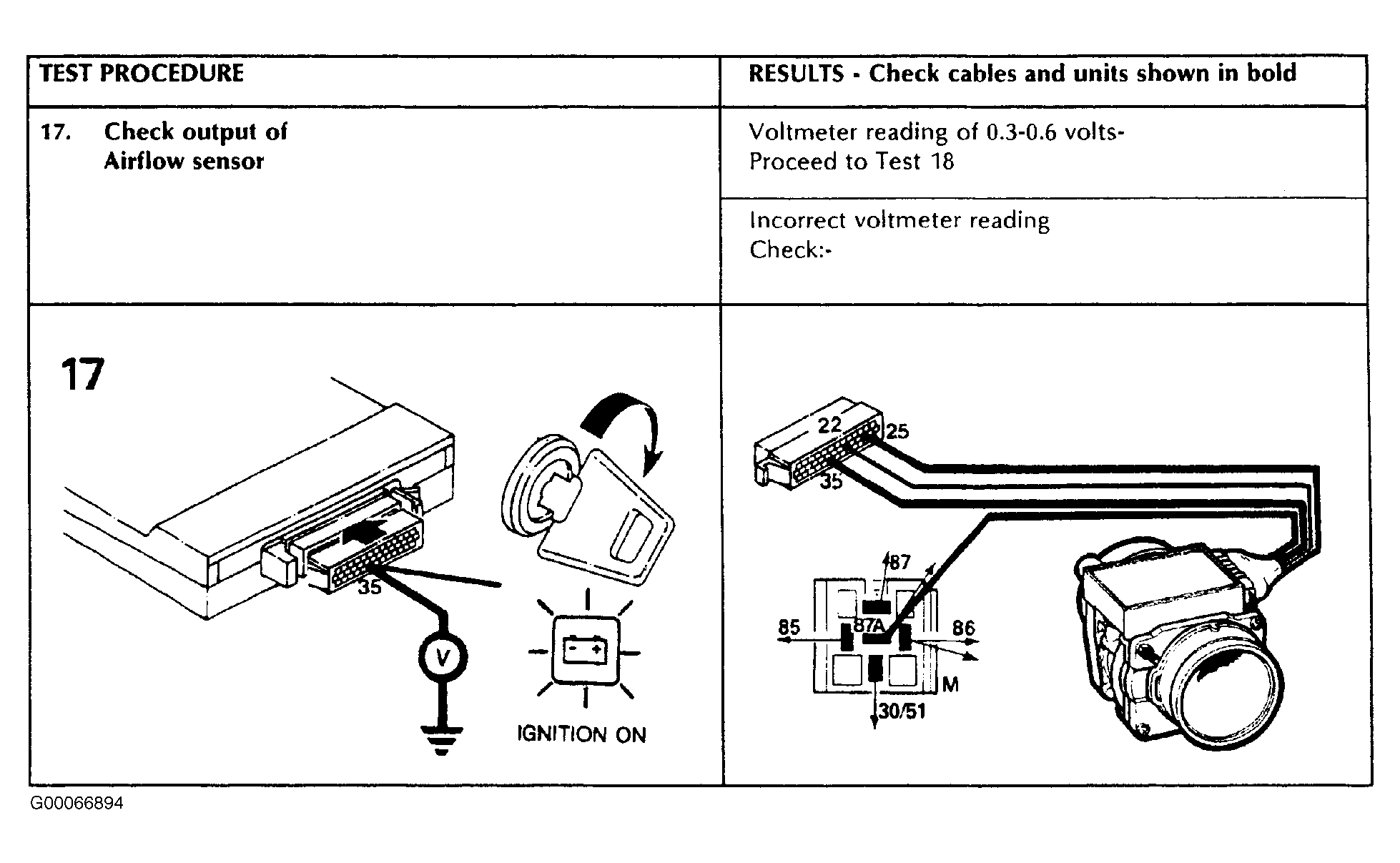

To test mass air flow sensor, see Fig 1
or Fig 2
. After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
