Fuel Injector Volume

To test fuel injector volume, see Fig 1Fig 2 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.

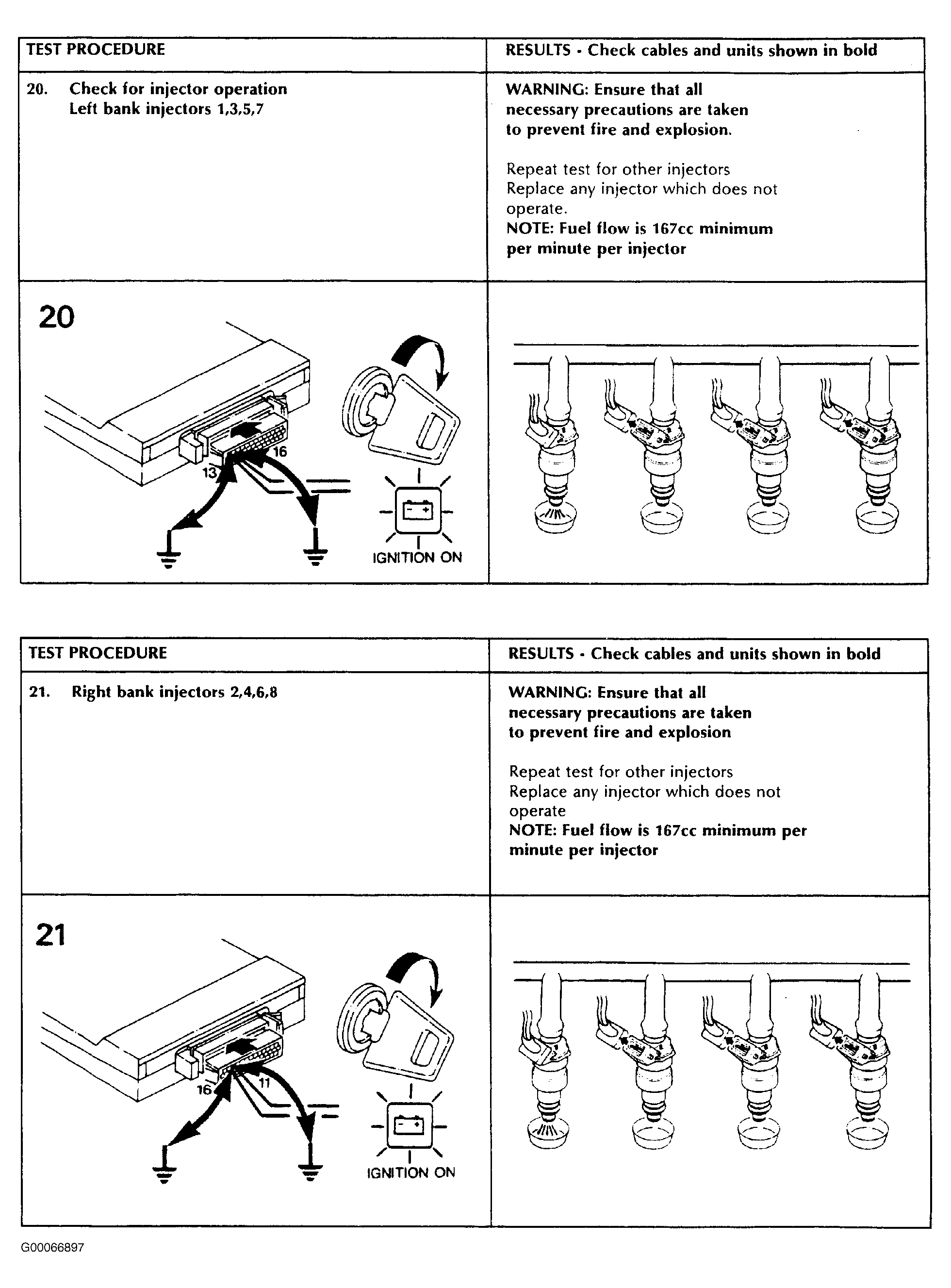

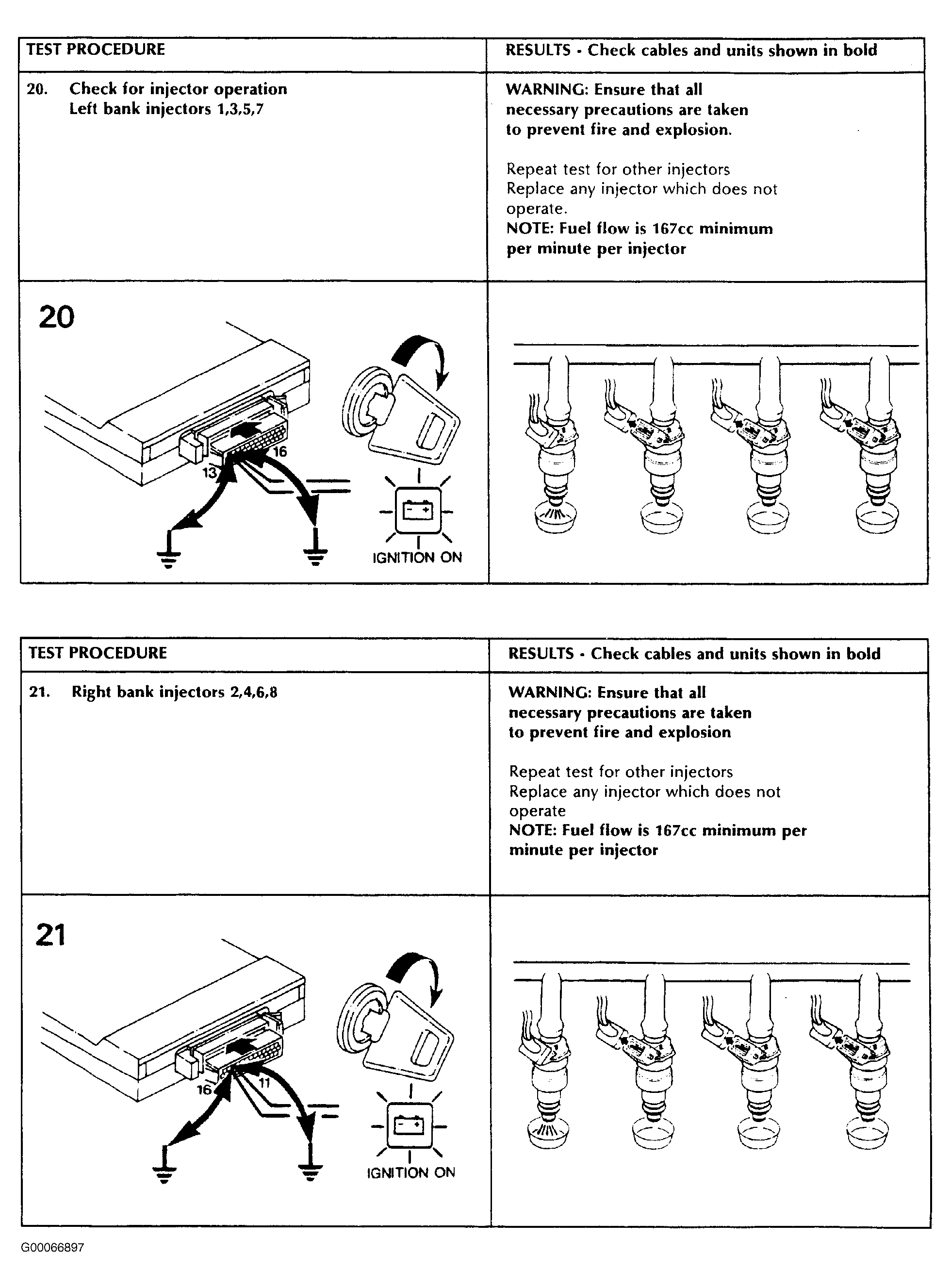

Fig 1: Fuel Injector Volume Test Procedure No. 20 & 21 (1987-88)

Courtesy of LAND ROVER NORTH AMERICA, INC.

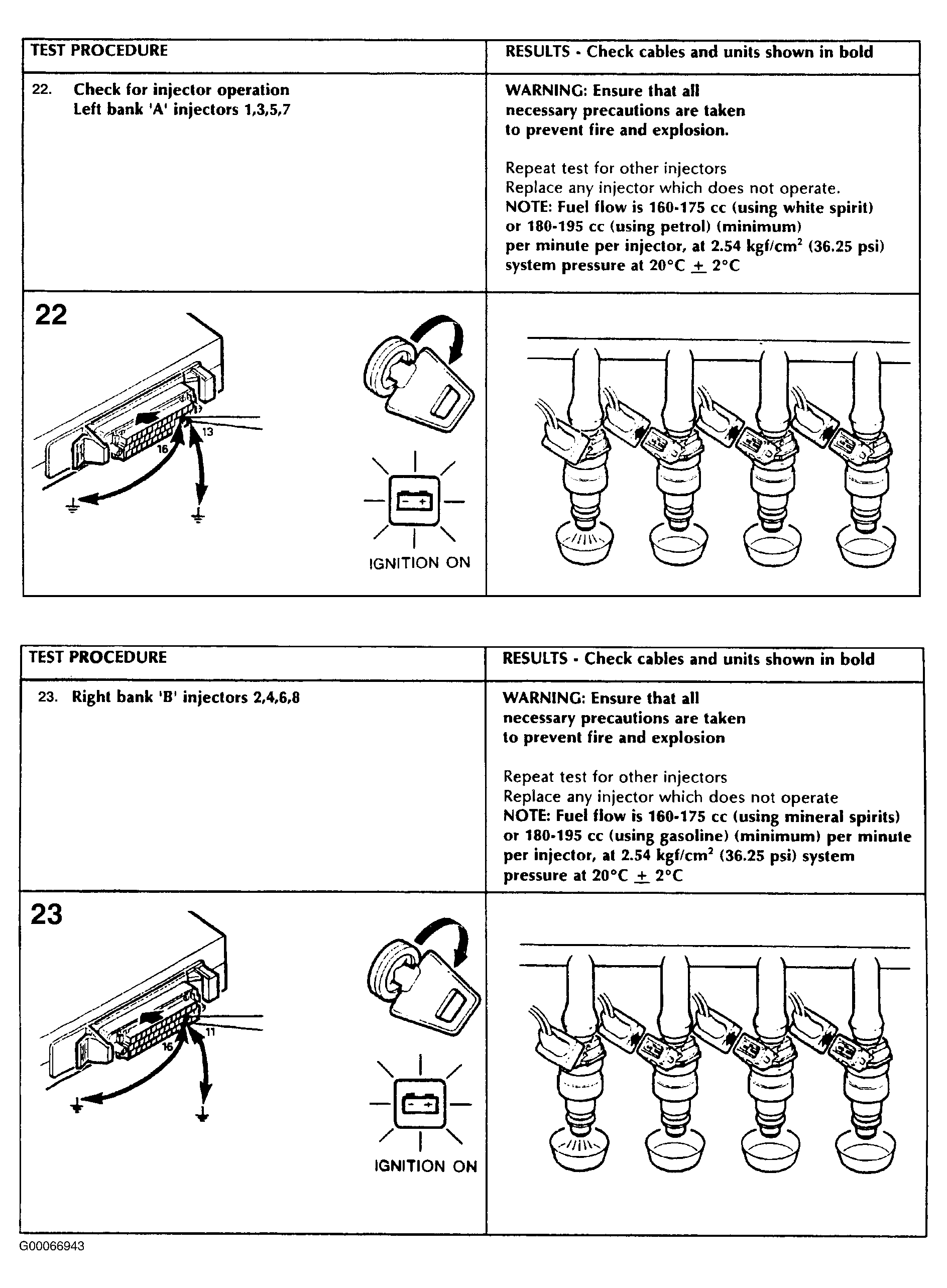

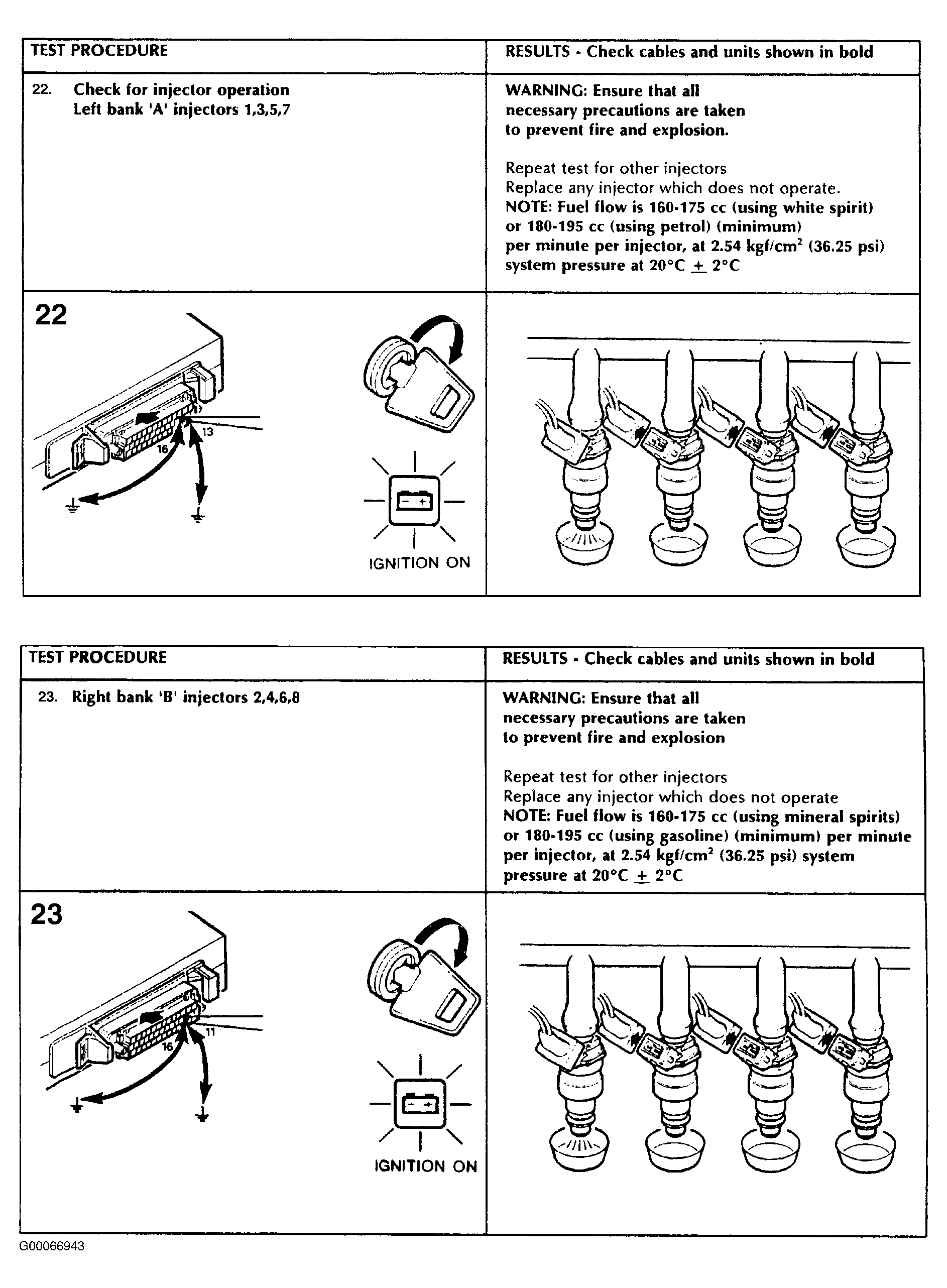

Fig 2: Fuel Injector Volume Test Procedure No. 22 & 23 (1989-91)

Courtesy of LAND ROVER NORTH AMERICA, INC.
