Fuel Injectors

To test fuel injectors, see Fig 1 or Fig 2 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.

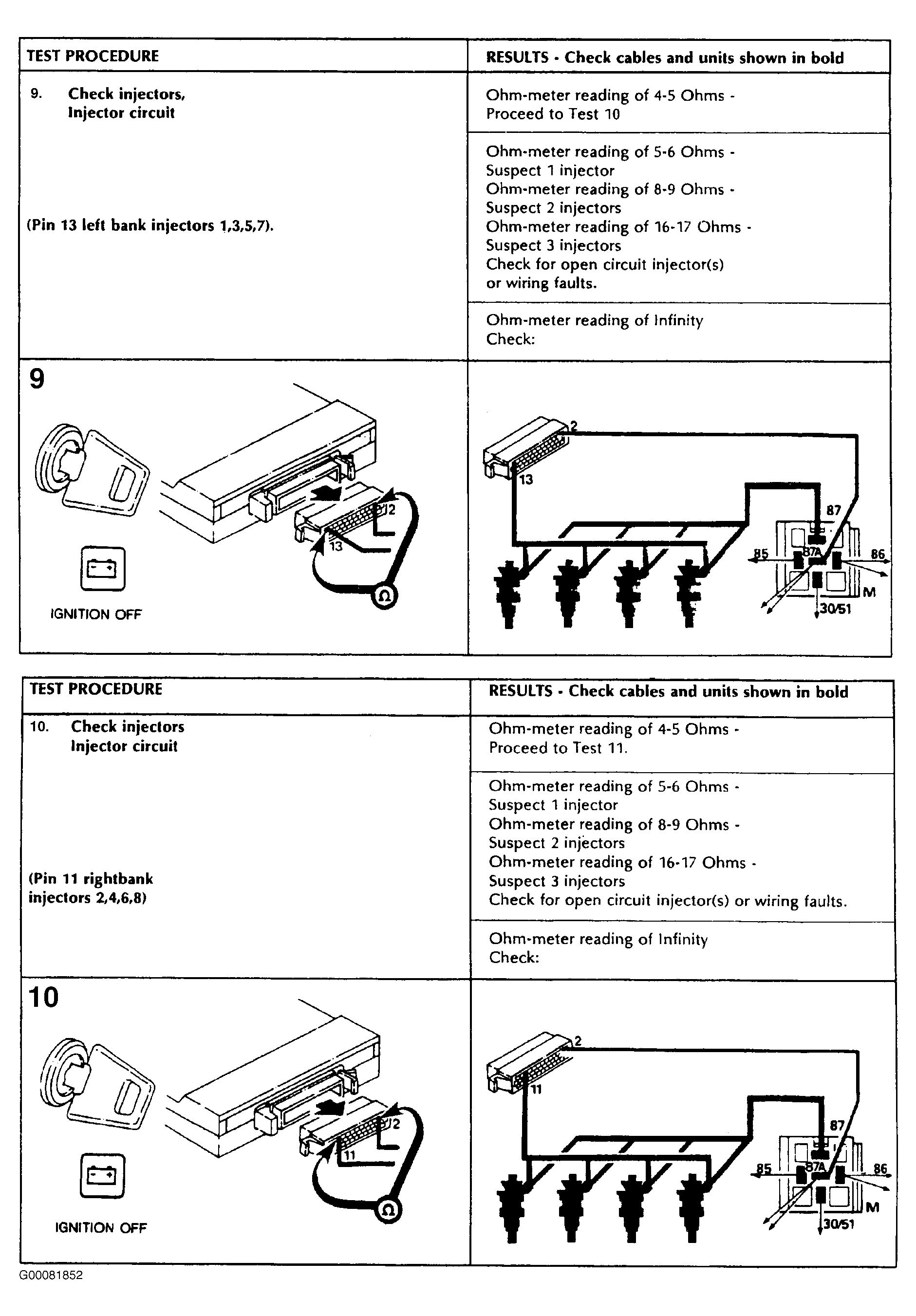

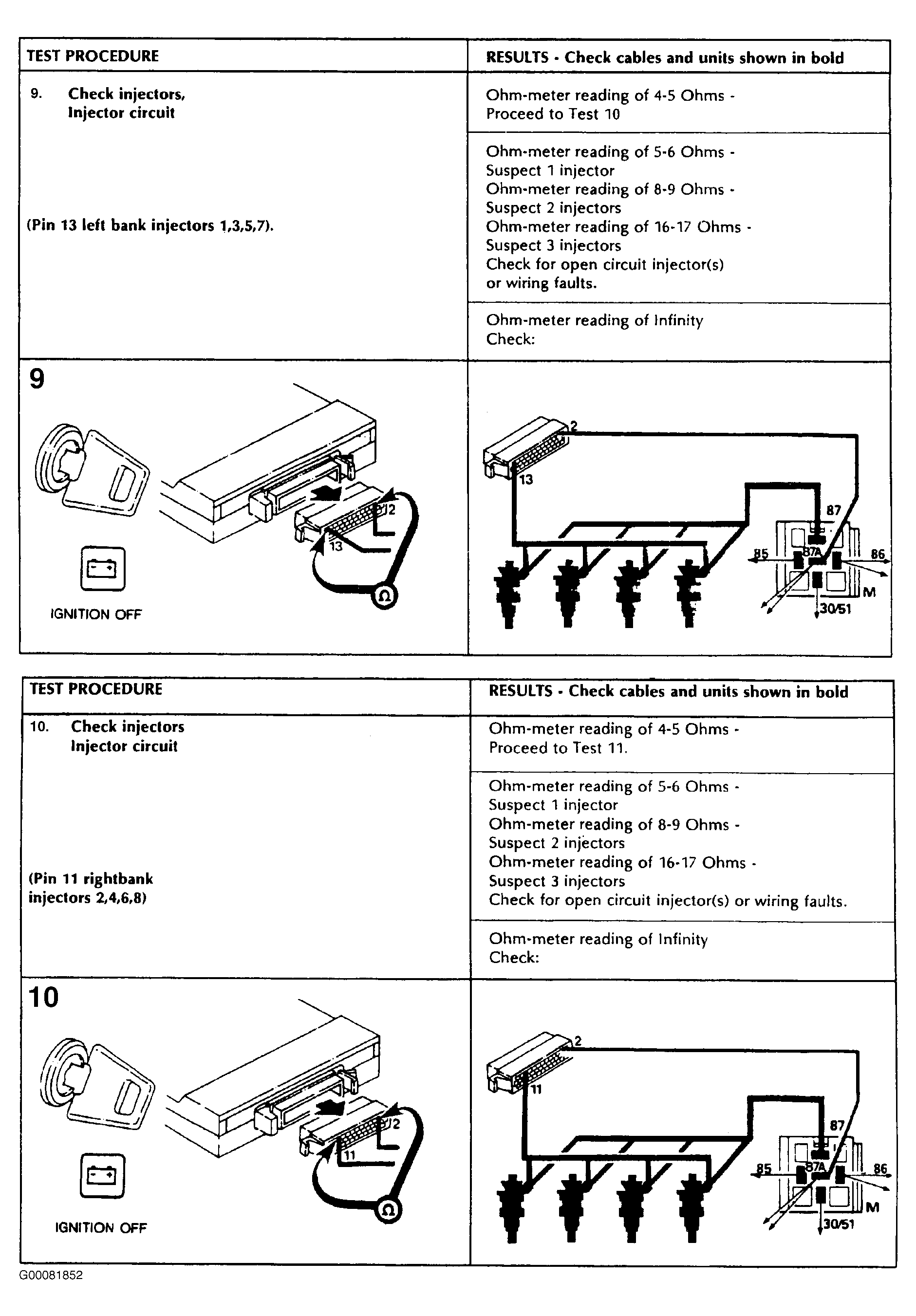

Fig 1: Fuel Injectors Test Procedure No. 9 & 10 (1987-88)

Courtesy of LAND ROVER NORTH AMERICA, INC.

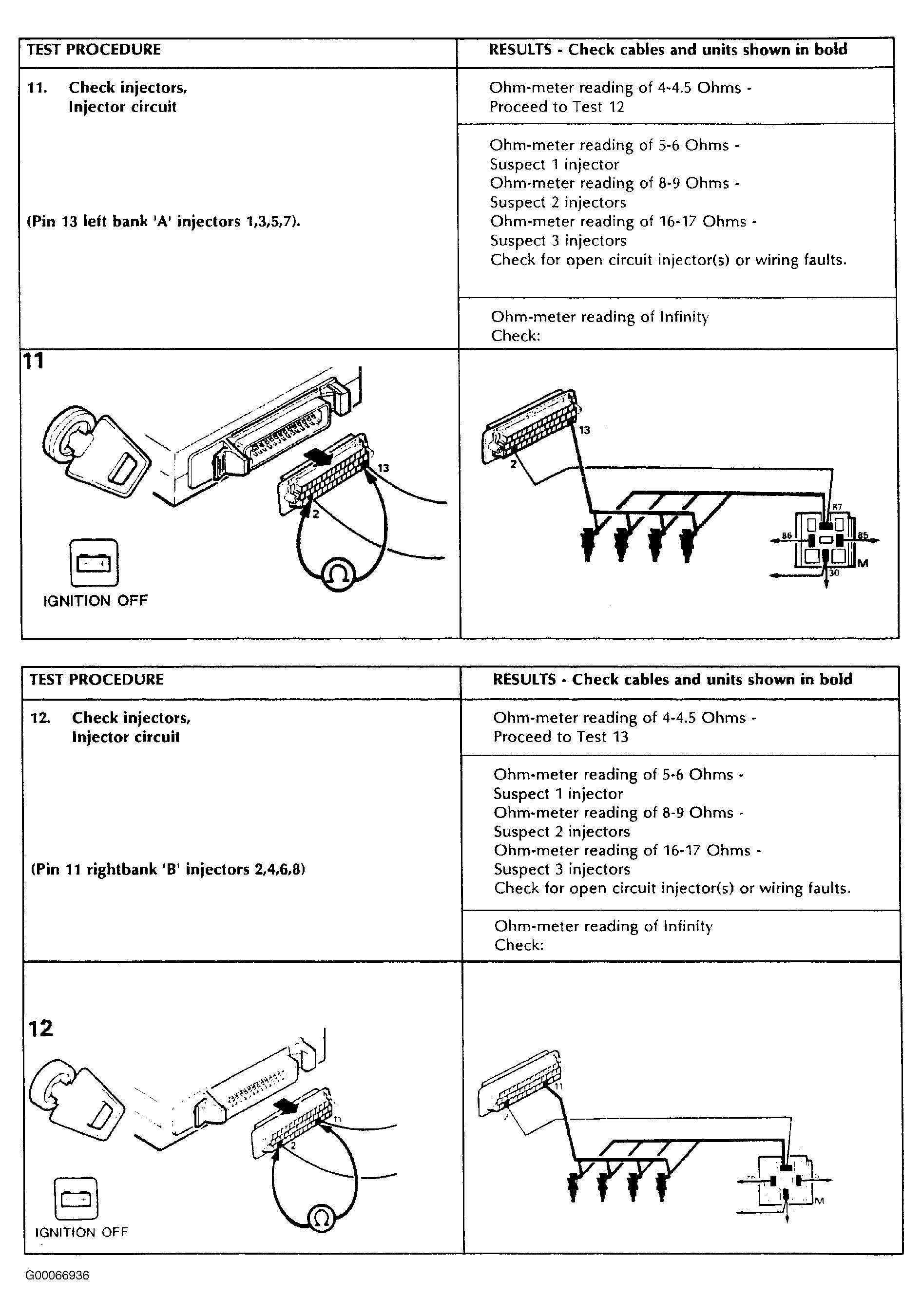

Fig 2: Fuel Injectors Test Procedure No. 11 & 12 (1989-91)

Courtesy of LAND ROVER NORTH AMERICA, INC.
