NOTE:
Use continuity test guide for symbol reference. See Figure
or Figure
.
To test fuel pump operation, see Fig 1
-Fig 4
. After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.

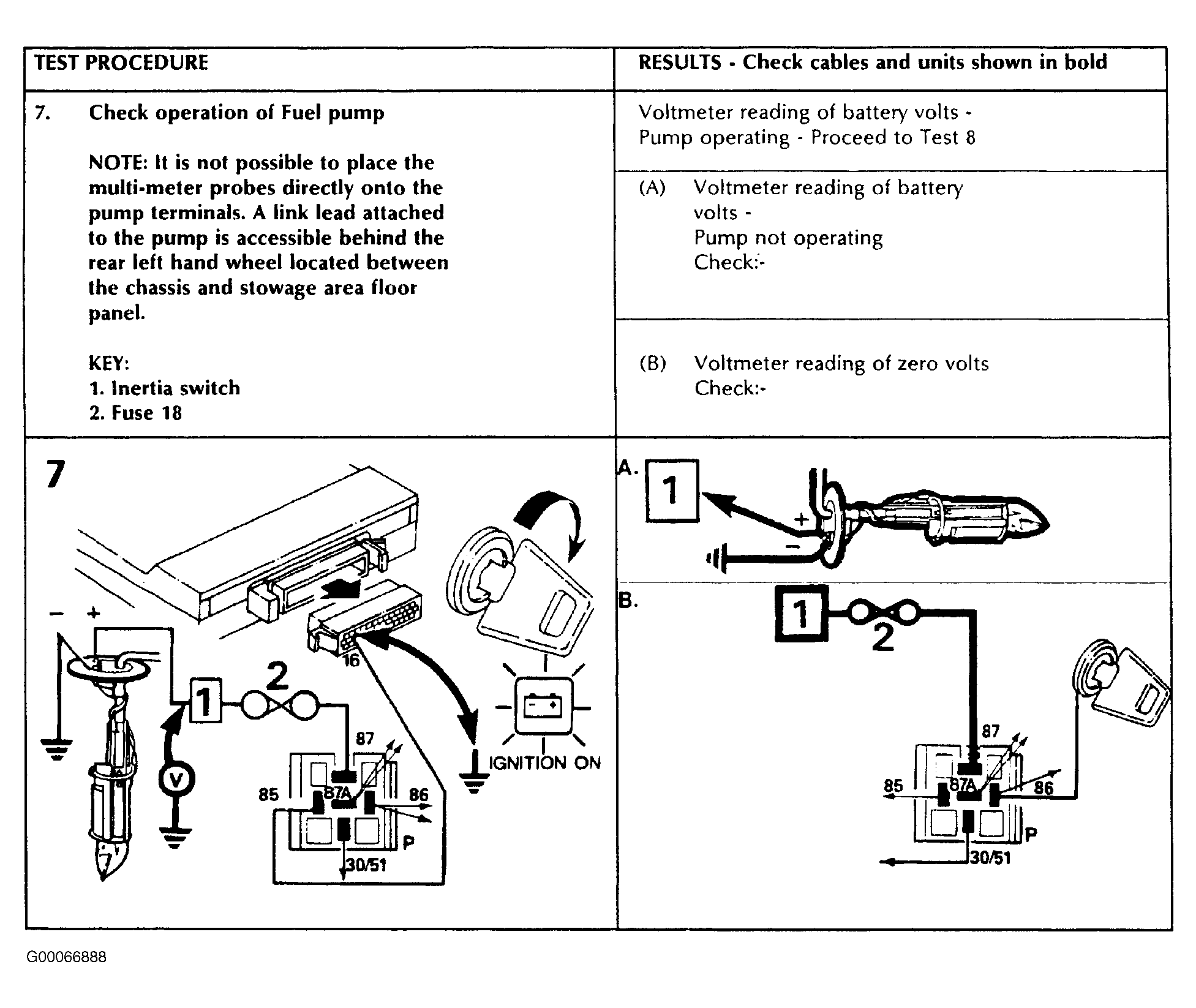

Fig 1: Fuel Pump Circuit Test Procedure No. 7 (1987-88)
Courtesy of LAND ROVER NORTH AMERICA, INC.

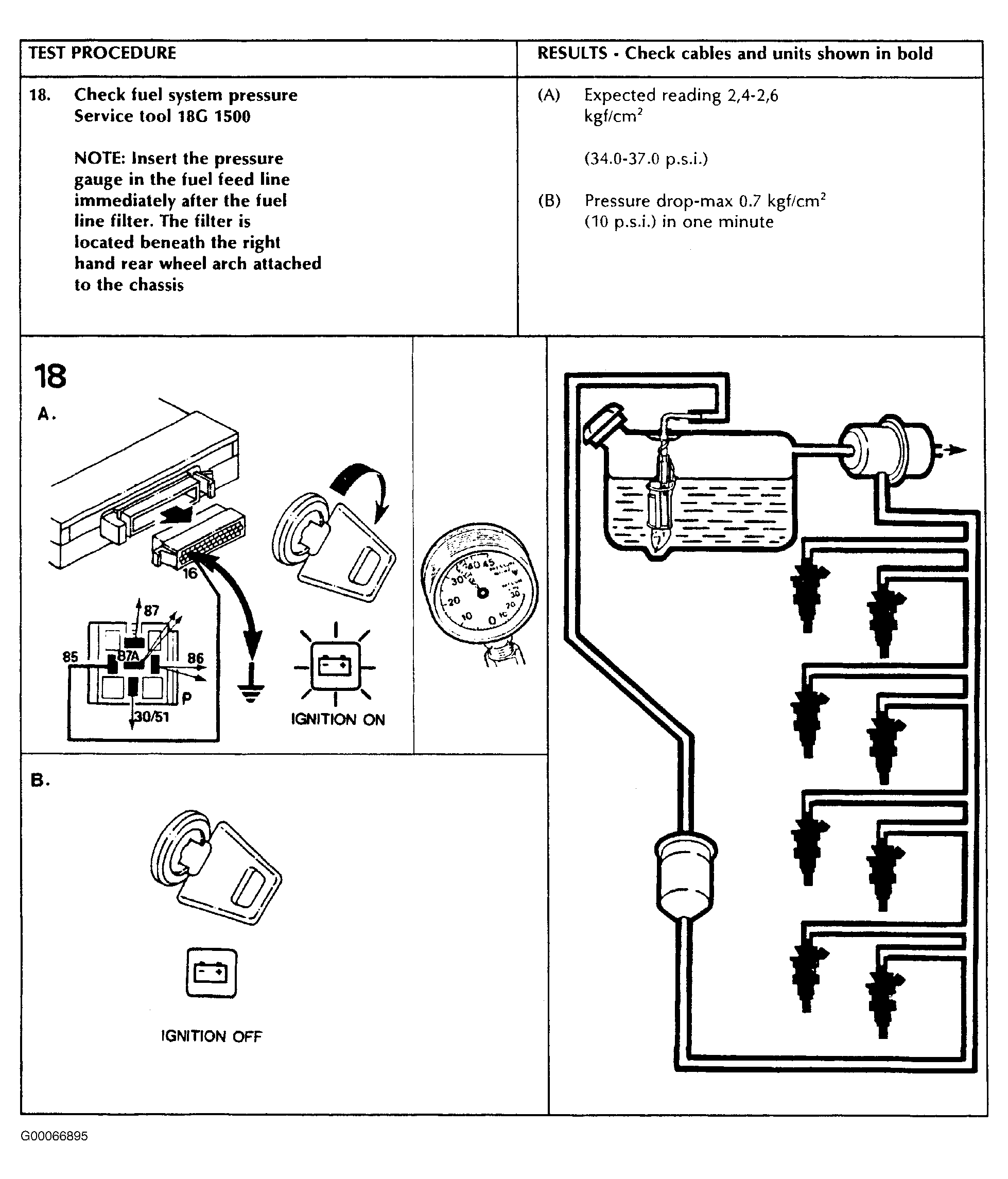

Fig 2: Fuel Pump Circuit Test Procedure No. 18 (1987-88)
Courtesy of LAND ROVER NORTH AMERICA, INC.

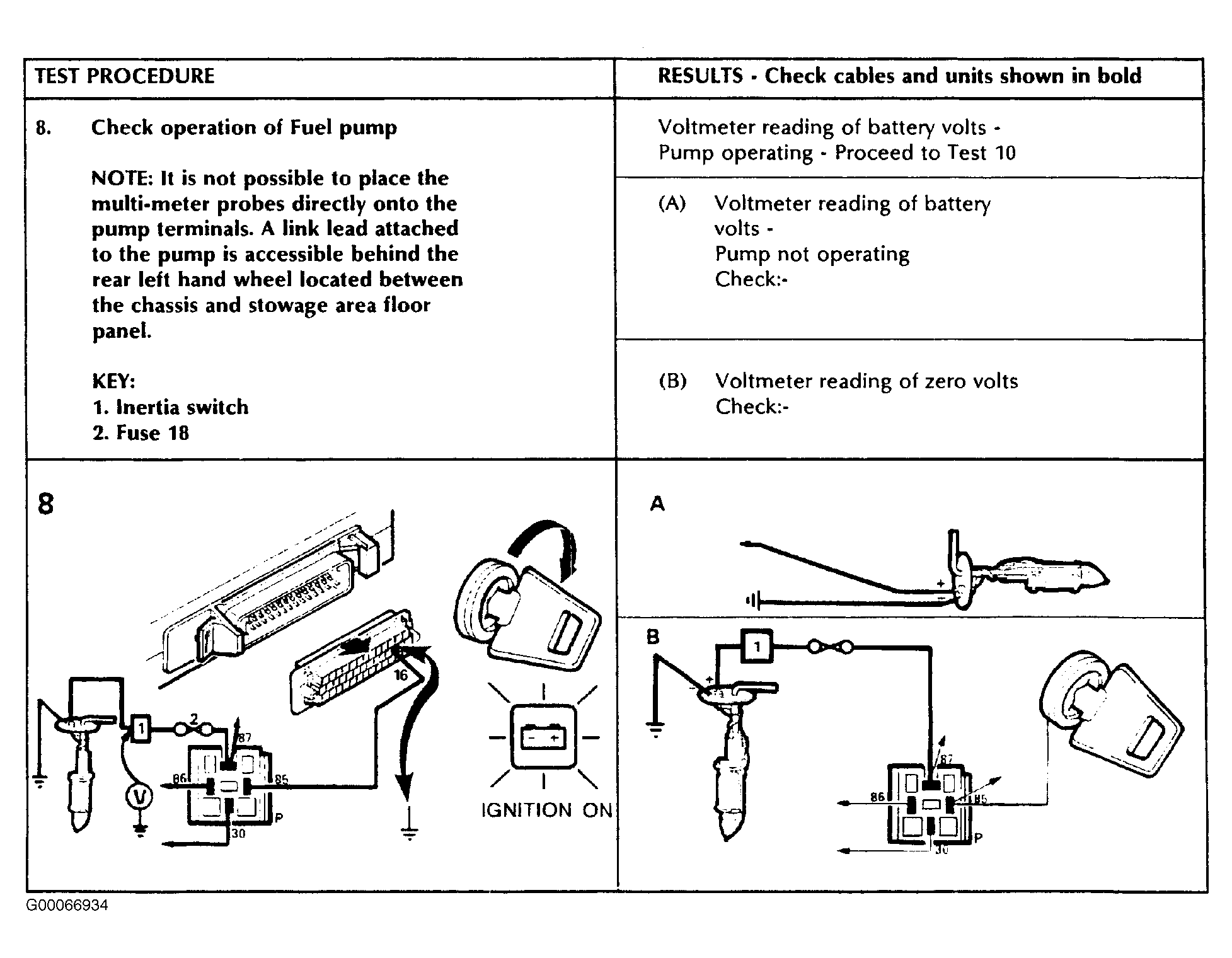

Fig 3: Fuel Pump Circuit Test Procedure No. 8 (1989-91)
Courtesy of LAND ROVER NORTH AMERICA, INC.

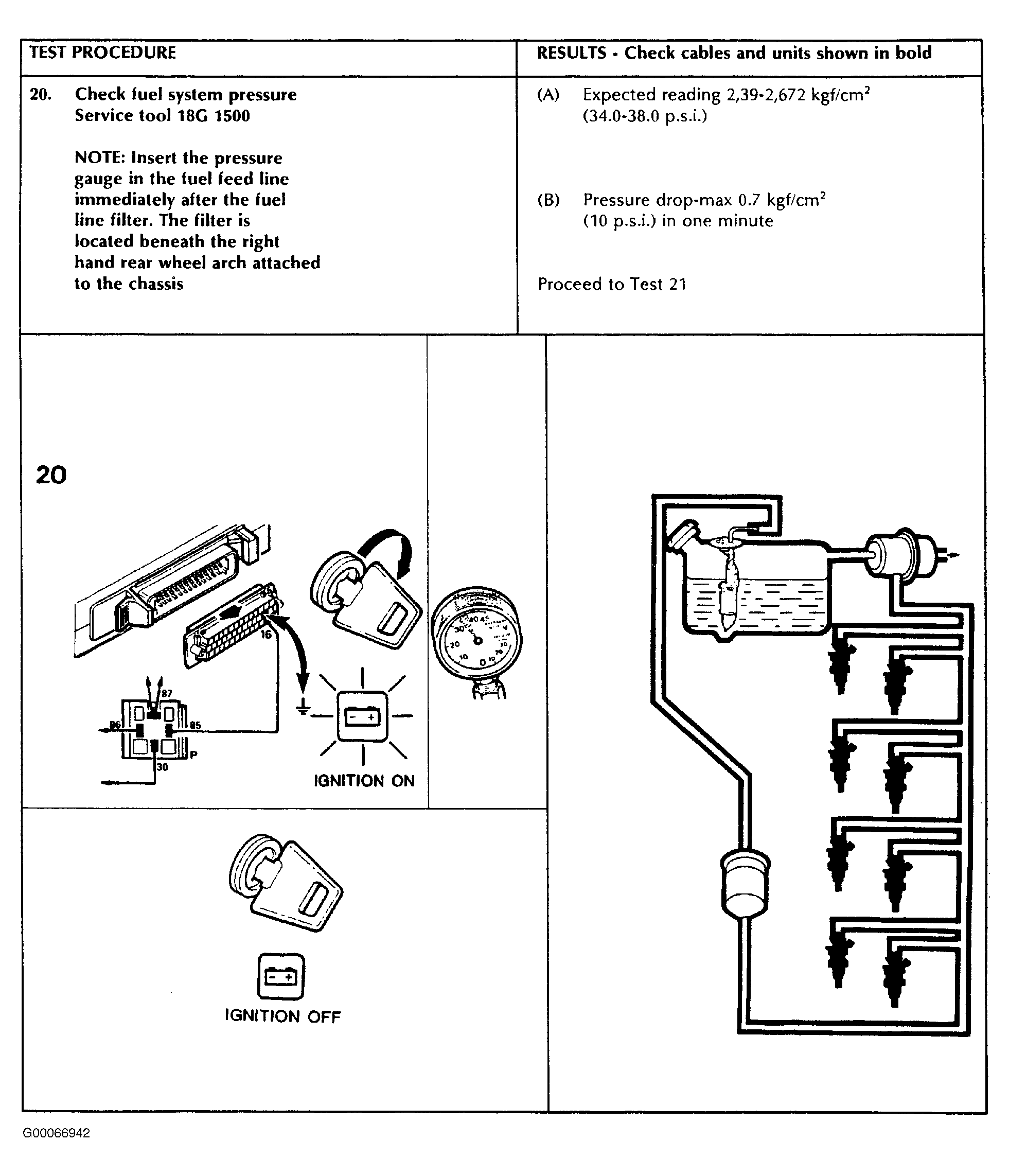

Fig 4: Fuel Pump Circuit Test Procedure No. 20 (1989-91)
