Continuity Test Procedure (1987-88)

The continuity procedure and instructions must be followed precisely to prevent damage occurring to any of fuel system components. To enable tests to be carried out when 40-pin connector is connected to Engine Control Module (ECM), it is necessary to remove two screws securing shroud to connector to enable multimeter probes to be inserted into back of appropriate pin.

CAUTION: Tests that require connector to be removed from ECM, must also have meter probes inserted into back of connector. If probes are inserted into connector sockets, damage will occur to sockets resulting in poor connections when connector is reconnected.
  1. Remove ECM, and harness connector from beneath front right seat, access is gained through rear opening of seat base.
  2. Remove connector shroud and maneuver it along harness until there is enough clearance enabling meter probes to be inserted into back of connector.
  3. There are 4 pin numbers (1, 13, 28, 40) molded onto rear of connector for pin position identification. See Fig 1 . Pins 1 to 13 top row. Pins 14 to 27 center row (Pin 14 is below pin 13 but is not identified on rear of connector). Pins 28 to 40 bottom row. Pin wire colors are identified in ENGINE CONTROL MODULE CONNECTOR TERMINAL IDENTIFICATION (1987-88)  table.
ENGINE CONTROL MODULE CONNECTOR TERMINAL IDENTIFICATION (1987-88)

Pin Number (1) Wire Color
1 Red/Green
2 Brown/Orange
3 Yellow
4 Black
5 Brown/Purple
6 Yellow
7 Green/Blue
8 Not Used
9 White/Light Green
10 Black/Yellow
11 Yellow/White
12 Blue/Red
13 Yellow/Blue
14 Black
15 Brown
16 Blue/Purple
17 Not Used
18 White/Pink
19 White/Gray
20 Red
21 Yellow/Blue
22 Blue/Red
23 Blue
24 Blue
25 Red/Black
26 Green/White
27 Black/Gray
28 Blue/Gray
29 Orange
30 Not Used
31 Not Used
32 Gray/White
33 Not Used
34 Black/Orange
35 Blue/Green
36 Not Used
37 White/Yellow
38 Not Used
39 White/Black
40 Black
(1) Last color denotes wire tracer color.

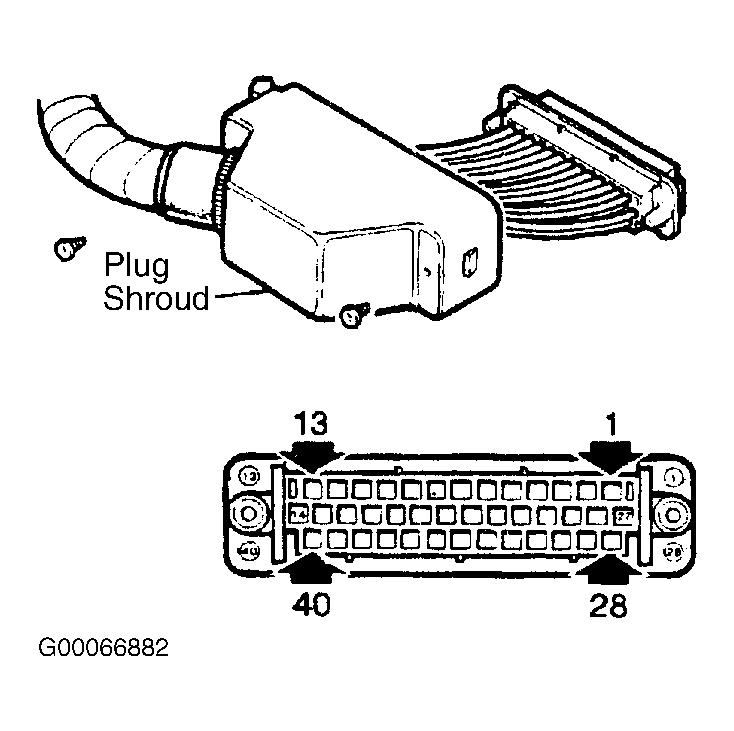

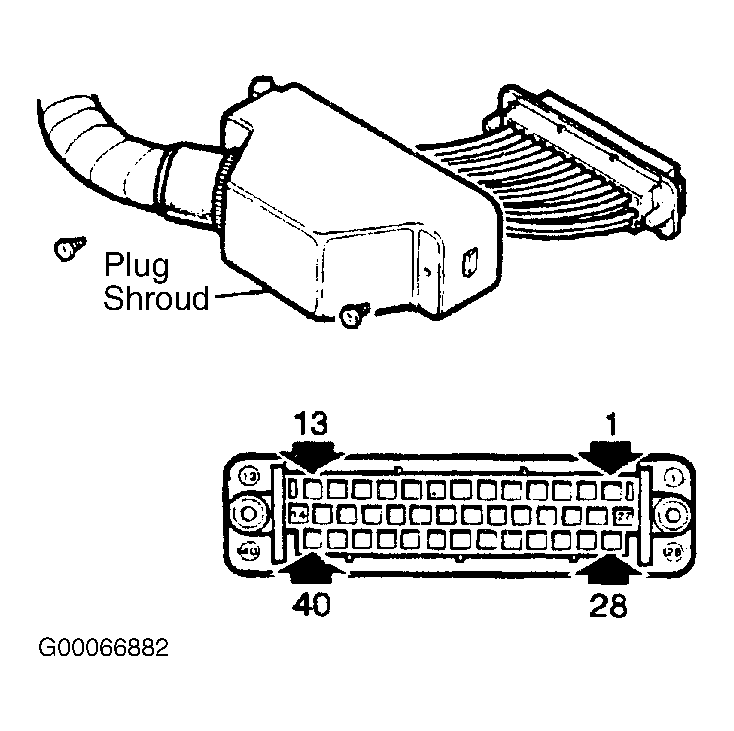

Fig 1: Identifying Engine Control Module Connector Terminals (1987-89)
G00066882Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 2: Continuity Test Guide (1987-88)
G00066884Courtesy of LAND ROVER NORTH AMERICA, INC.
