Wiring Diagrams

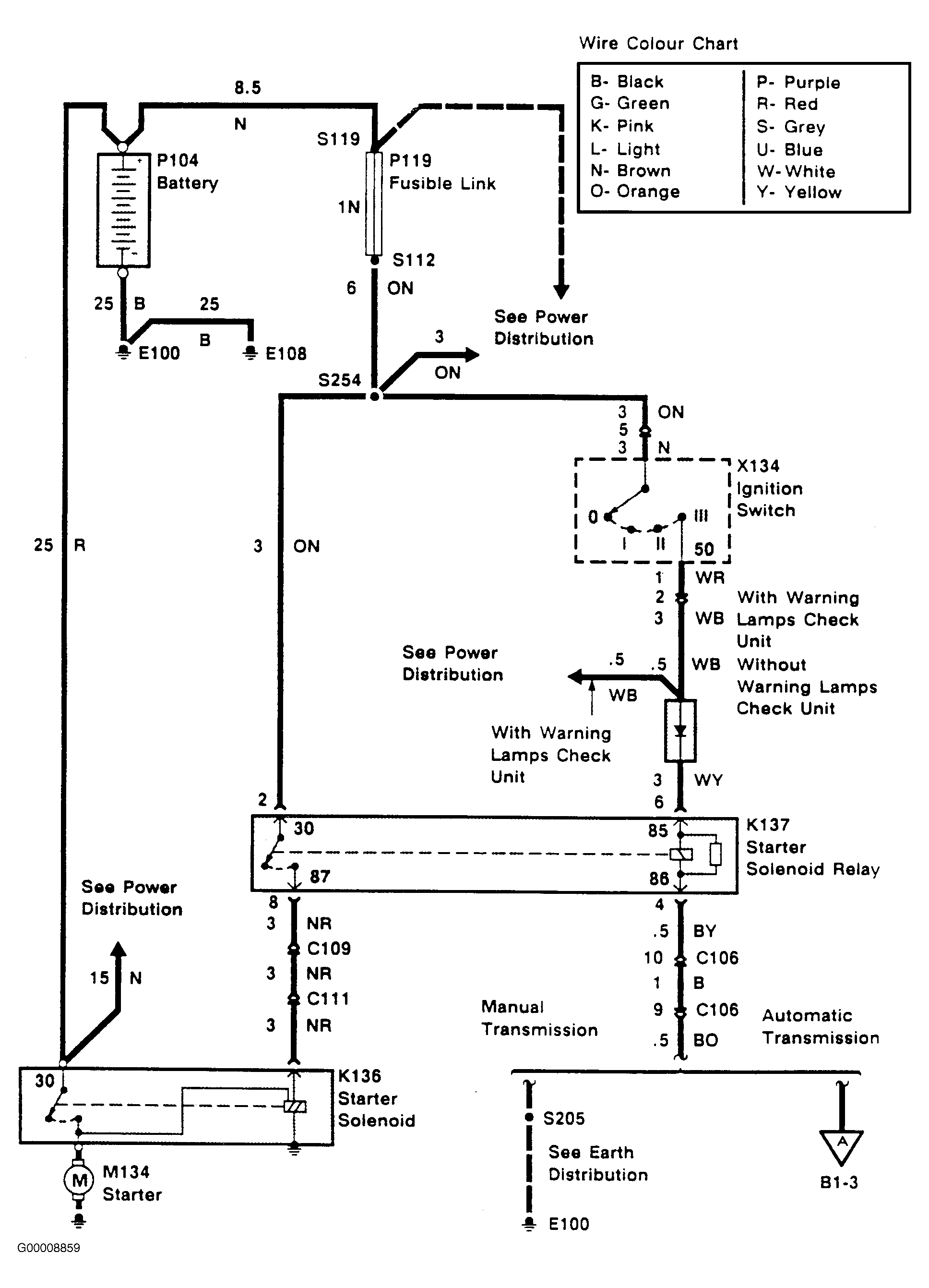

Fig 1: Starter System Wiring Diagram (1 Of 2)
G00008859Courtesy of LAND ROVER NORTH AMERICA, INC.

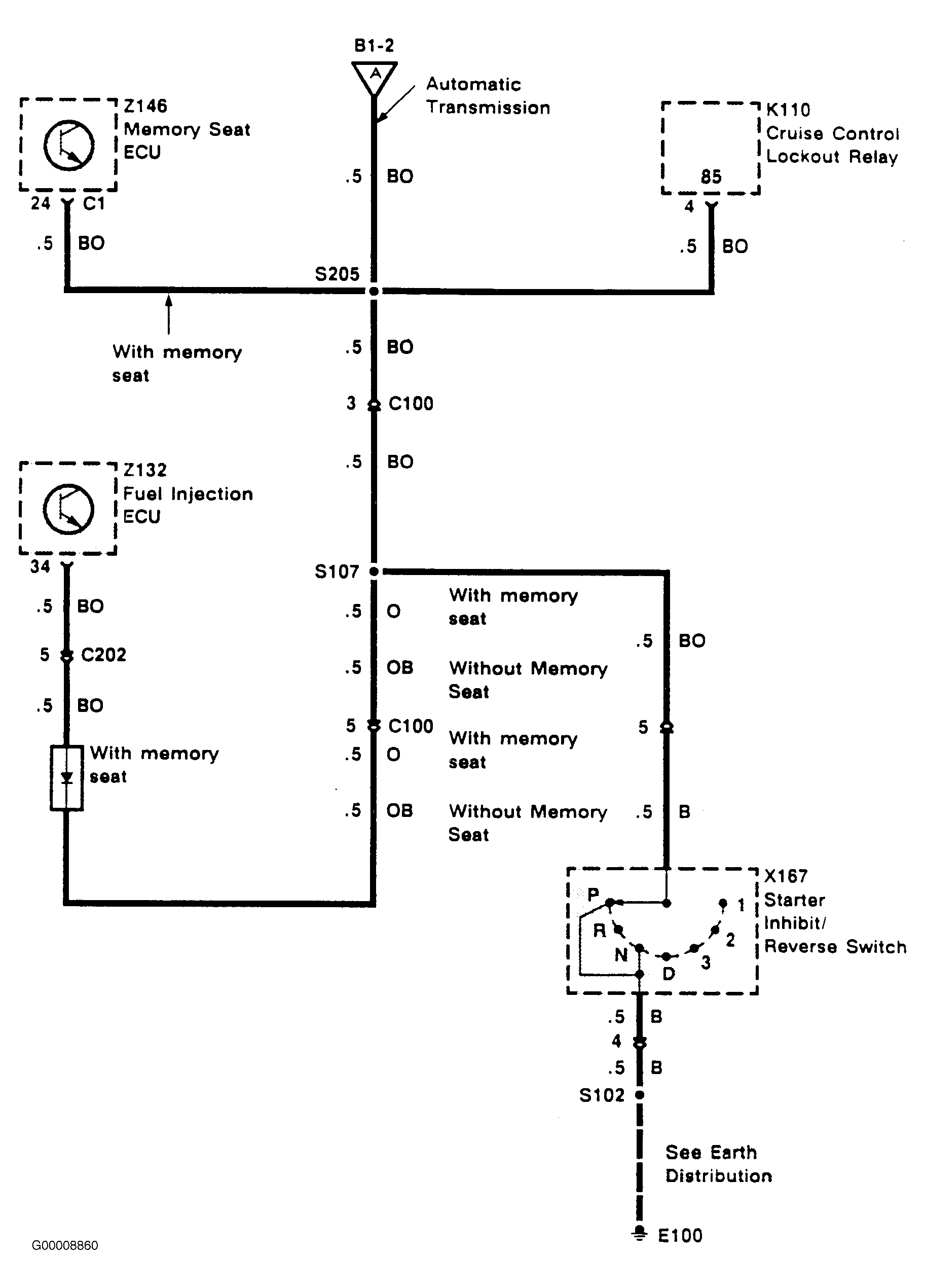

Fig 2: Starter System Wiring Diagram (2 Of 2)
G00008860Courtesy of LAND ROVER NORTH AMERICA, INC.
