Code 14: Coolant Temperature Sensor

Test the coolant temperature sensor. See Fig 1 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.

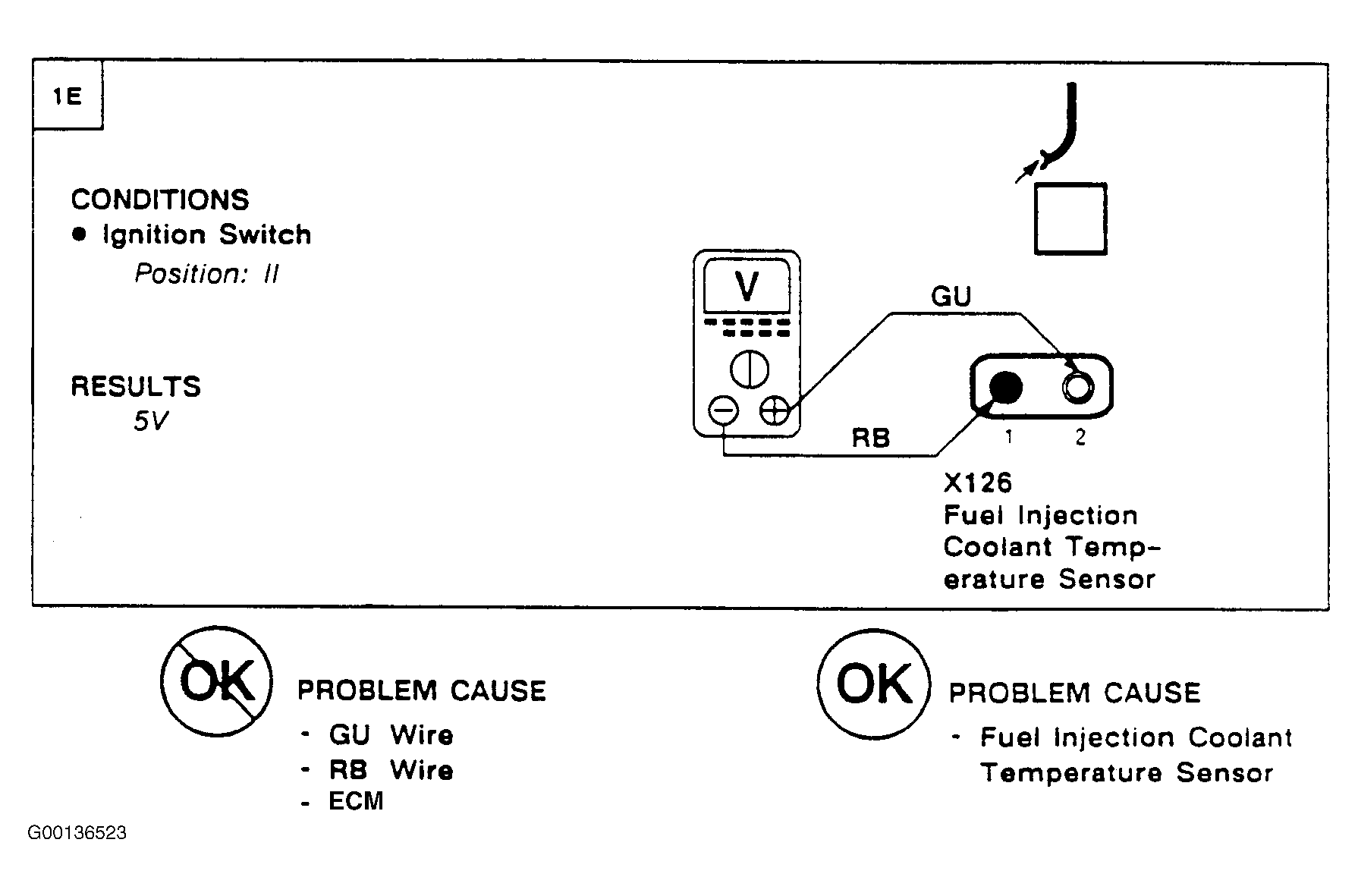

Fig 1: Test "E"

Courtesy of LAND ROVER NORTH AMERICA, INC.
