Code 17: Throttle Position Sensor

Test the throttle position sensor, see Fig 1 and Fig 2 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.

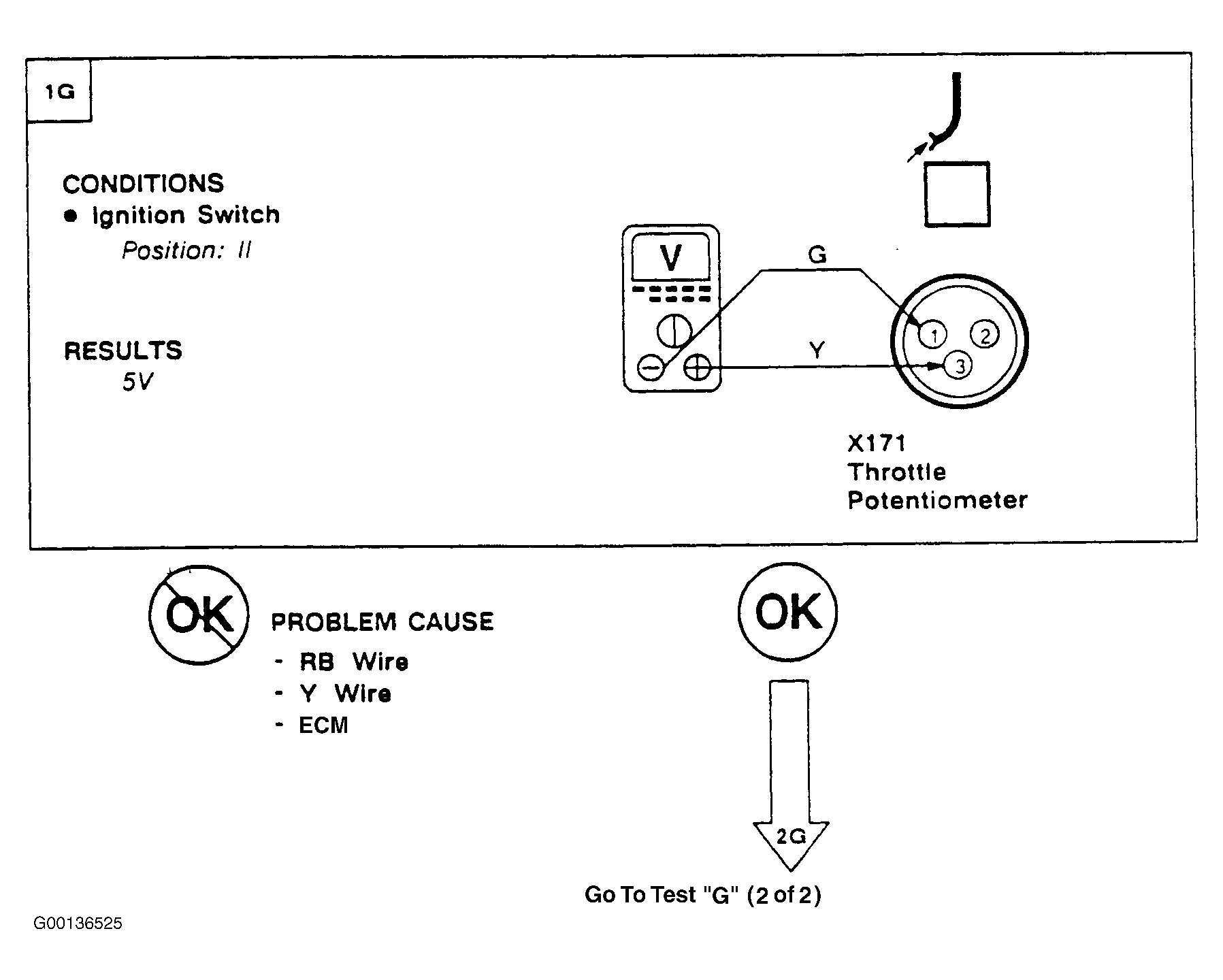

Fig 1: Test "G" (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

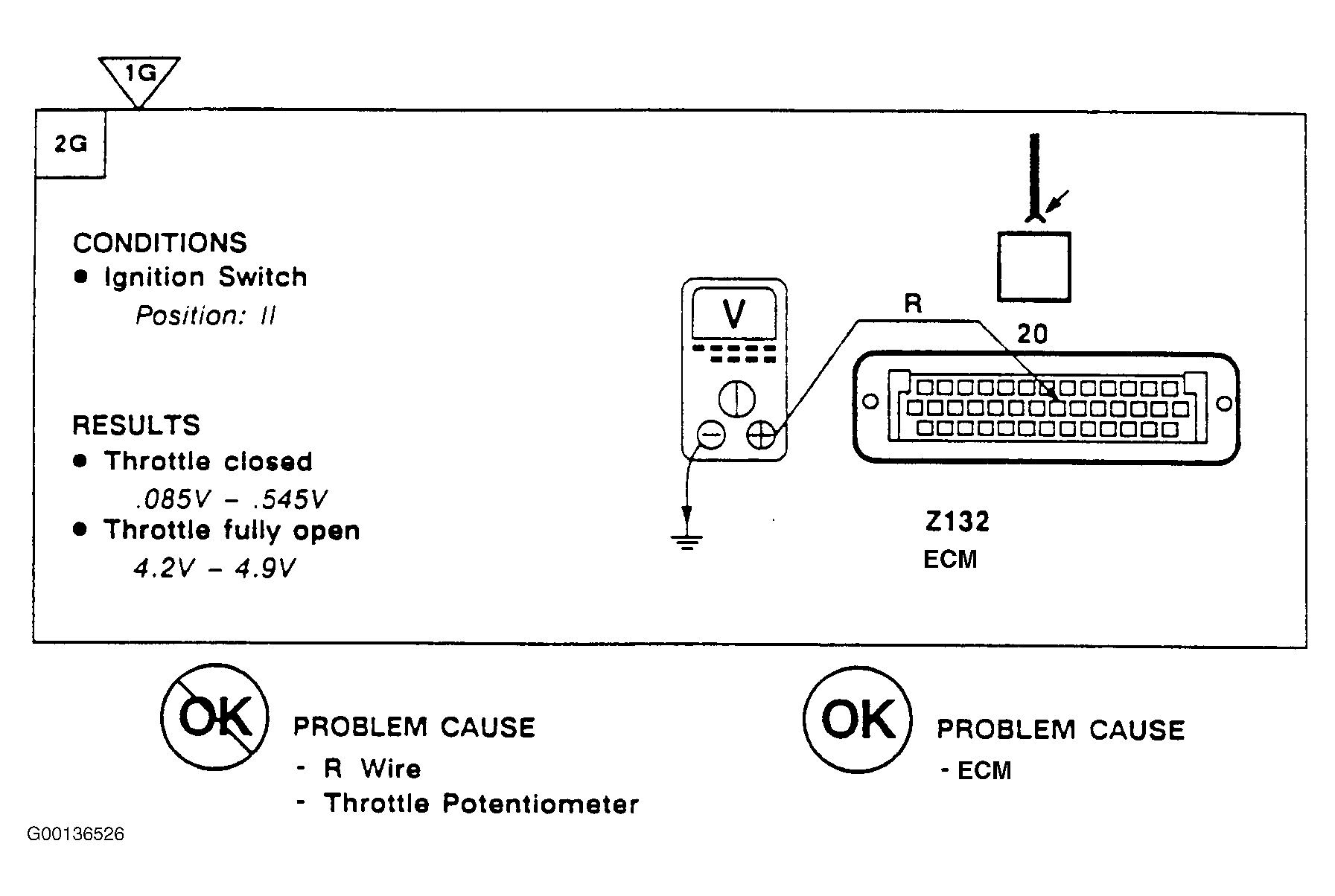

Fig 2: Test "G" (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
