Code 68: Vehicle Speed Sensor

NOTE: If speedometer does not operate, go to appropriate INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT.

Test the vehicle speed sensor input, see Fig 1 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.

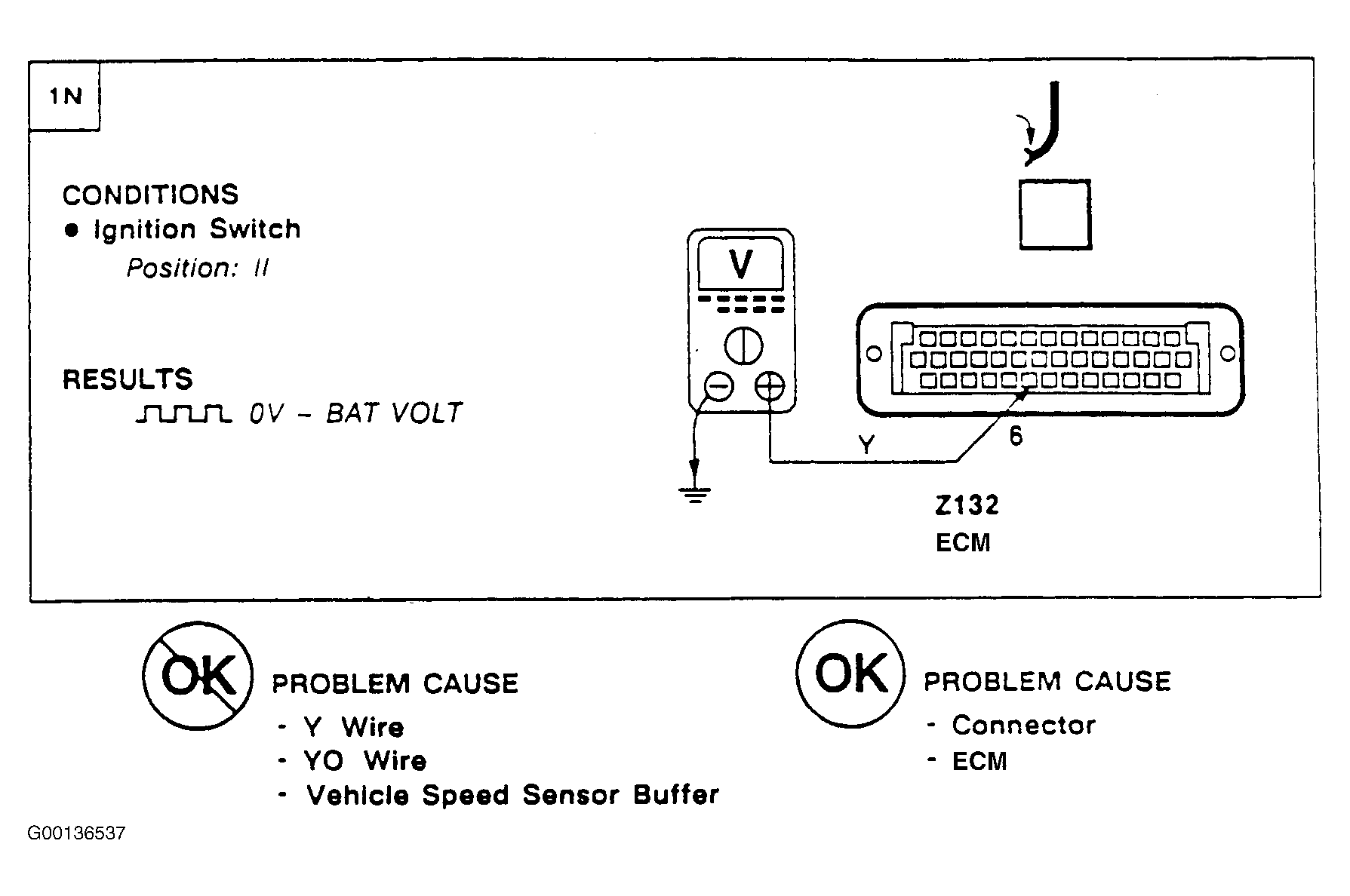

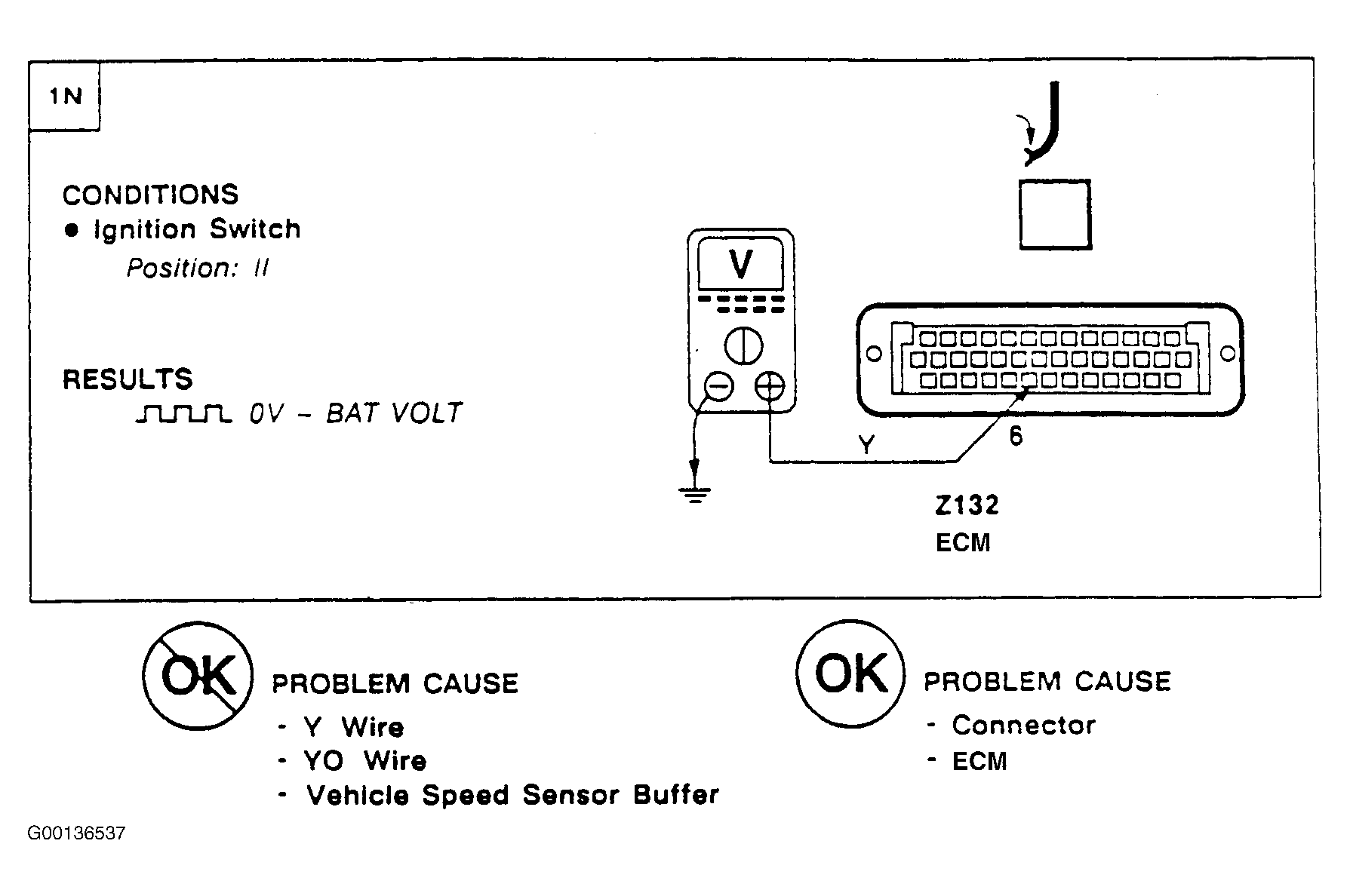

Fig 1: Test "N"

Courtesy of LAND ROVER NORTH AMERICA, INC.
