Code 69: Starter Inhibit/Reverse Switch

Test the starter inhibit/reverse switch, see Fig 1 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.

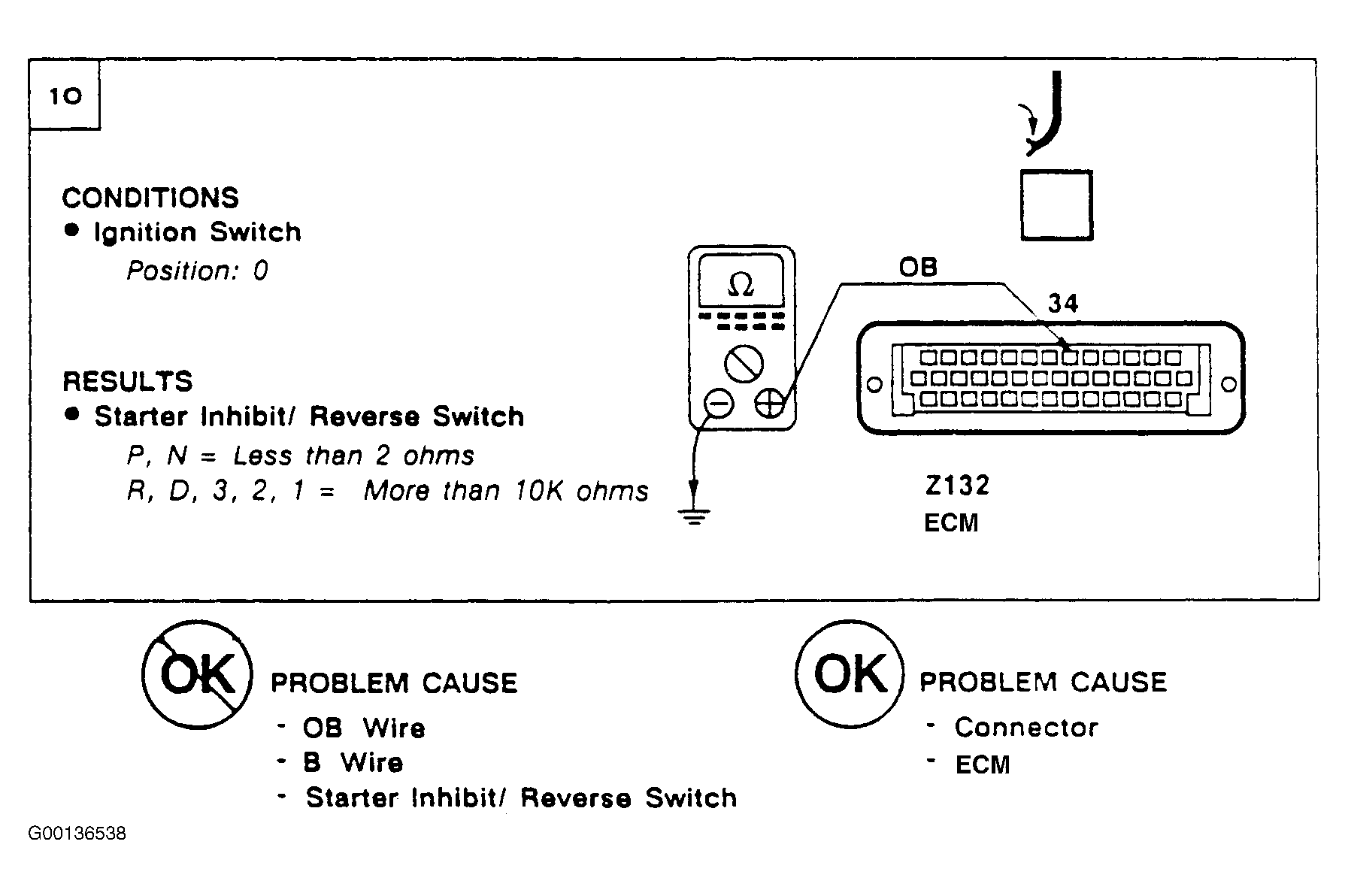

Fig 1: Test "O"

Courtesy of LAND ROVER NORTH AMERICA, INC.
