Test A

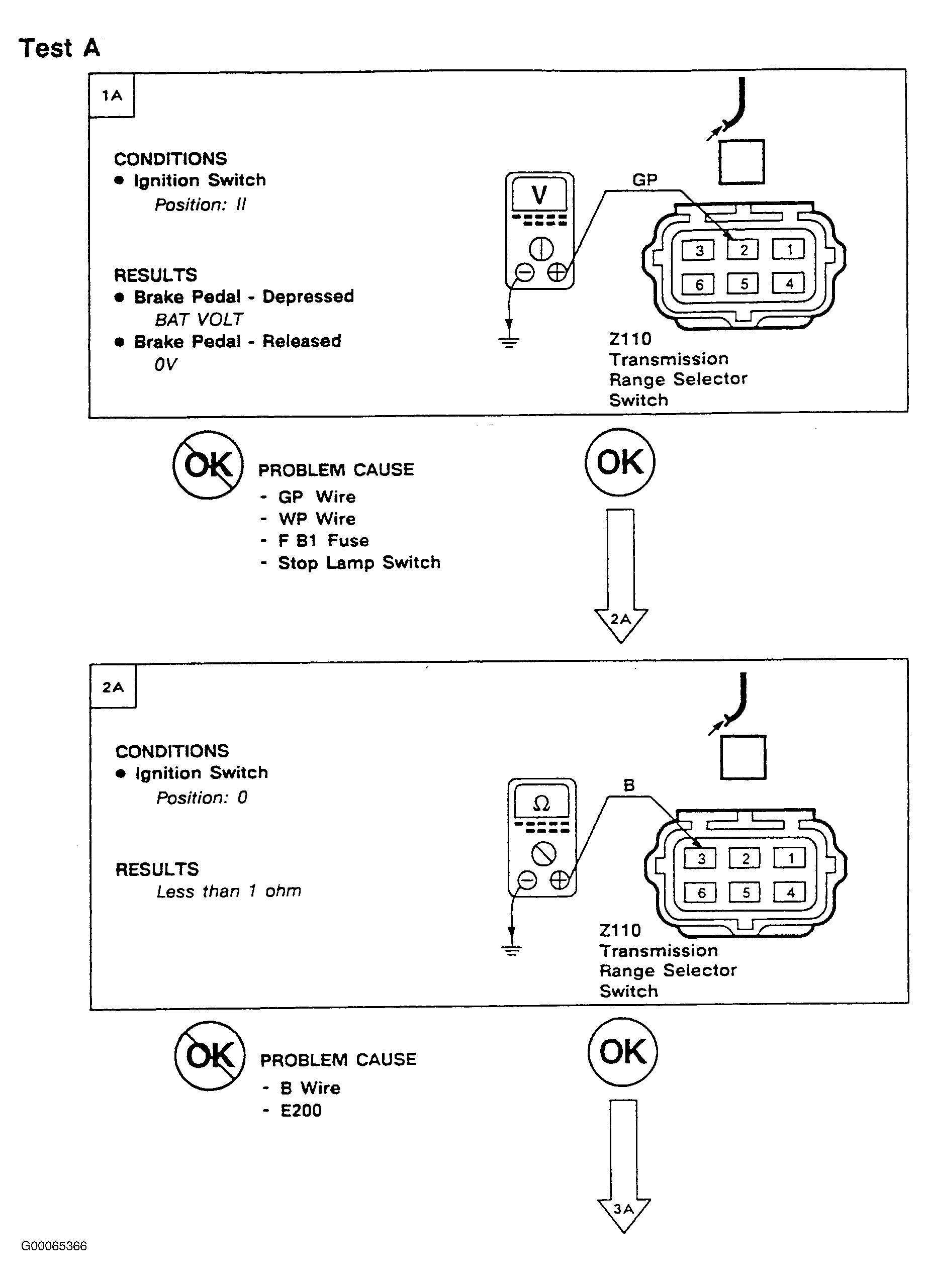

Fig 1: Test A - Steps 1A & 2A (1 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

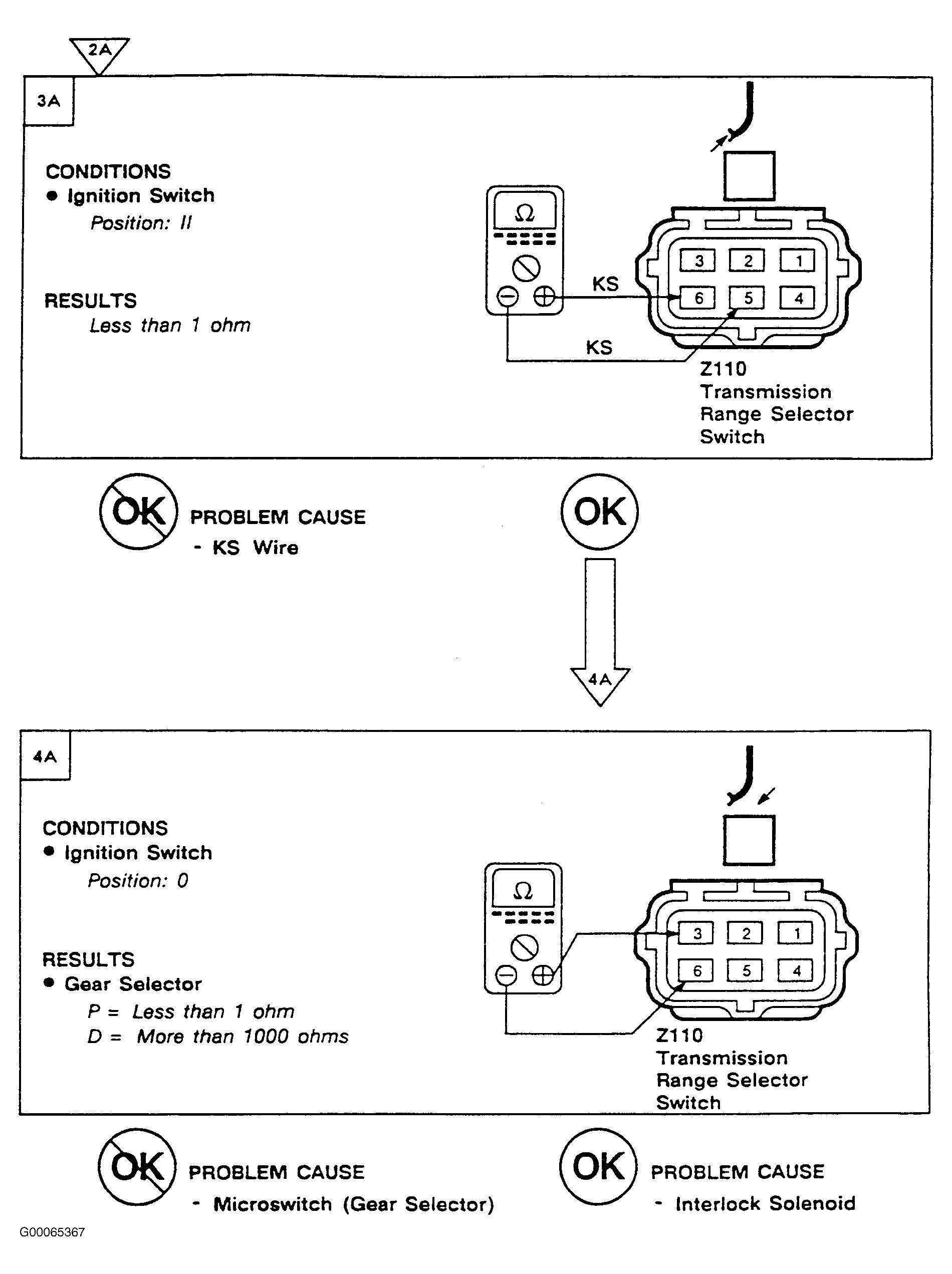

Fig 2: Test A - Steps 3A & 4A (2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
