Test E

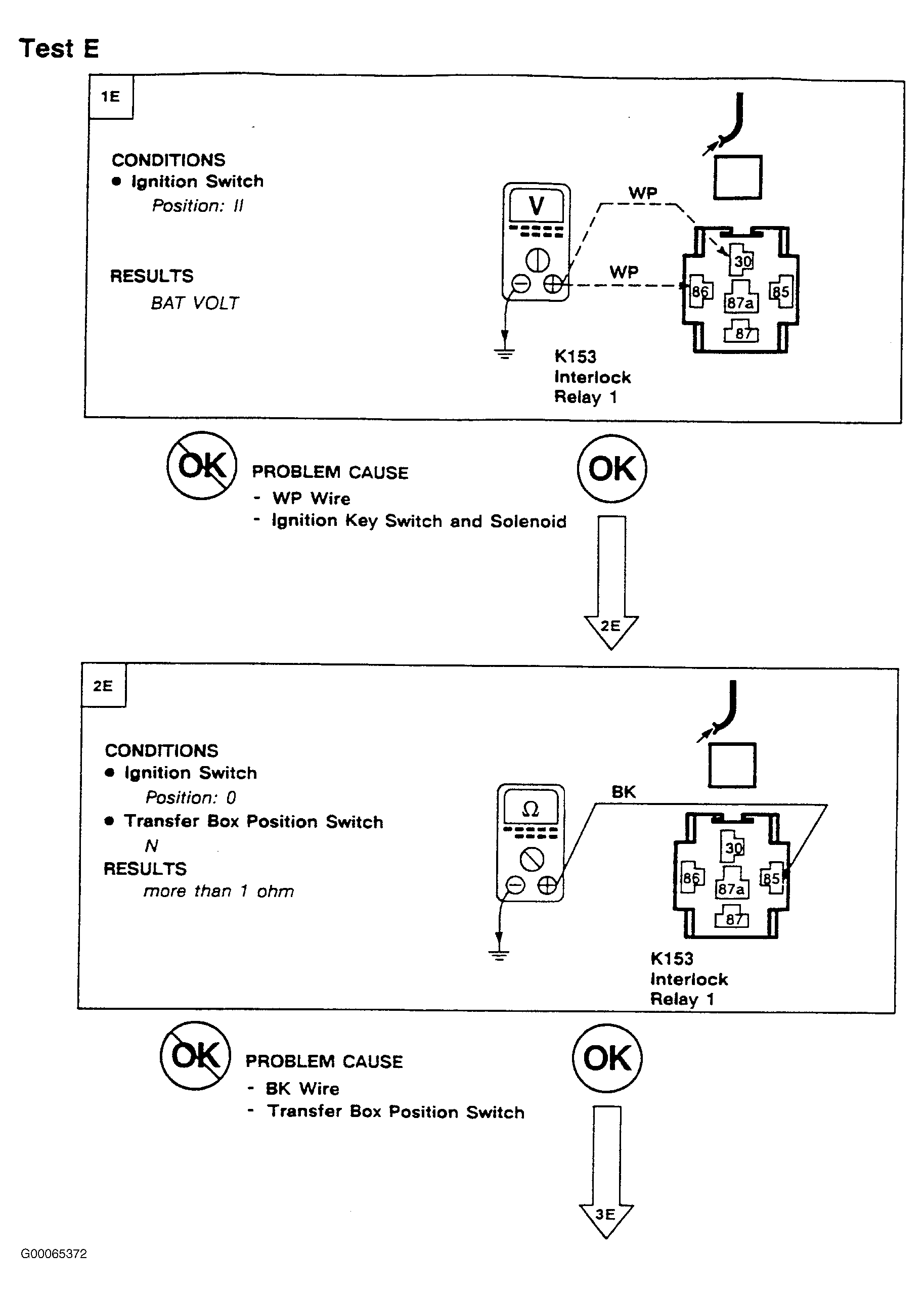

Fig 1: Test E - Steps 1E & 2E (1 Of 2)
G00065372Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 2: Test E - Step 3E (2 Of 2)
G00065373Courtesy of LAND ROVER NORTH AMERICA, INC.
