Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

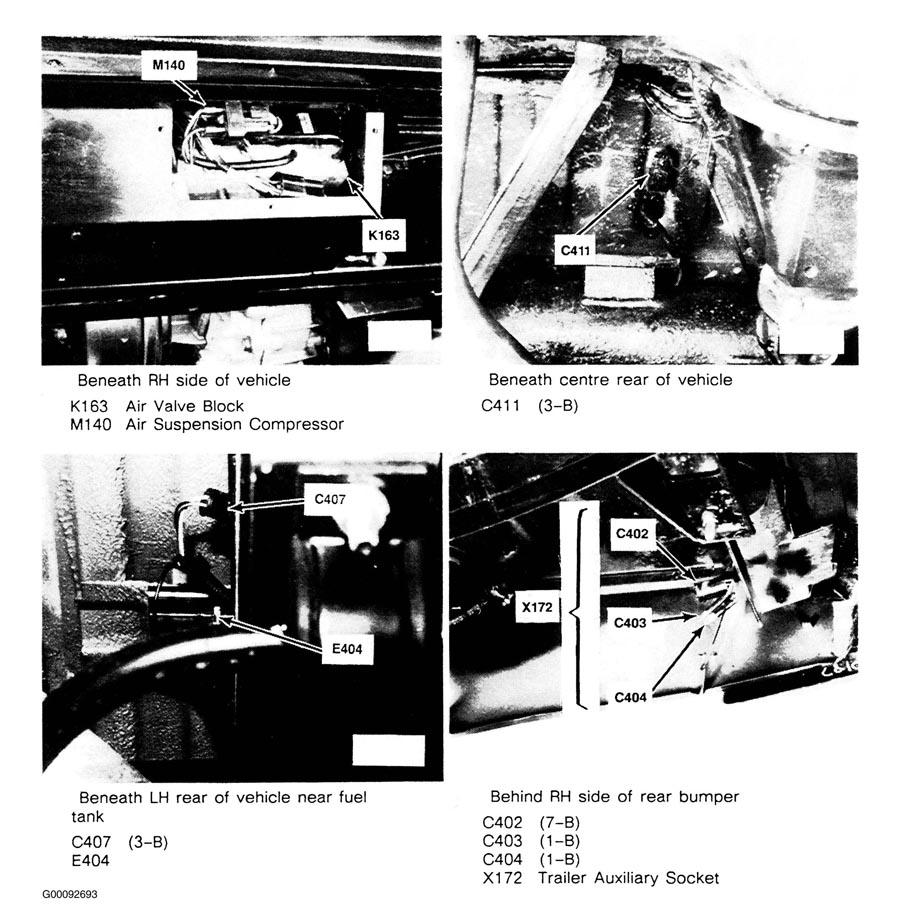

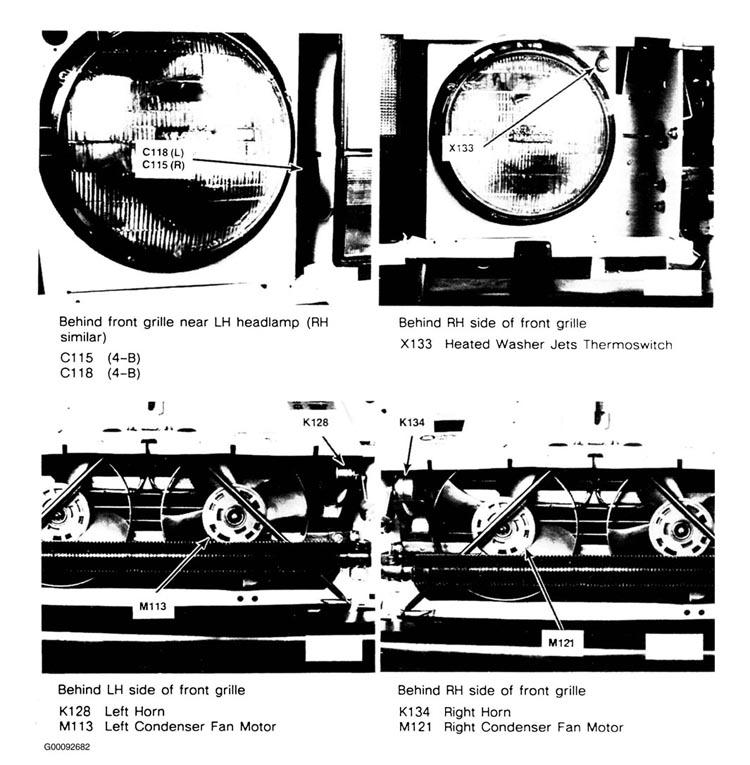

Fig 1: Component Locations (1 Of 32)

G00092682

Courtesy of LAND ROVER NORTH AMERICA, INC.

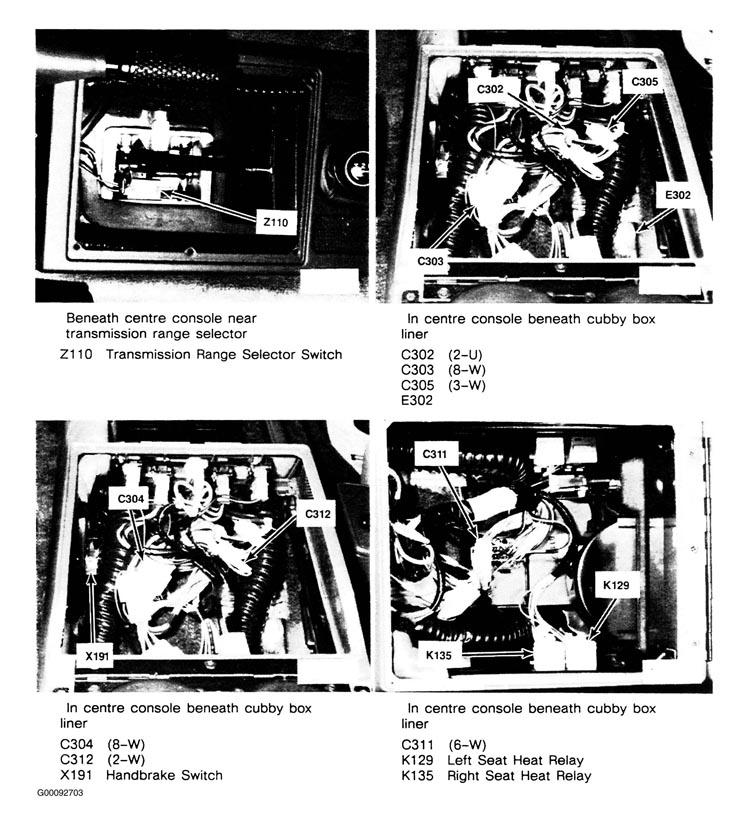

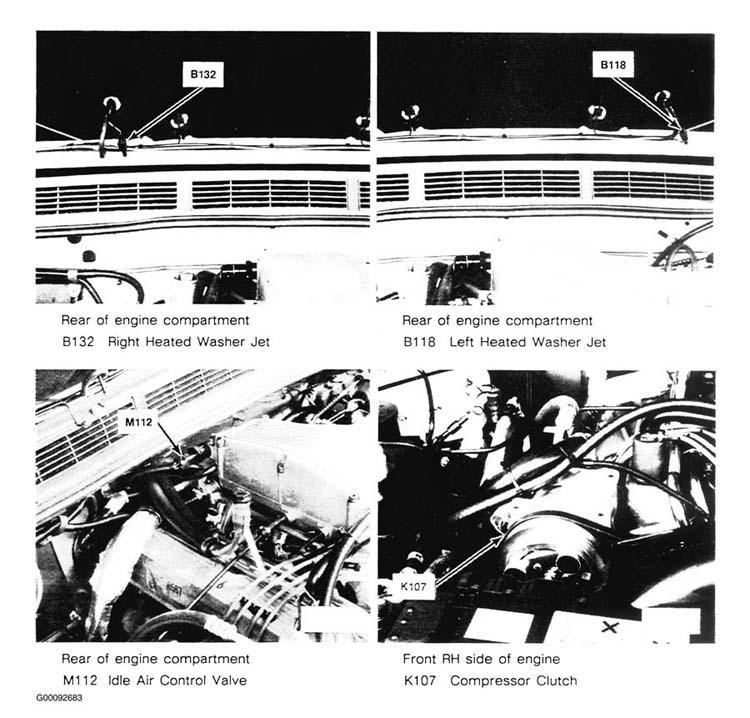

Fig 2: Component Locations (2 Of 32)

G00092683

Courtesy of LAND ROVER NORTH AMERICA, INC.

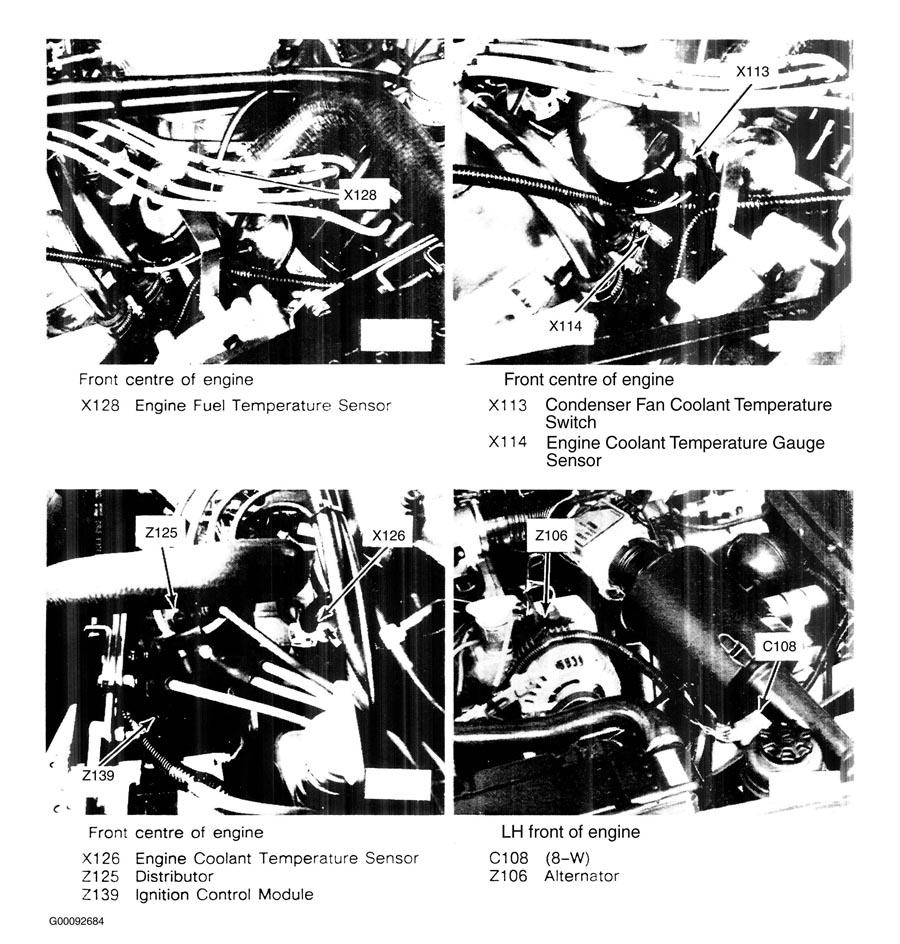

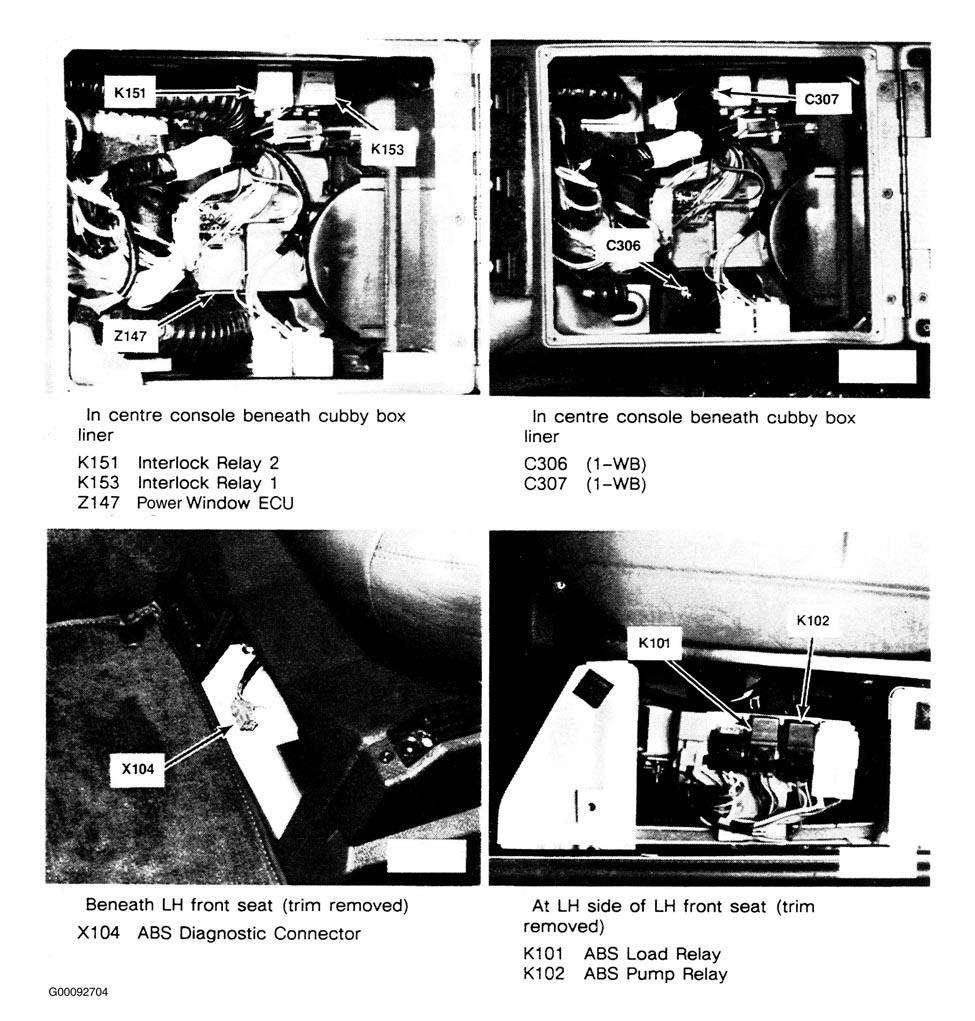

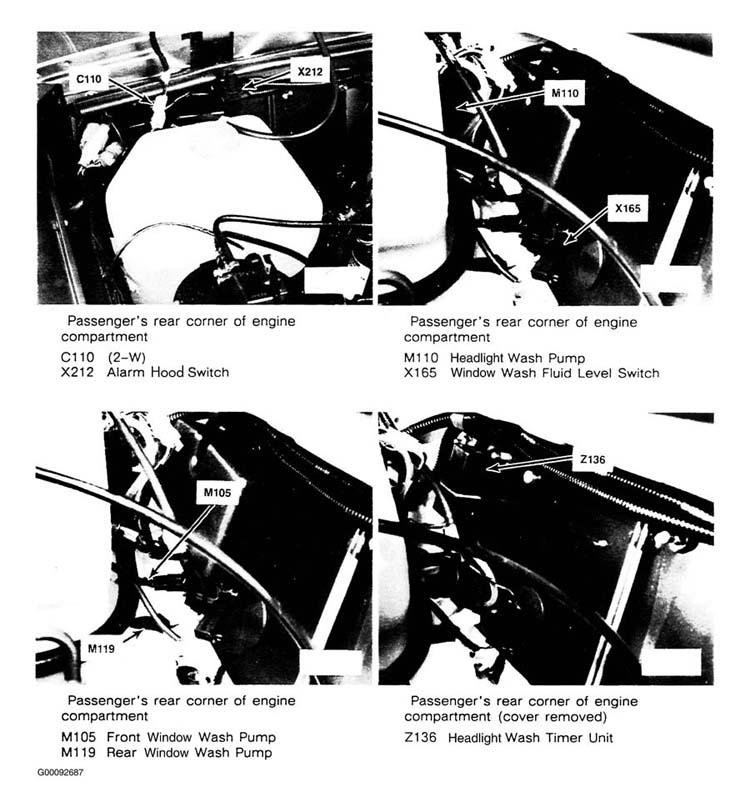

Fig 3: Component Locations (3 Of 32)

G00092684

Courtesy of LAND ROVER NORTH AMERICA, INC.

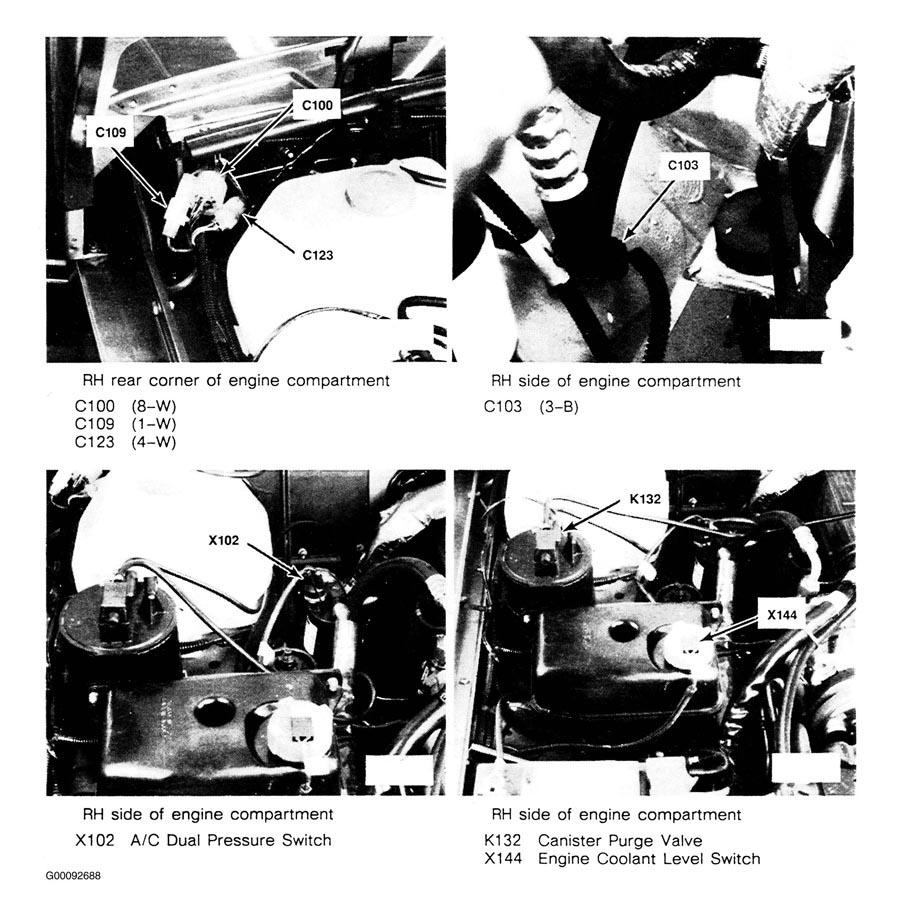

Fig 4: Component Locations (4 Of 32)

G00092685

Courtesy of LAND ROVER NORTH AMERICA, INC.

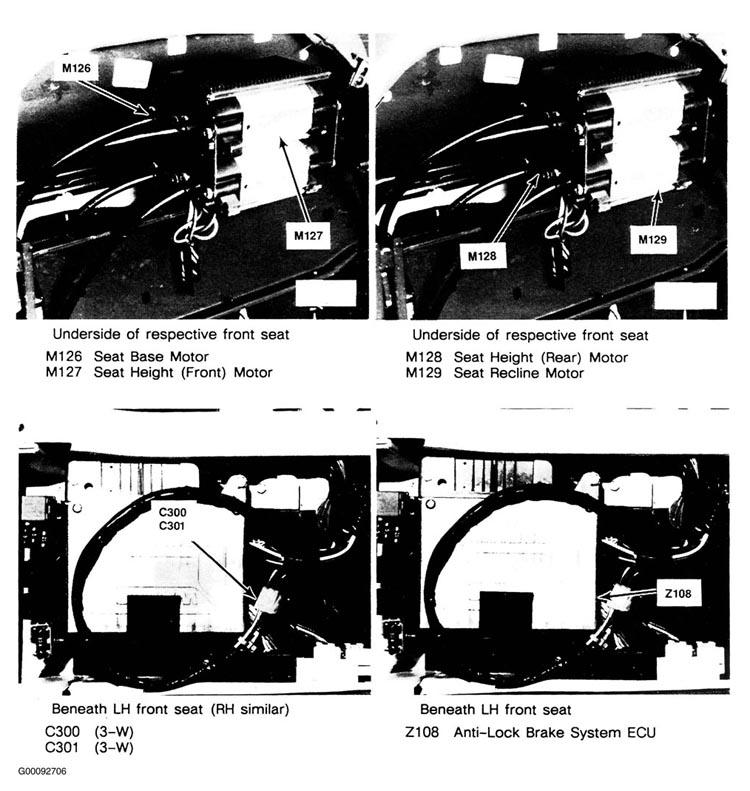

Fig 5: Component Locations (5 Of 32)

G00092686

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 6: Component Locations (6 Of 32)

G00092687

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 7: Component Locations (7 Of 32)

G00092688

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 8: Component Locations (8 Of 32)

G00092689

Courtesy of LAND ROVER NORTH AMERICA, INC.

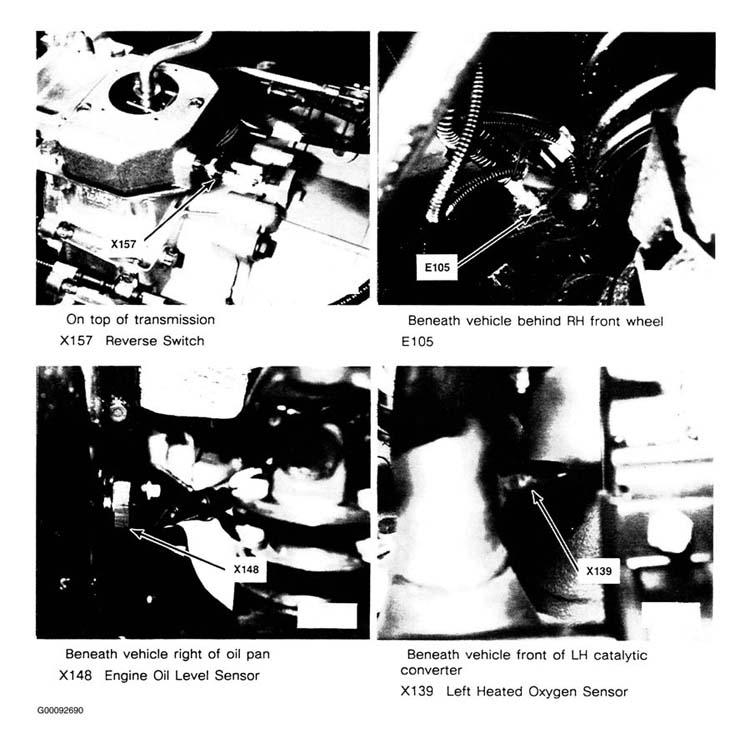

Fig 9: Component Locations (9 Of 32)

G00092690

Courtesy of LAND ROVER NORTH AMERICA, INC.

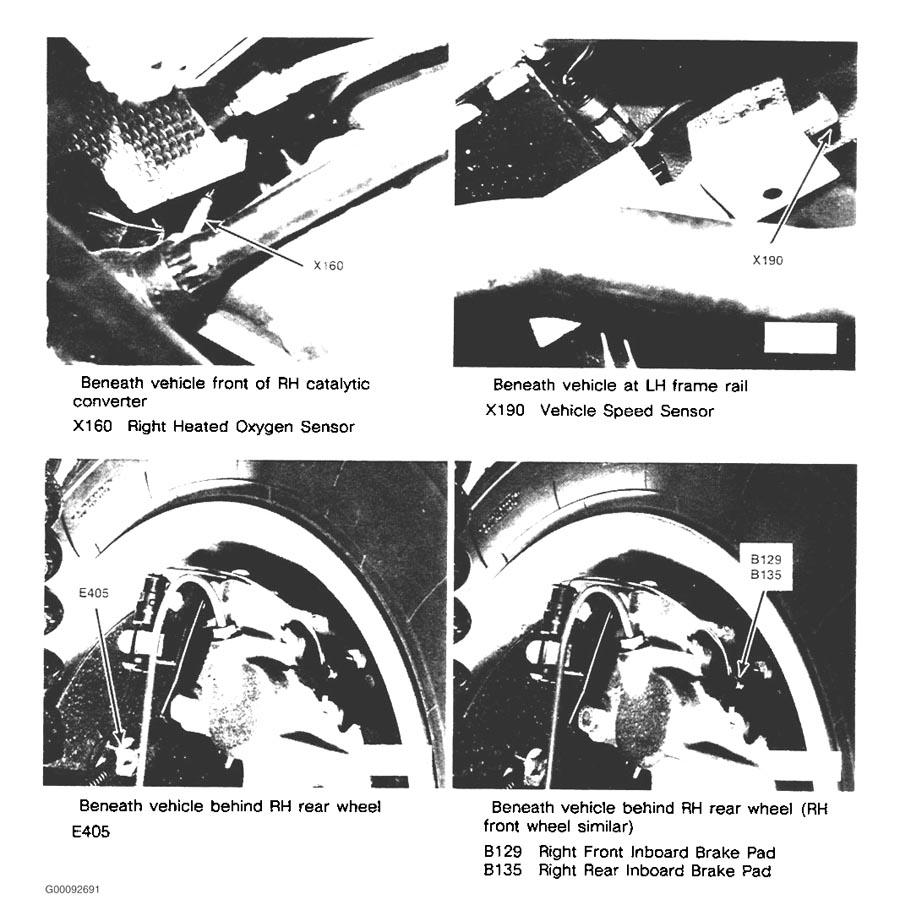

Fig 10: Component Locations (10 Of 32)

G00092691

Courtesy of LAND ROVER NORTH AMERICA, INC.

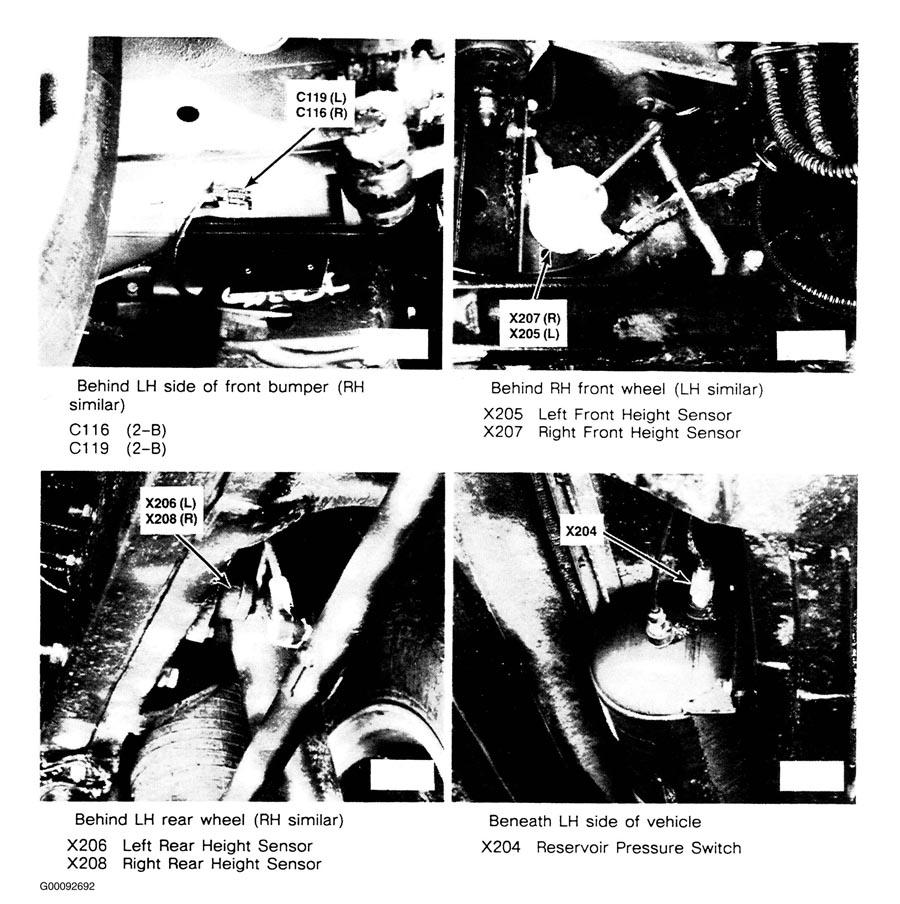

Fig 11: Component Locations (11 Of 32)

G00092692

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 12: Component Locations (12 Of 32)

G00092693

Courtesy of LAND ROVER NORTH AMERICA, INC.

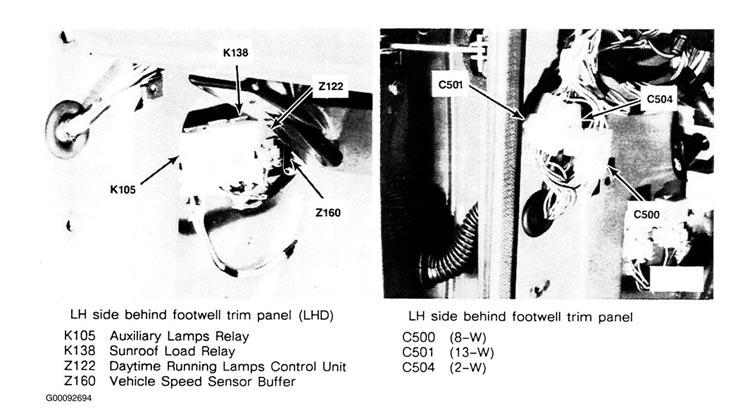

Fig 13: Component Locations (13 Of 32)

G00092694

Courtesy of LAND ROVER NORTH AMERICA, INC.

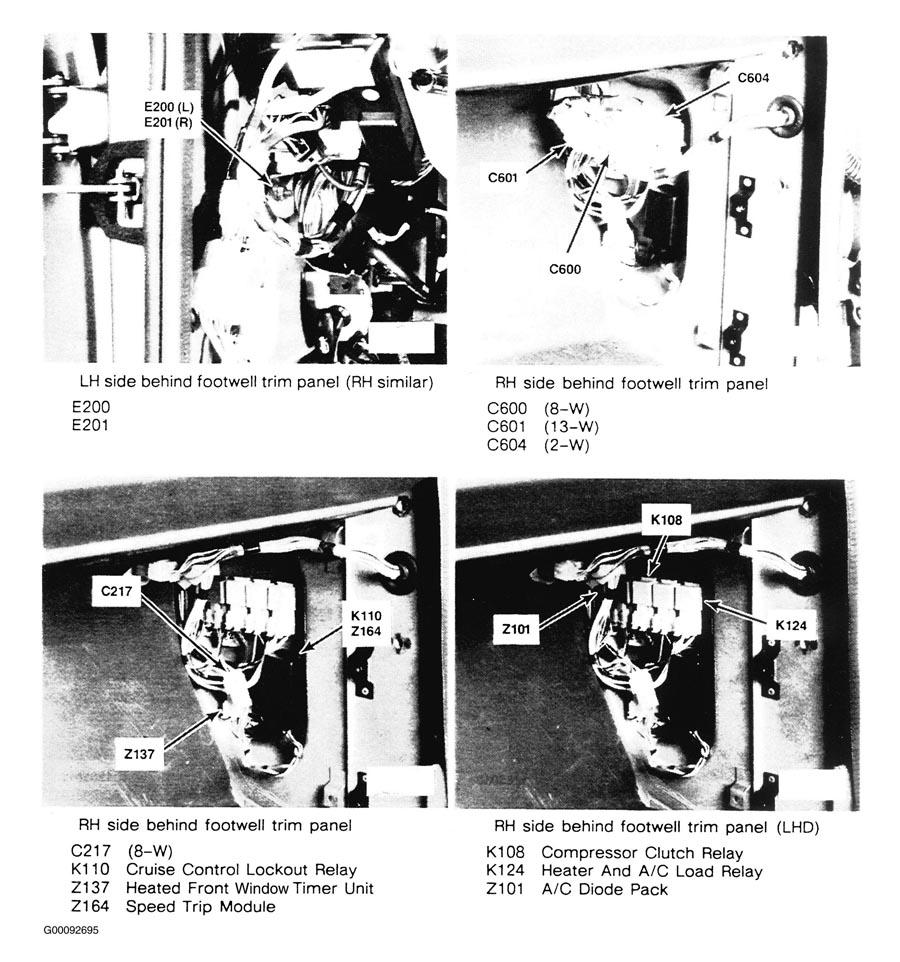

Fig 14: Component Locations (14 Of 32)

G00092695

Courtesy of LAND ROVER NORTH AMERICA, INC.

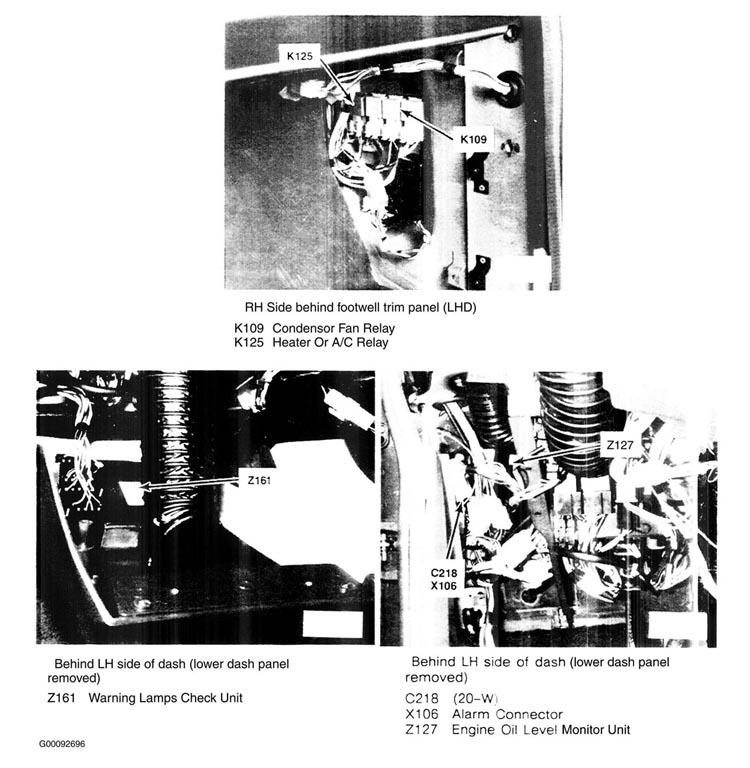

Fig 15: Component Locations (15 Of 32)

G00092696

Courtesy of LAND ROVER NORTH AMERICA, INC.

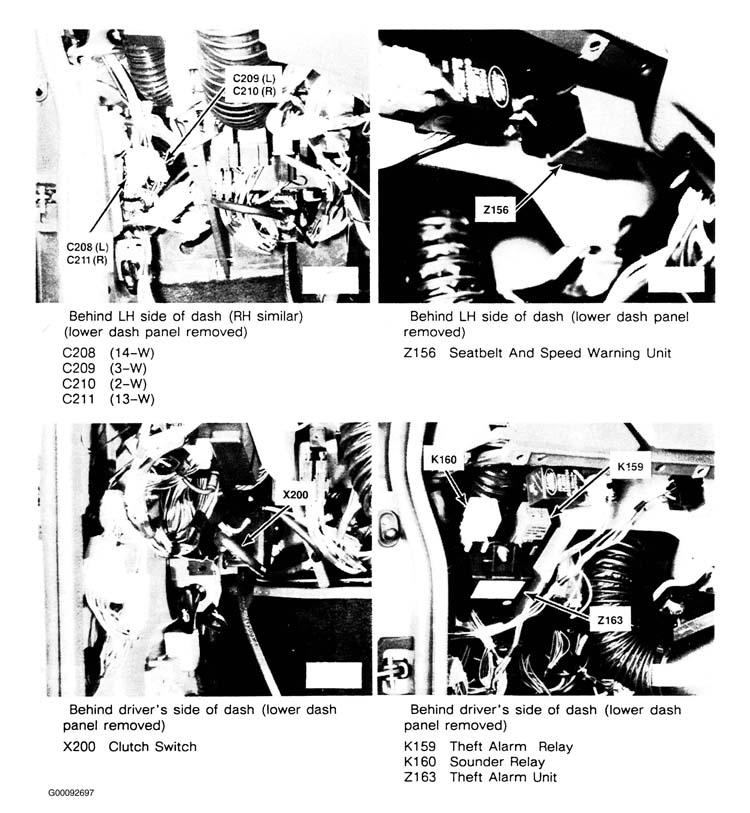

Fig 16: Component Locations (16 Of 32)

G00092697

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 17: Component Locations (17 Of 32)

G00092698

Courtesy of LAND ROVER NORTH AMERICA, INC.

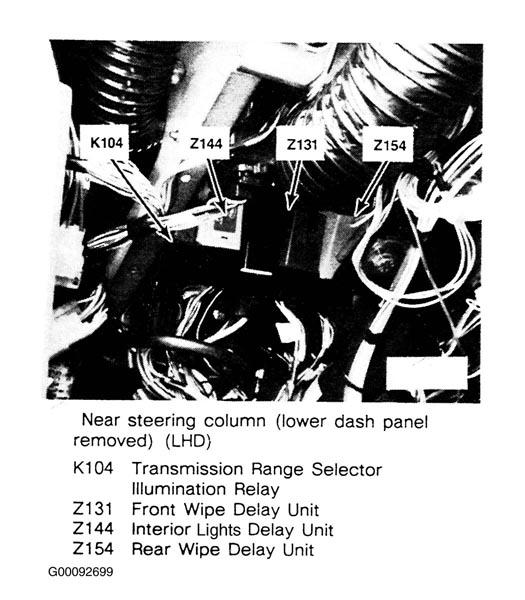

Fig 18: Component Locations (18 Of 32)

G00092699

Courtesy of LAND ROVER NORTH AMERICA, INC.

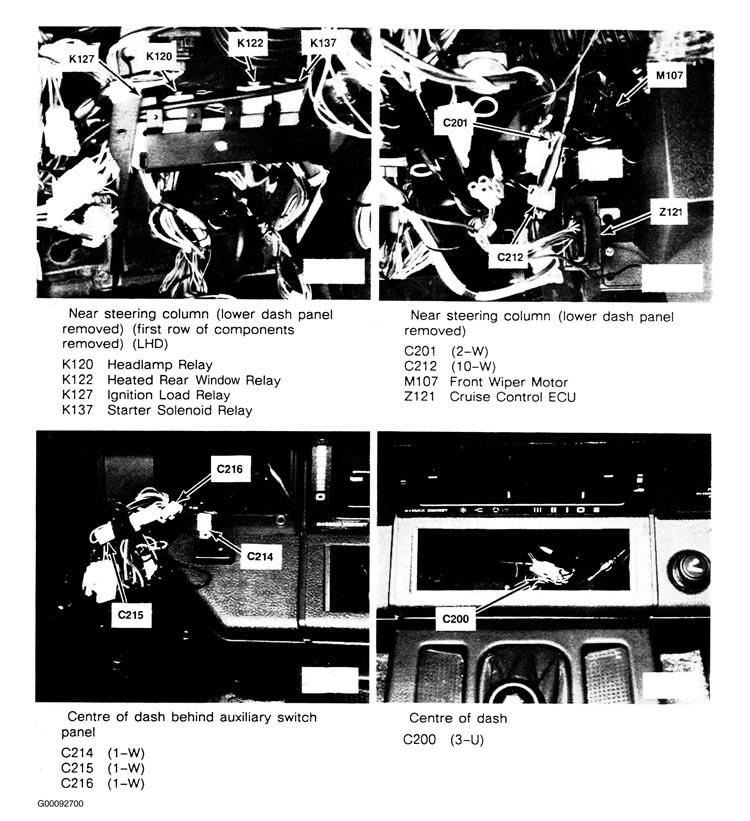

Fig 19: Component Locations (19 Of 32)

G00092700

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 20: Component Locations (20 Of 32)

G00092701

Courtesy of LAND ROVER NORTH AMERICA, INC.

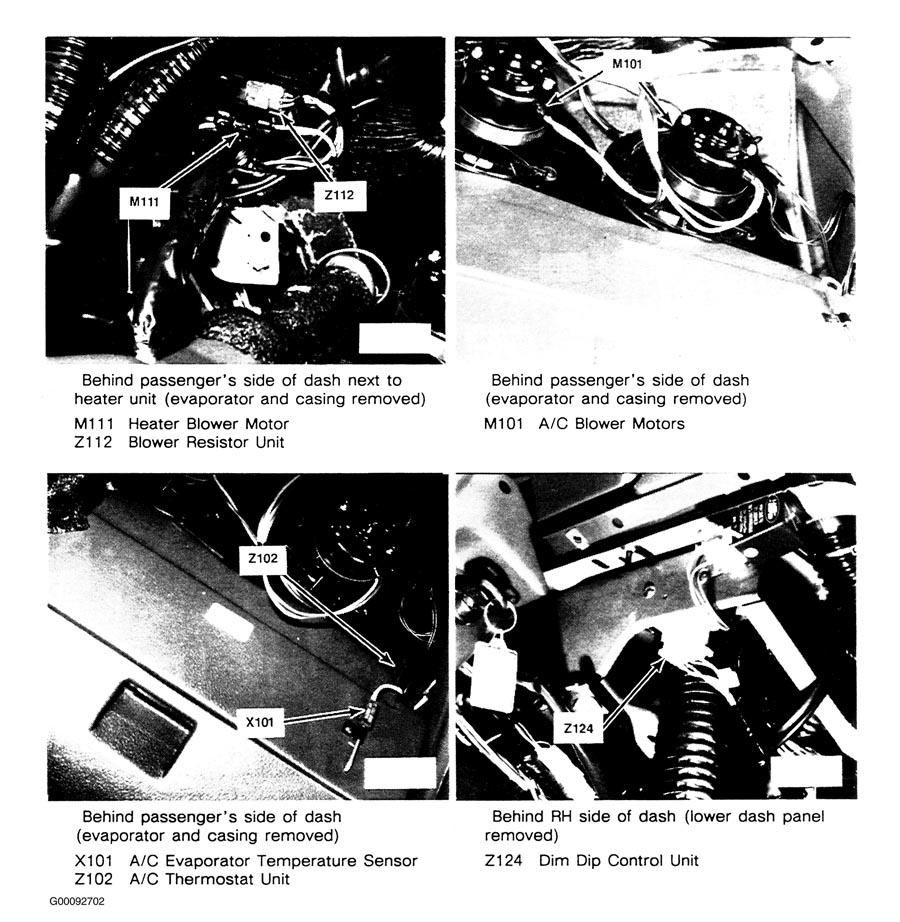

Fig 21: Component Locations (21 Of 32)

G00092702

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 22: Component Locations (22 Of 32)

G00092703

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 23: Component Locations (23 Of 32)

G00092704

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 24: Component Locations (24 Of 32)

G00092705

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 25: Component Locations (25 Of 32)

G00092706

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 26: Component Locations (26 Of 32)

G00092707

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 27: Component Locations (27 Of 32)

G00092708

Courtesy of LAND ROVER NORTH AMERICA, INC.

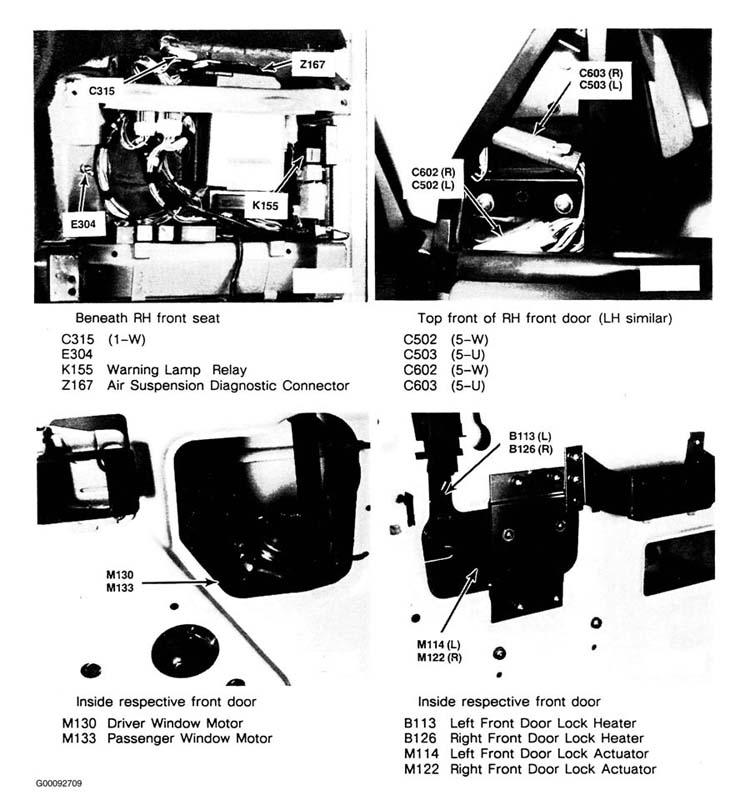

Fig 28: Component Locations (28 Of 32)

G00092709

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 29: Component Locations (29 Of 32)

G00092710

Courtesy of LAND ROVER NORTH AMERICA, INC.

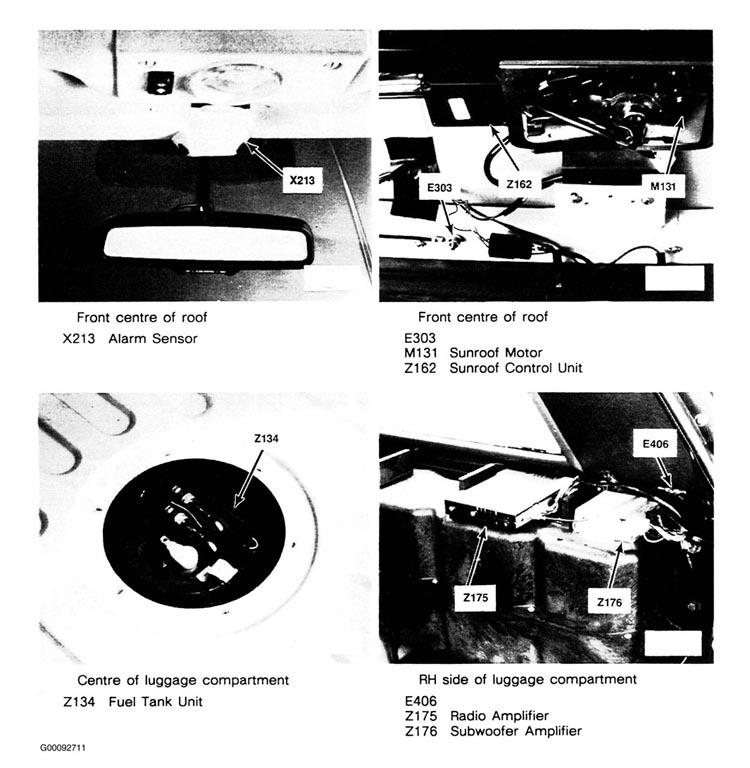

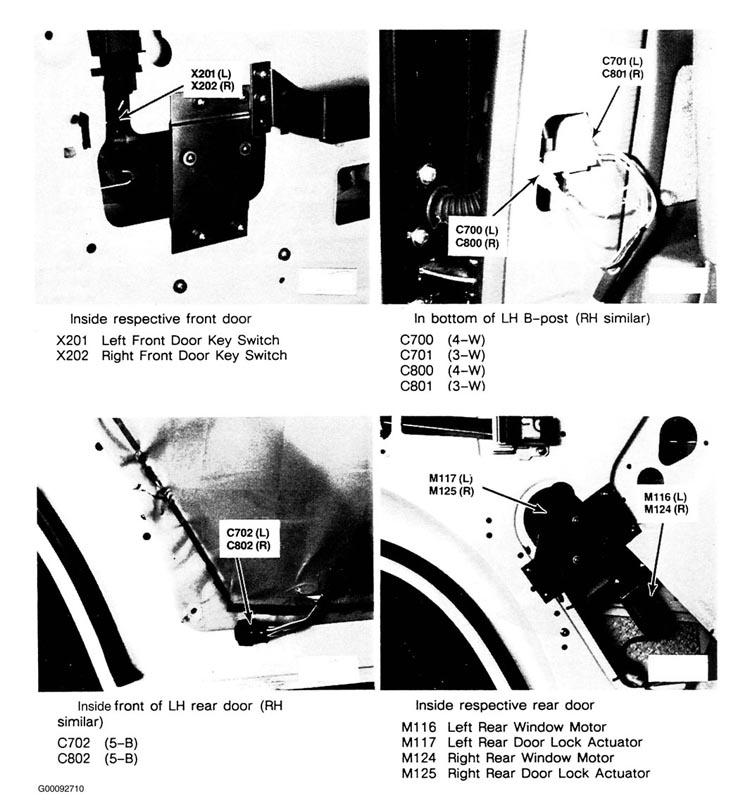

Fig 30: Component Locations (30 Of 32)

G00092711

Courtesy of LAND ROVER NORTH AMERICA, INC.

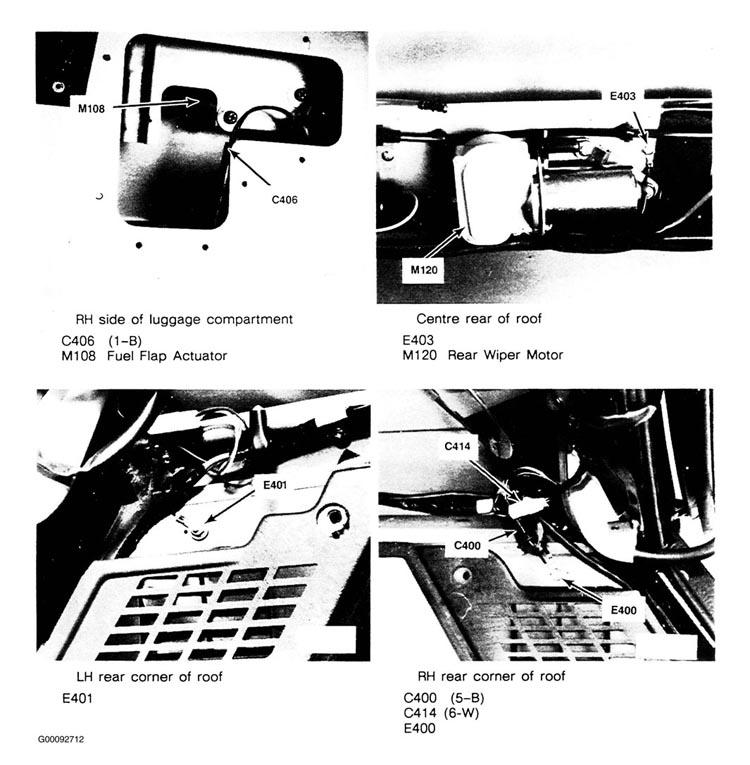

Fig 31: Component Locations (31 Of 32)

G00092712

Courtesy of LAND ROVER NORTH AMERICA, INC.

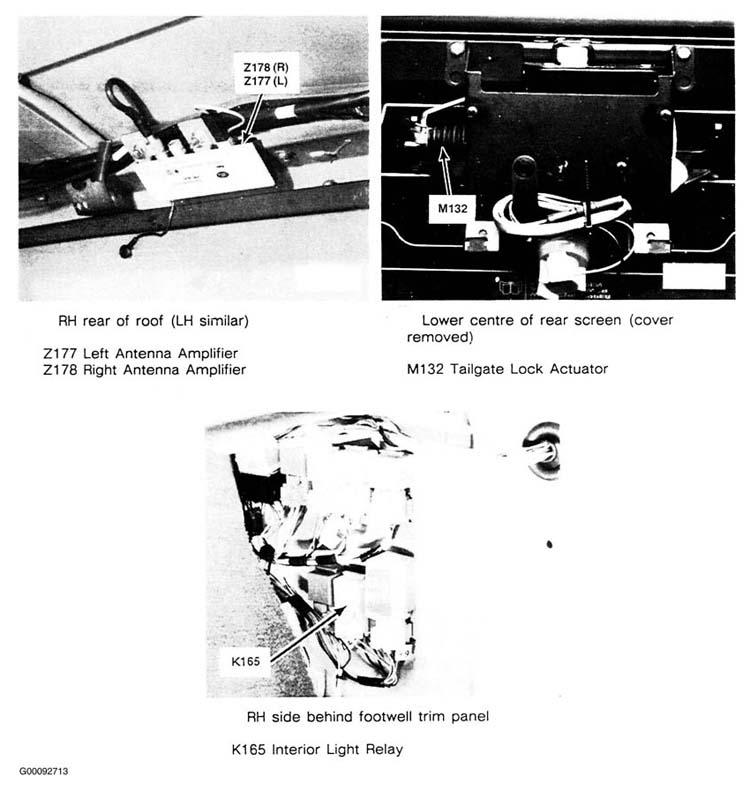

Fig 32: Component Locations (32 Of 32)

G00092713

Courtesy of LAND ROVER NORTH AMERICA, INC.
