Brushes & Springs Test

Check brush springs and ensure brushes move freely in holders. See Fig 1 . Clean the brushes with a solvent moistened cloth, if required.

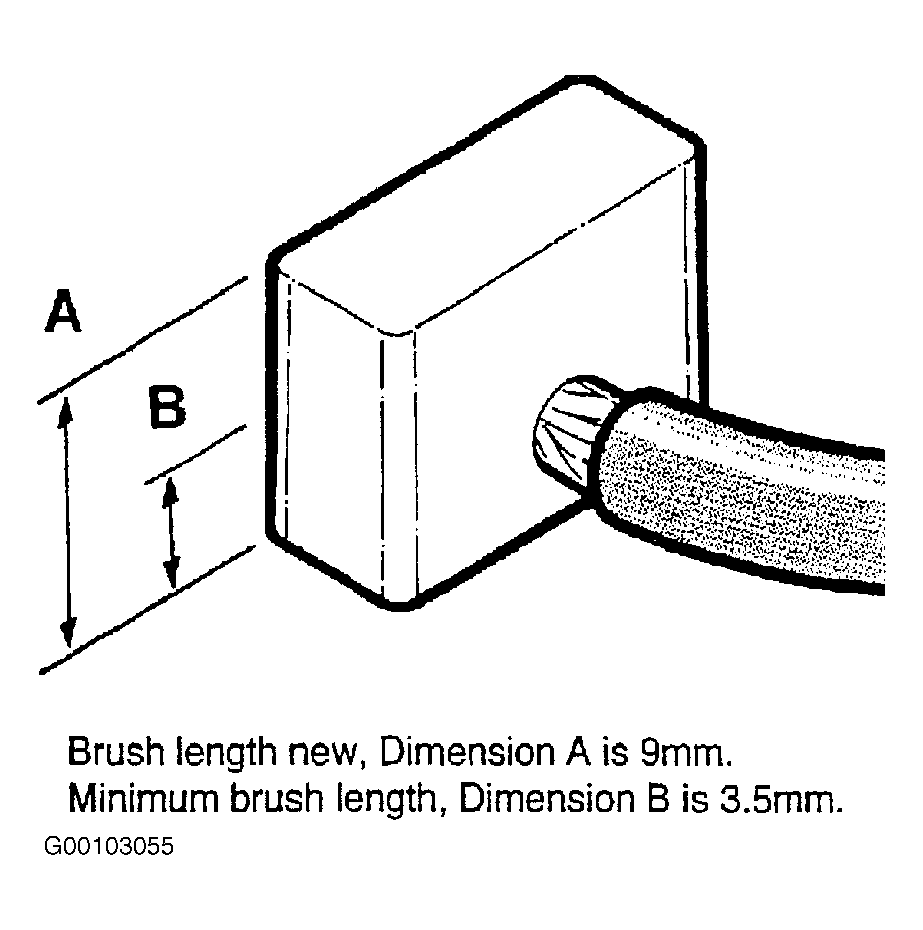

Fig 1: Testing Brushes & Springs

Courtesy of LAND ROVER NORTH AMERICA, INC.
