Fault Finding

NOTE: For correct wiring installation, see Figure . If fault has not been located, repair by symptom. See SYMPTOM INDEX table under SYSTEM TESTS.

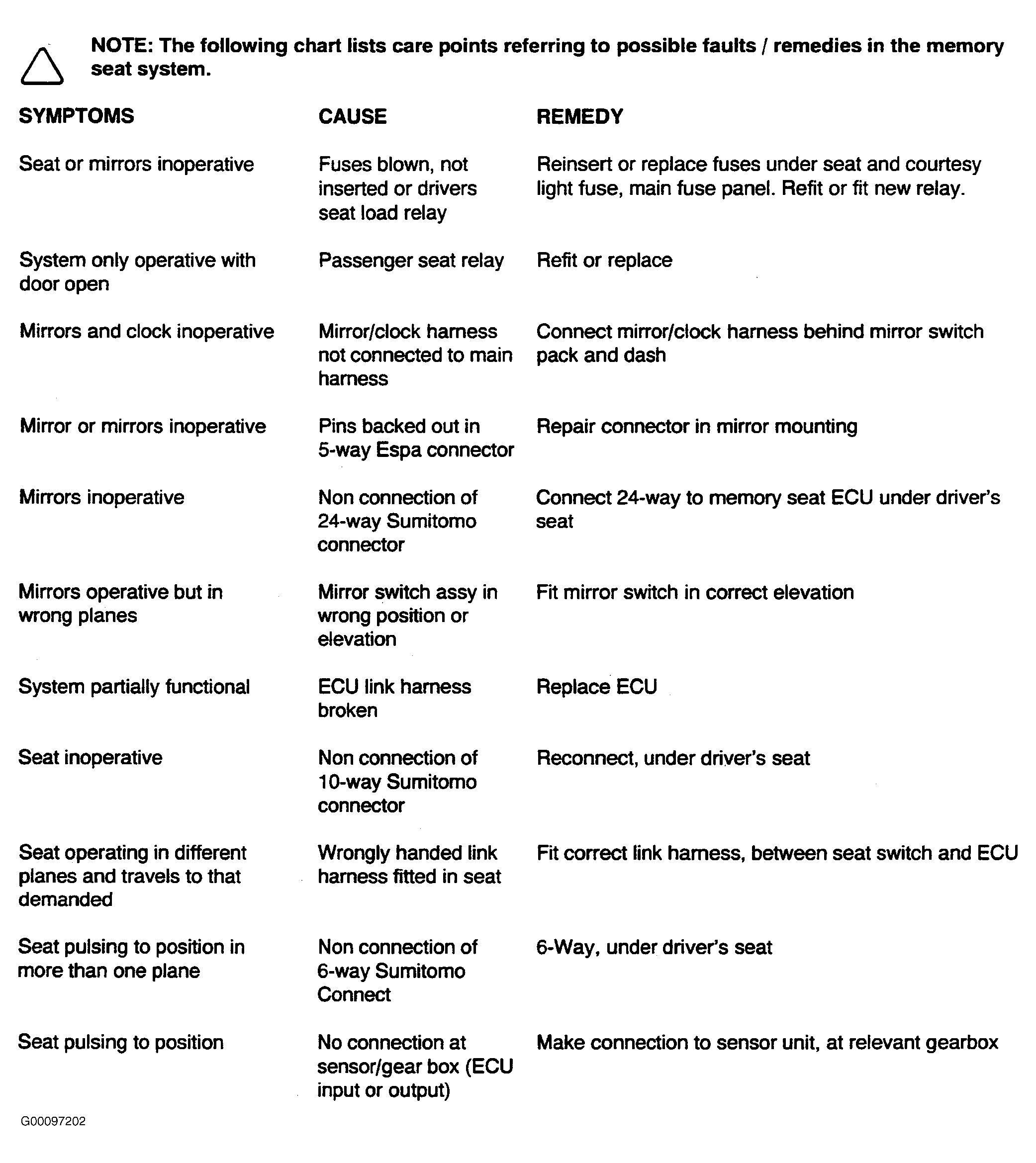

Fig 1: Memory Seat & Mirror System - Fault Finding Chart

Courtesy of LAND ROVER NORTH AMERICA, INC.
