Component Locations

Fig 1: Locating Serial Link Connector (1993-94)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 2: Locating Serial Link Connector (1995)

Courtesy of LAND ROVER NORTH AMERICA, INC.

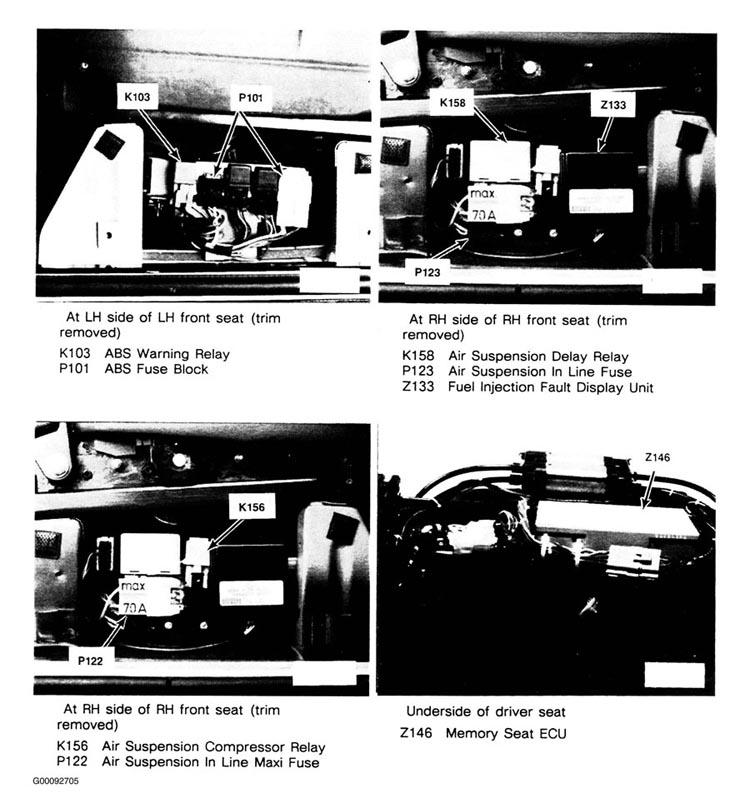

Fig 3: Identifying Fuel Injection Fault Display Unit Location (View 1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

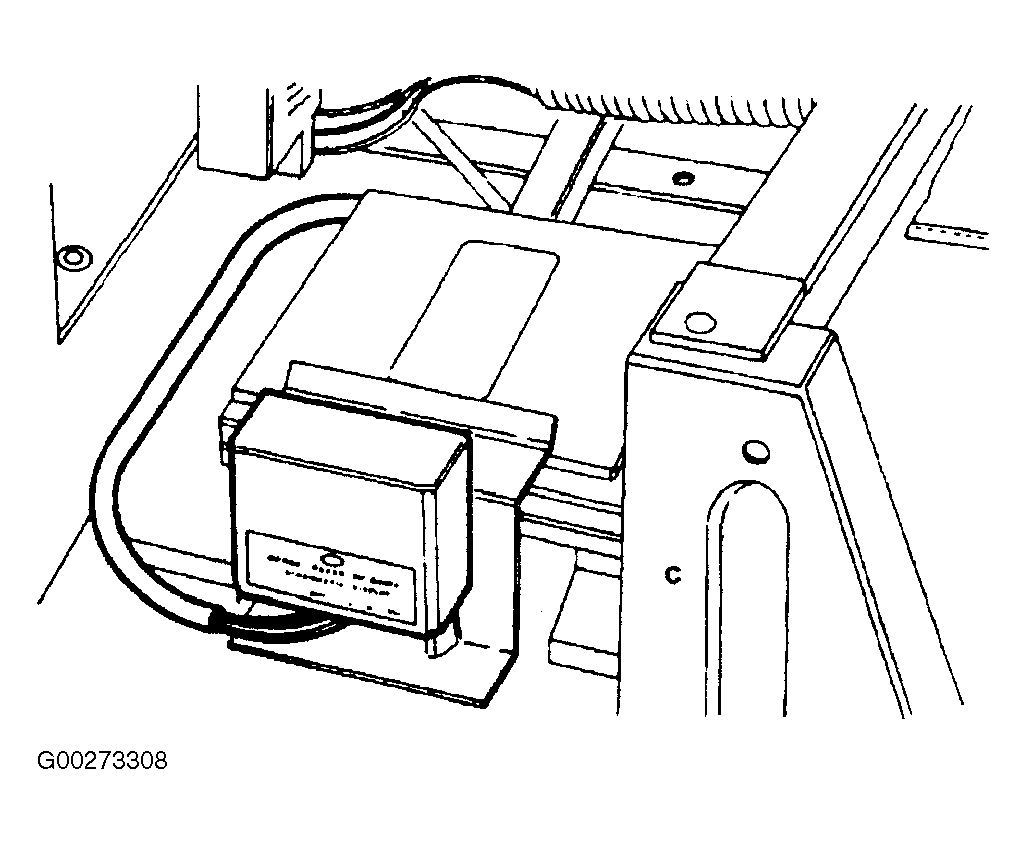

Fig 4: Identifying Fuel Injection Fault Display Unit Location (View 2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

ENGINE CONTROL MODULE

Model			Location
Defender 110			Under Right Side Of Instrument Panel
Defender 90
1994
With A/C			Right Side Of A/C Evaporator
Without A/C			Under Right Side Of Instrument Panel
1995			Under Right Front Seat
Discovery			Behind Right Front Kick Panel
