Diagnostic Procedure

Test fuel temperature sensor. Perform Test "F". See Fig 1 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas Diagnostic Equipment or Test Book.

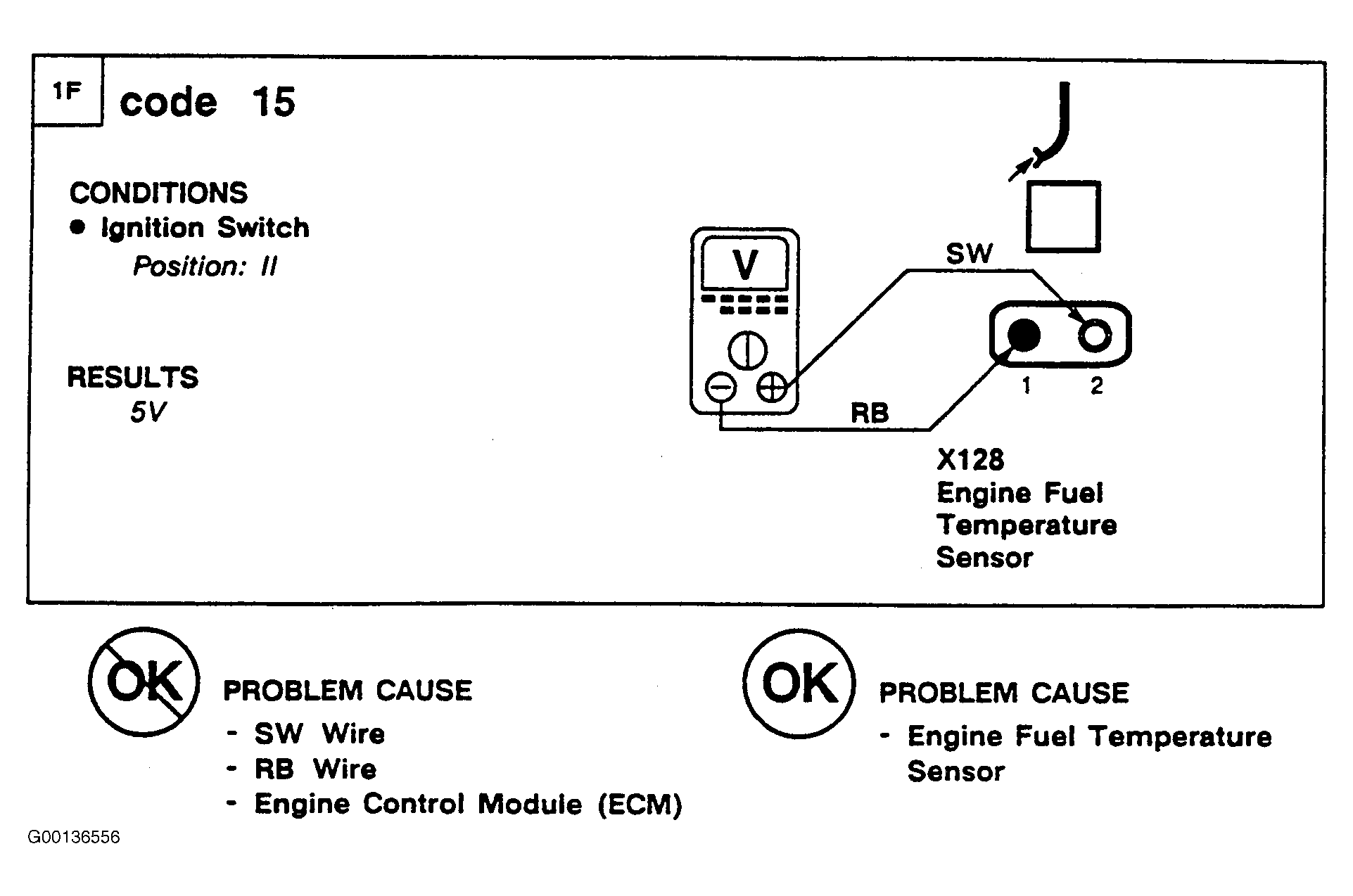

Fig 1: Fuel Temperature Sensor Fault Test "F"

Courtesy of LAND ROVER NORTH AMERICA, INC.
