Code 29: ECM Memory Fault

If fault Code 29 is detected, all other faults are unreliable and must therefore be ignored. Code 29 indicates an ECM memory fault. To test ECM, perform Test "I". See Fig 1 .

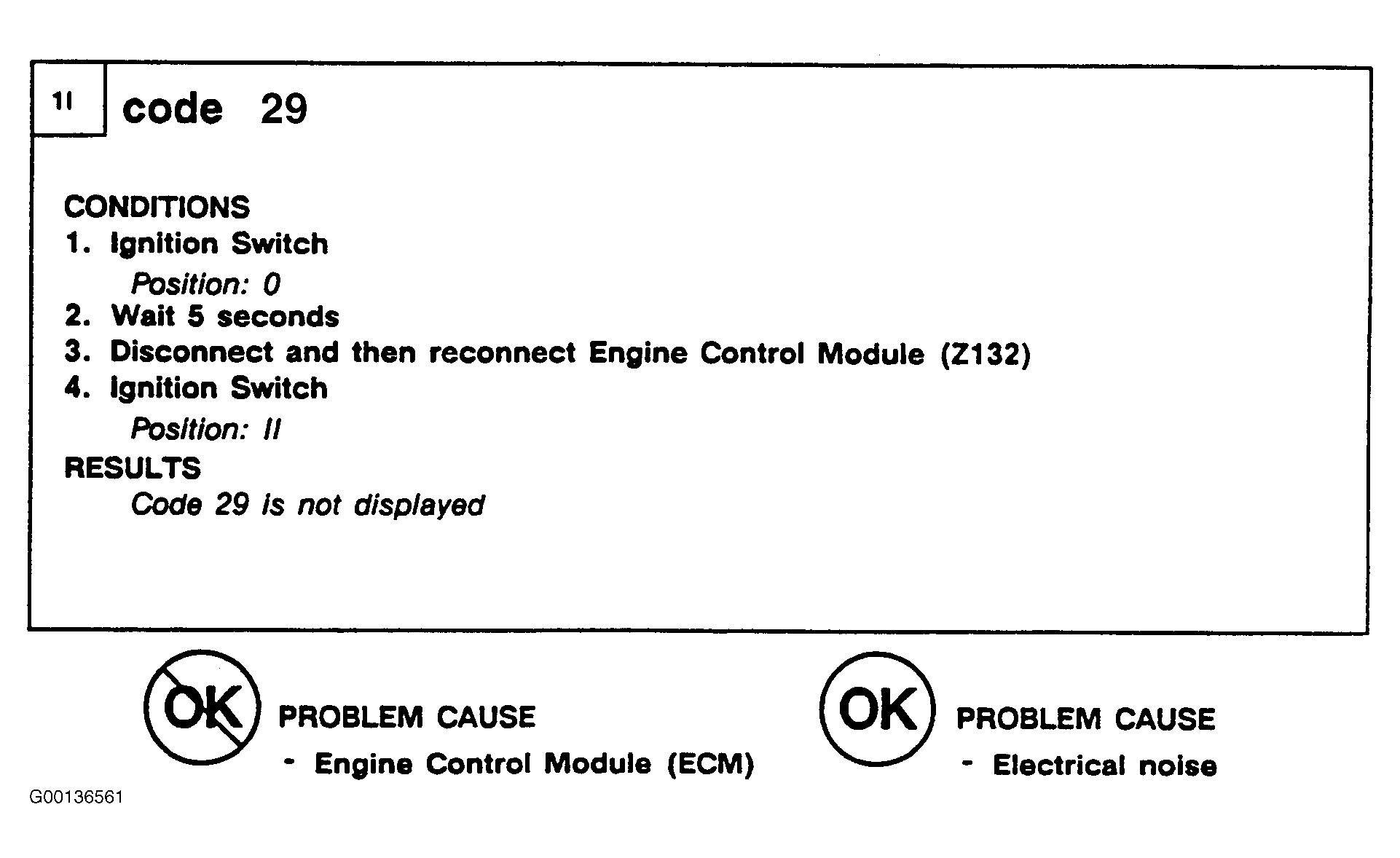

Fig 1: ECM MEMORY FAULT Test "I"

Courtesy of LAND ROVER NORTH AMERICA, INC.
