Diagnostic Procedure

NOTE: If speedometer does not operate, see appropriate INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT.

Test vehicle speed sensor signal. Perform Test "N". See Fig 1 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas Diagnostic Equipment or Test Book.

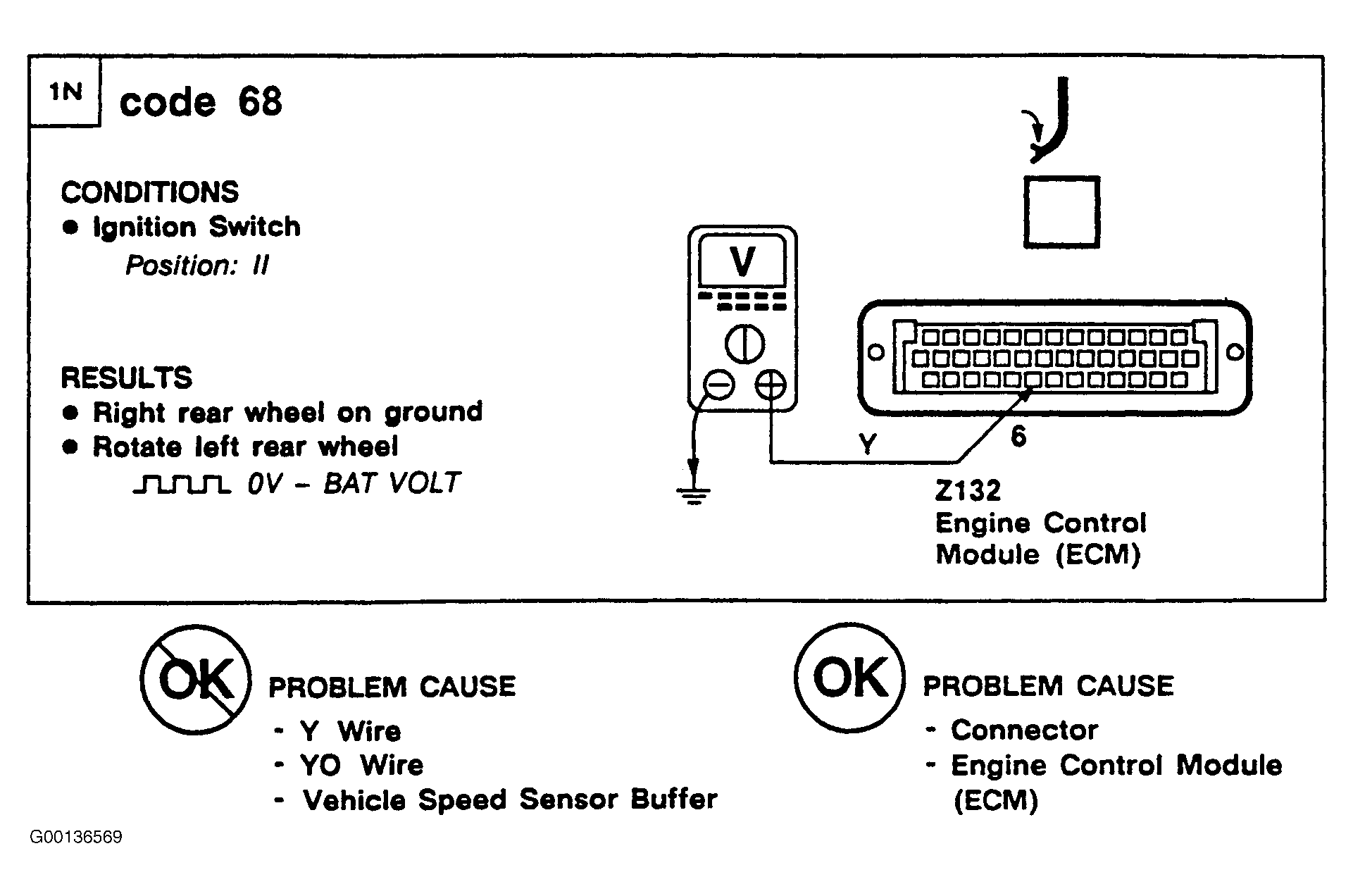

Fig 1: Vehicle Speed Sensor Input Fault Test "N"

Courtesy of LAND ROVER NORTH AMERICA, INC.
