Fuel Delivery
- Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE

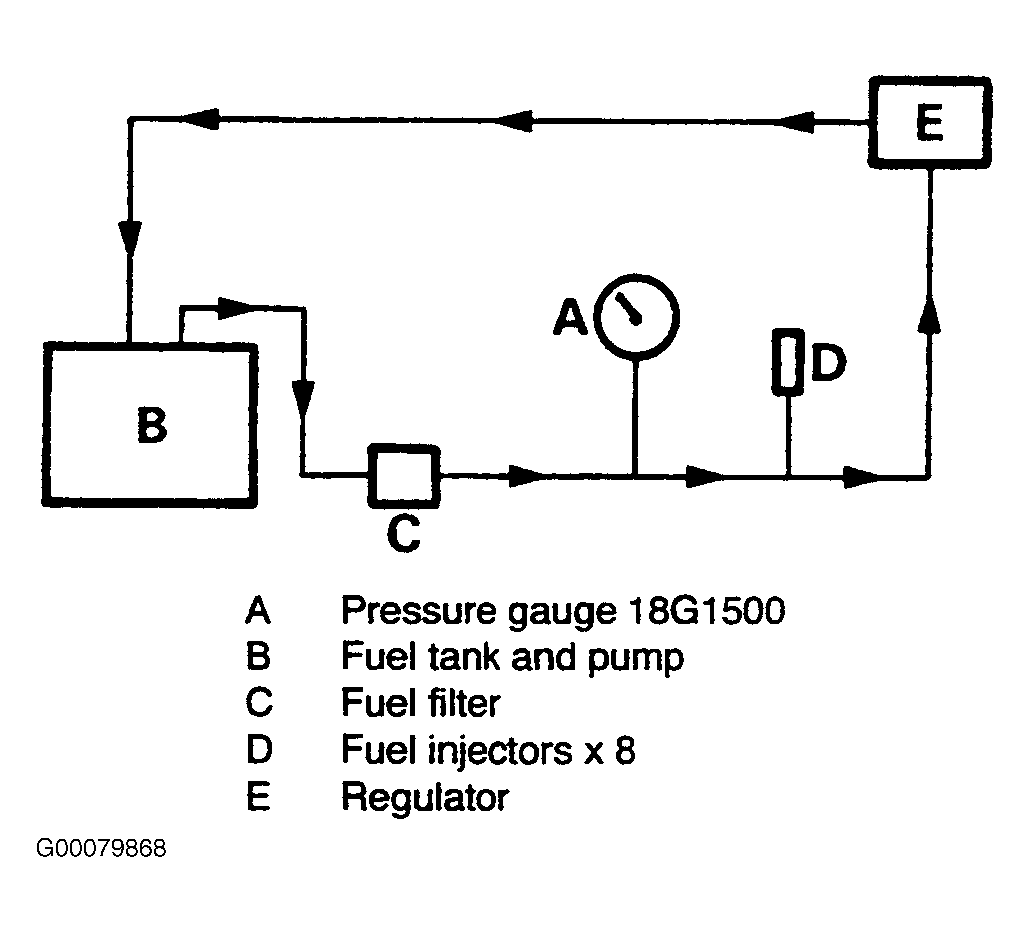

. Connect pressure gauge on outlet from fuel filter, located on chassis under right rear wheel arch. See Fig 1
.
Courtesy of LAND ROVER NORTH AMERICA, INC.
- Reconnect battery and turn ignition to ON position, while observing pressure gauge. Pressure should be 34-38 psi (2.39-2.67 kg/cm2
). Maximum allowable pressure drop is 10 psi (0.7 kg/cm2
) per minute.
- If pressure is low, ensure filter is not blocked and pump is operating correctly, recheck pressure. If pressure is still low replace pressure regulator. Start vehicle and check for leaks.
