Control Units

CONTROL UNITS

Component Component Location
Emission Maintenance Reminder Control Unit Behind front of center console.

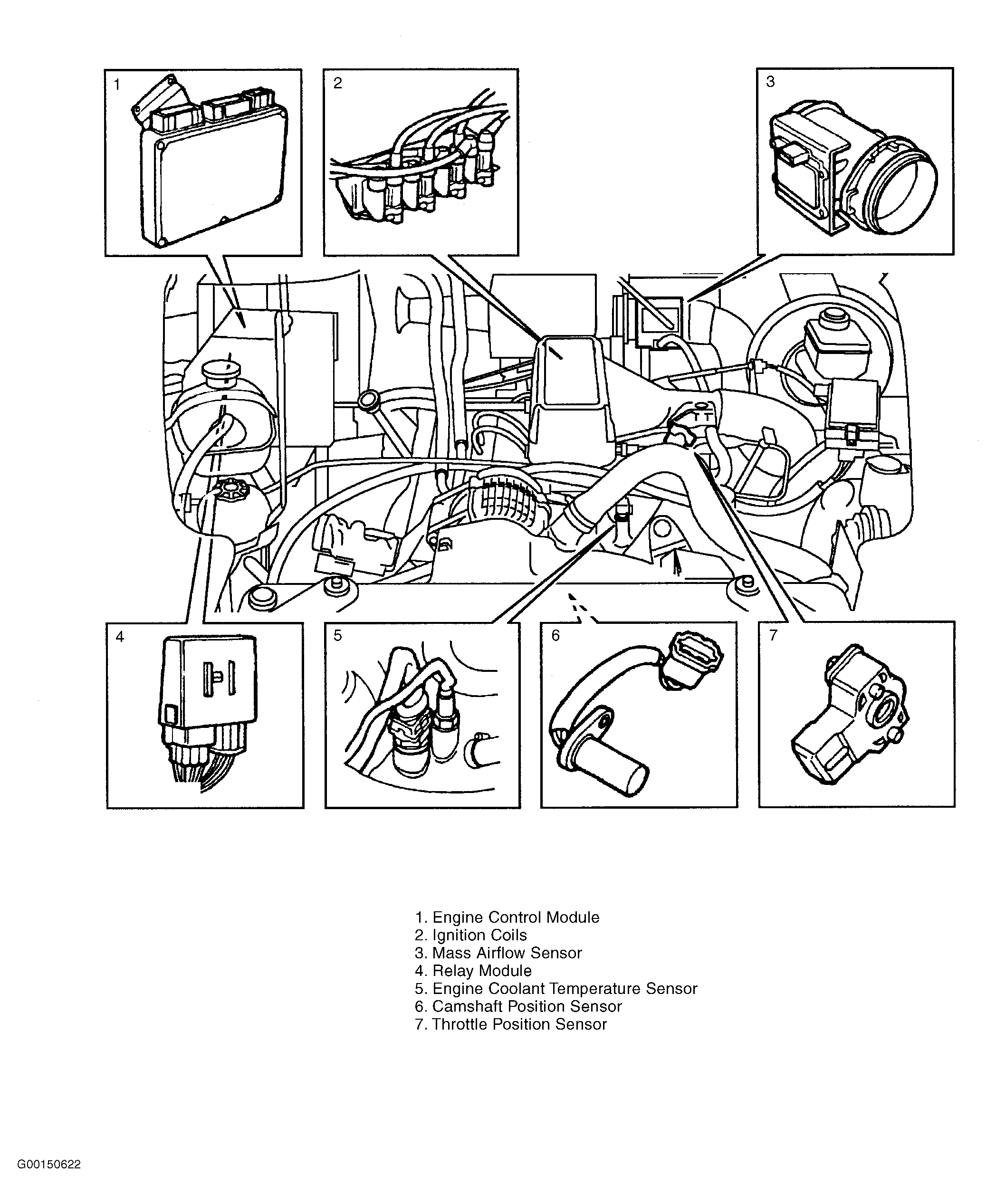

Engine Control Module At right rear of engine compartment. See Figure .
Immobilization ECU Behind instrument cluster.
Off-Road Detection ECU Under right front seat.
Relay Module At right rear of engine compartment. See Figure .
Warning Light Check Unit Behind dash trim panel.
