Firing Order

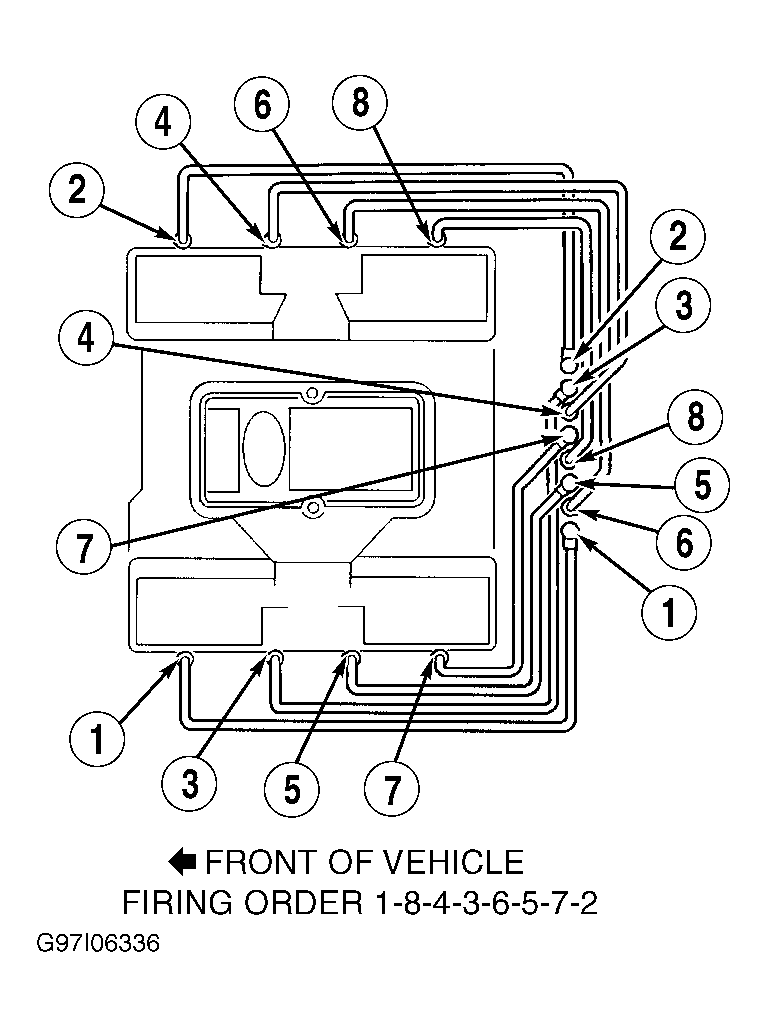

Fig 1: Firing Order & Coil Packs
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
