Air Mass Flow Meter Monitoring

For air mass flow meter monitoring information see Fig 1 -Fig 3 .

NOTE: This monitor covers information for DTC P0101-P0103.

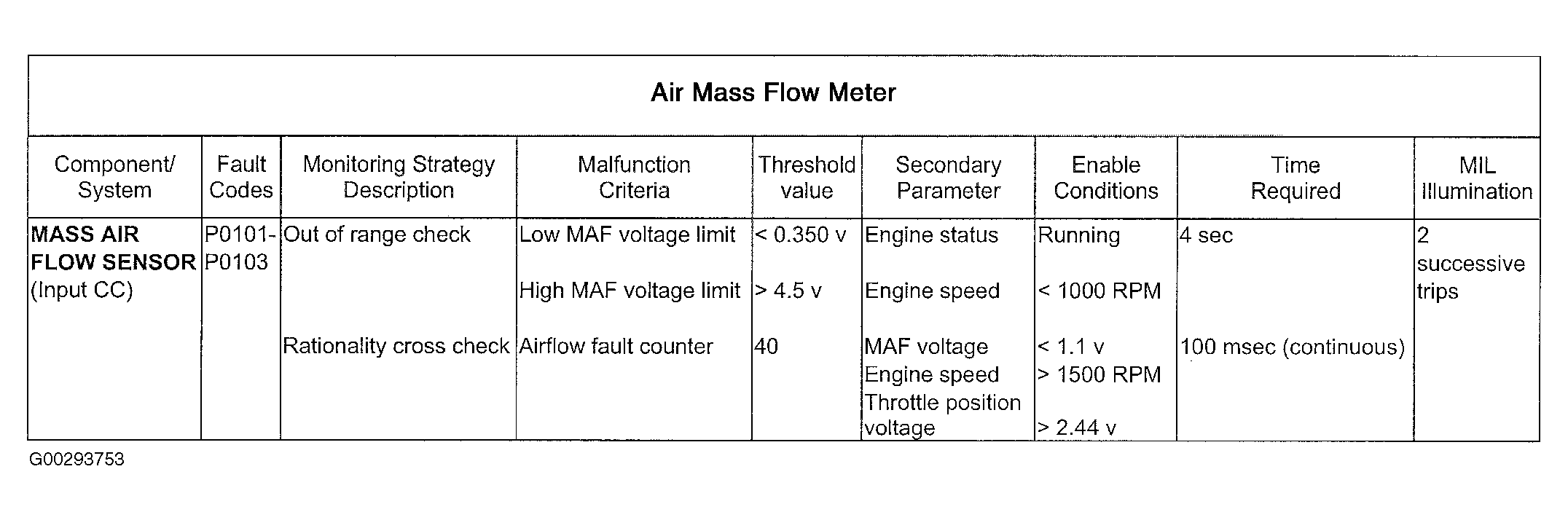

Fig 1: Air Mass Flow Meter Monitoring Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

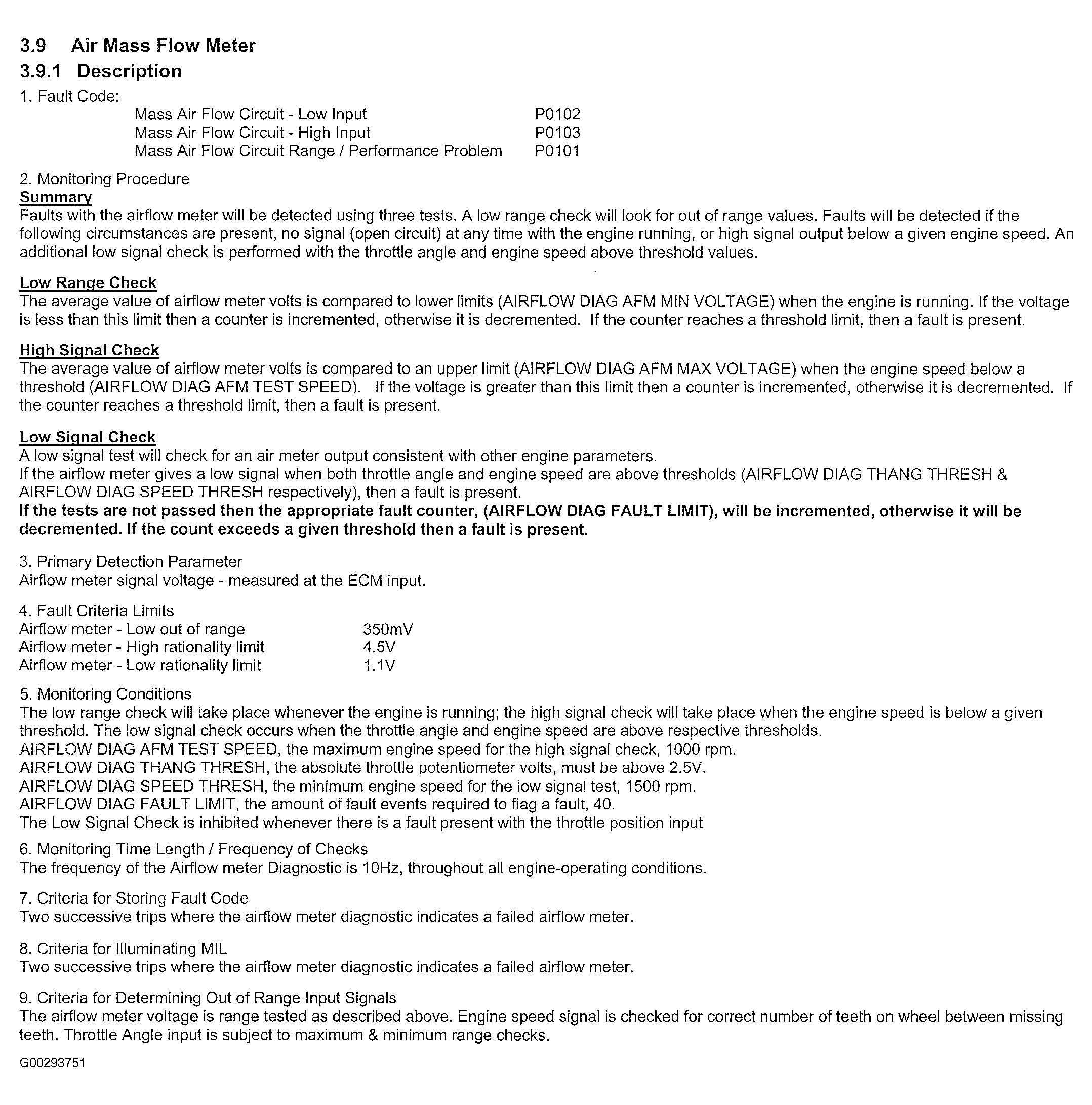

Fig 2: Air Mass Flow Meter Monitoring Structure

Courtesy of LAND ROVER NORTH AMERICA, INC.

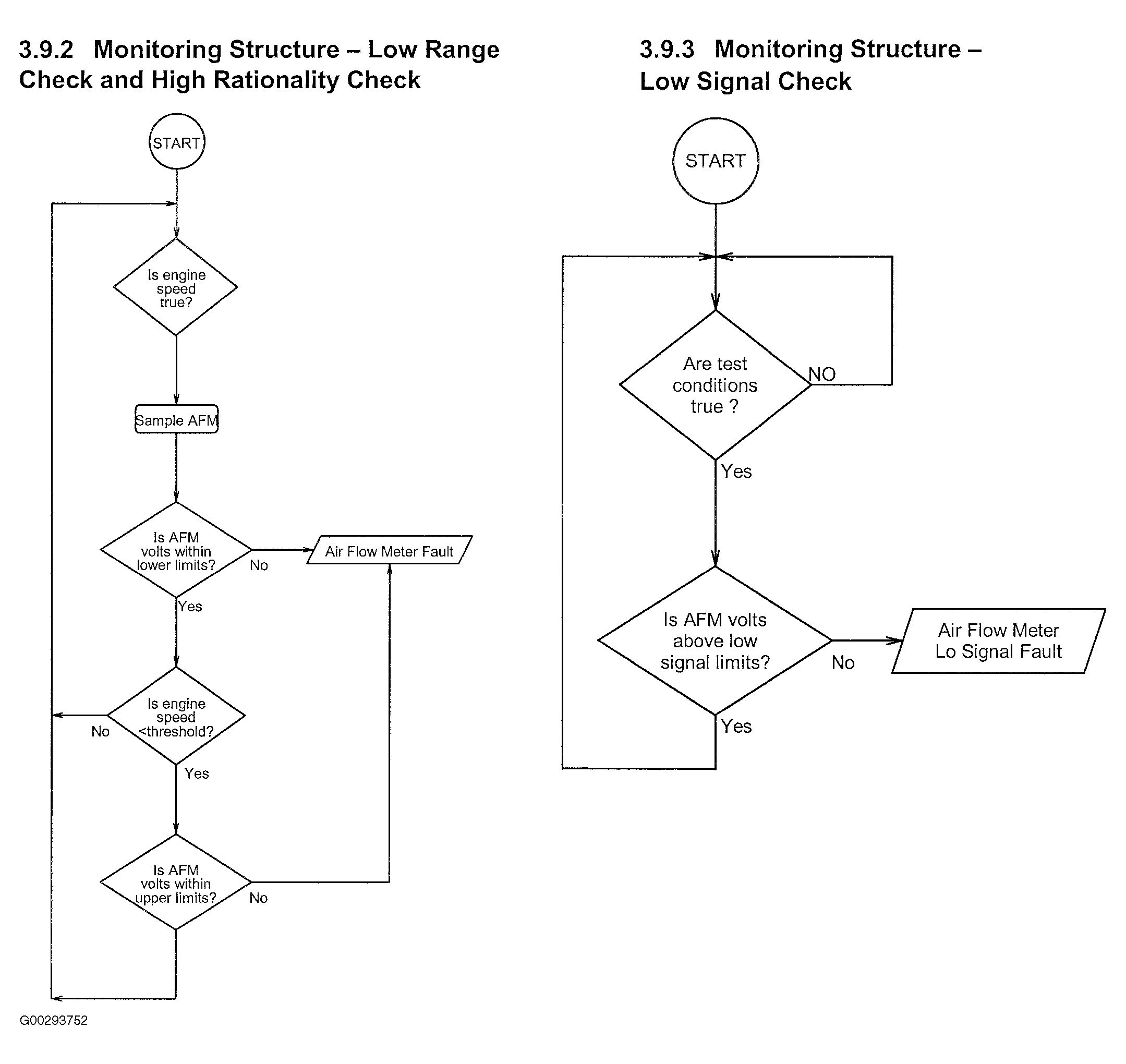

Fig 3: Air Mass Flow Meter Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
