Catalyst Monitoring

For catalyst monitoring information see Fig 1 -Fig 6 .

NOTE: This monitor covers information for DTC P0420 and P0430.

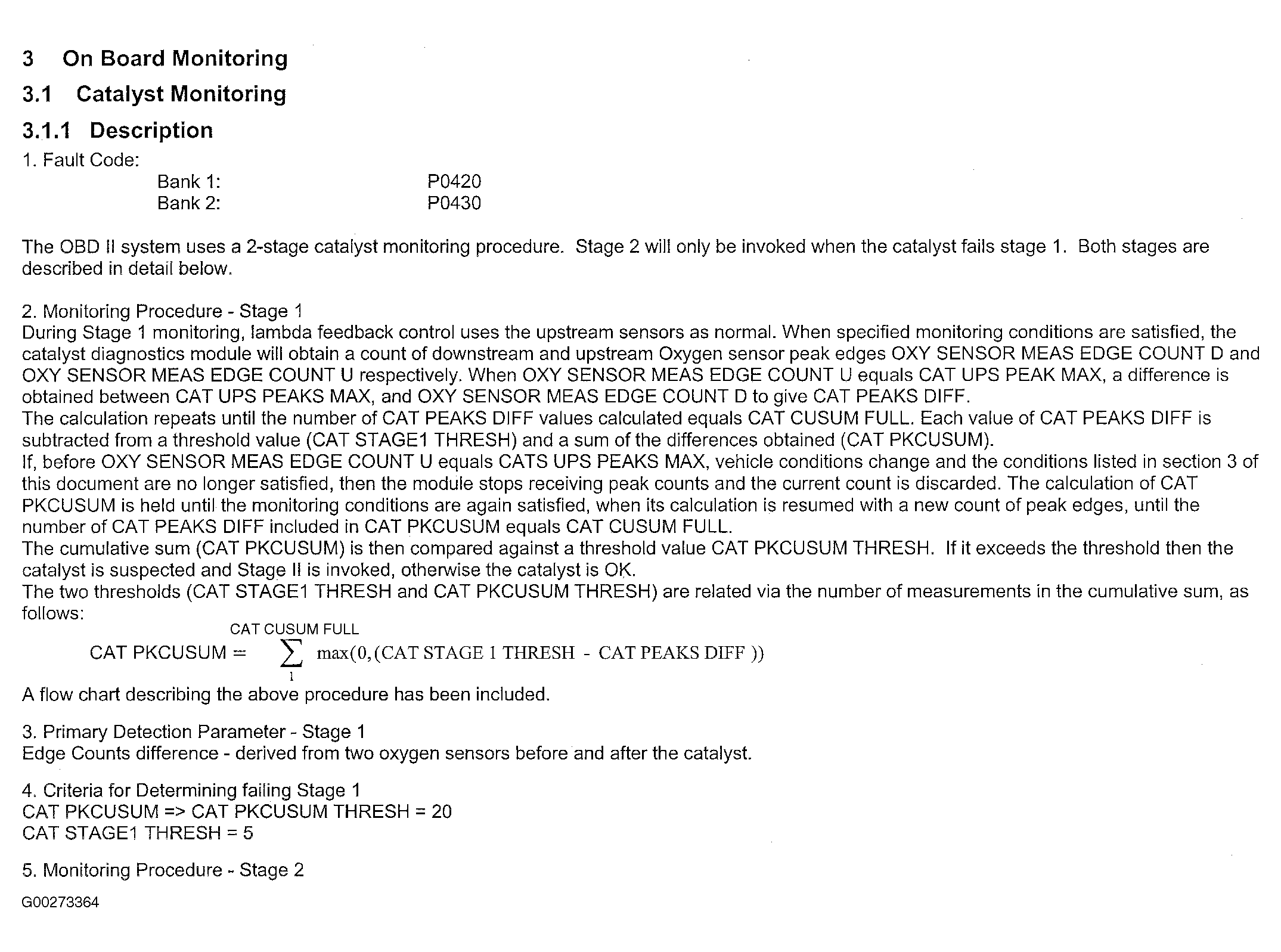

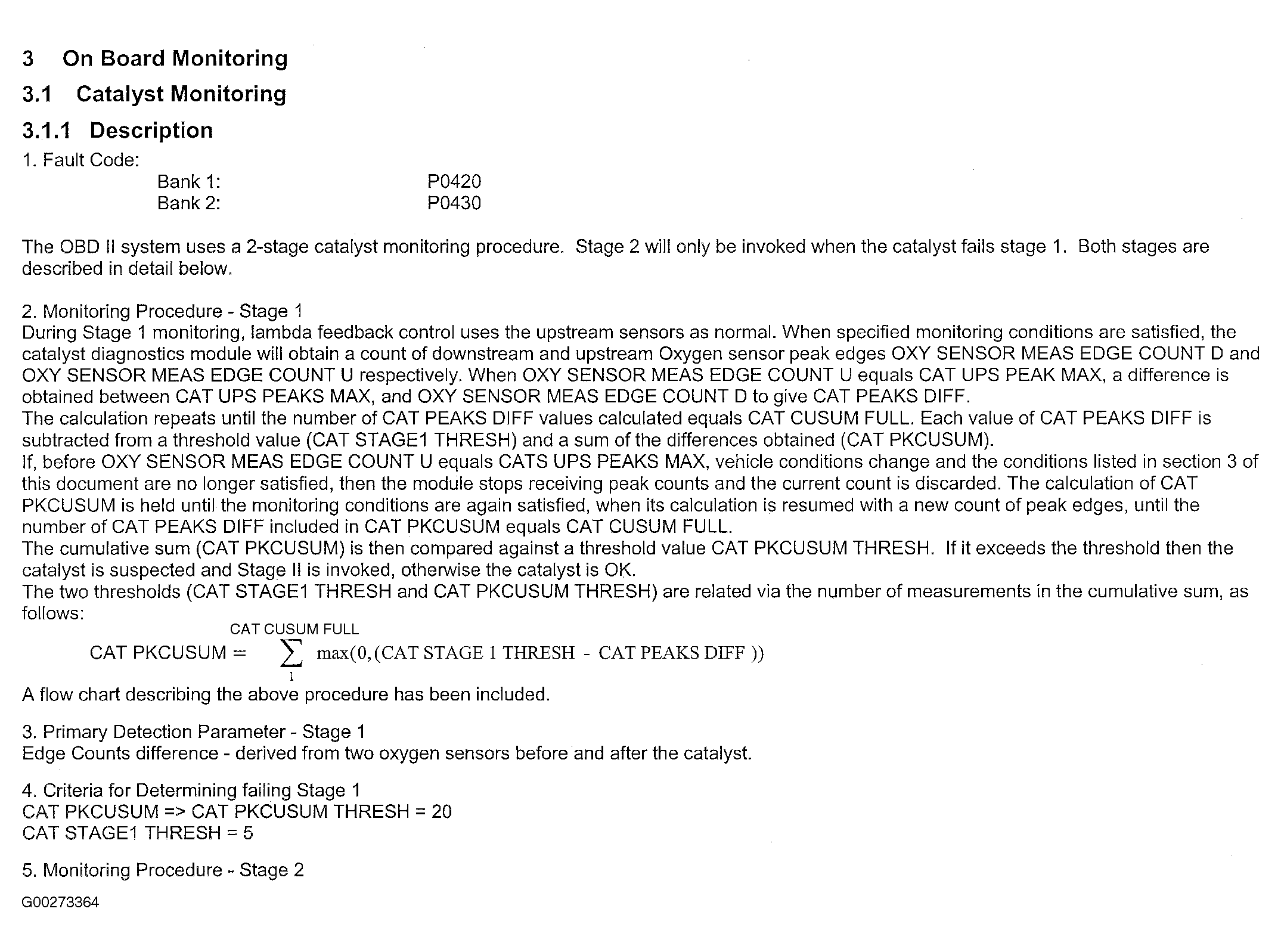

Fig 1: Catalyst Monitoring Description (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

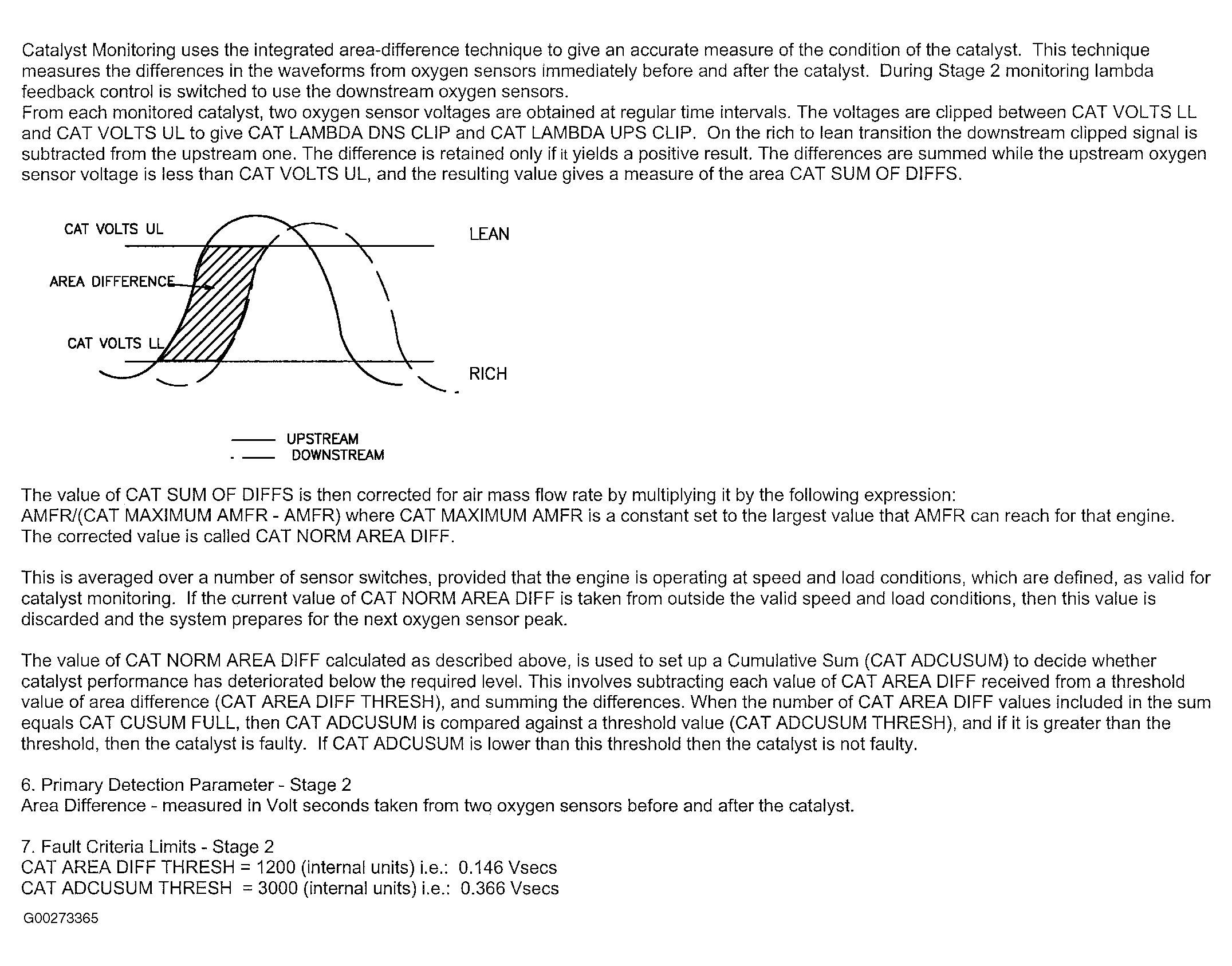

Fig 2: Catalyst Monitoring Description (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

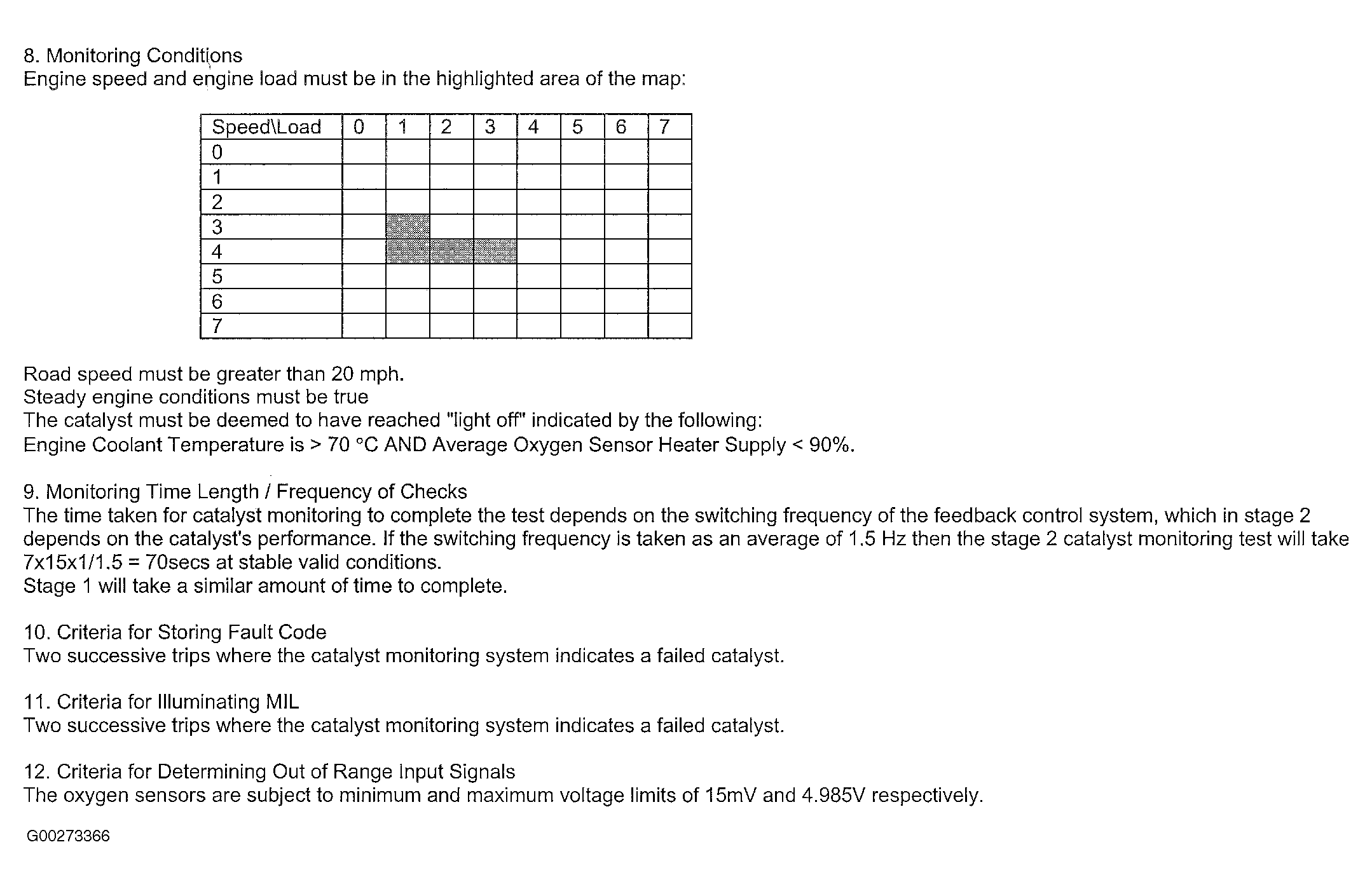

Fig 3: Catalyst Monitoring Description (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

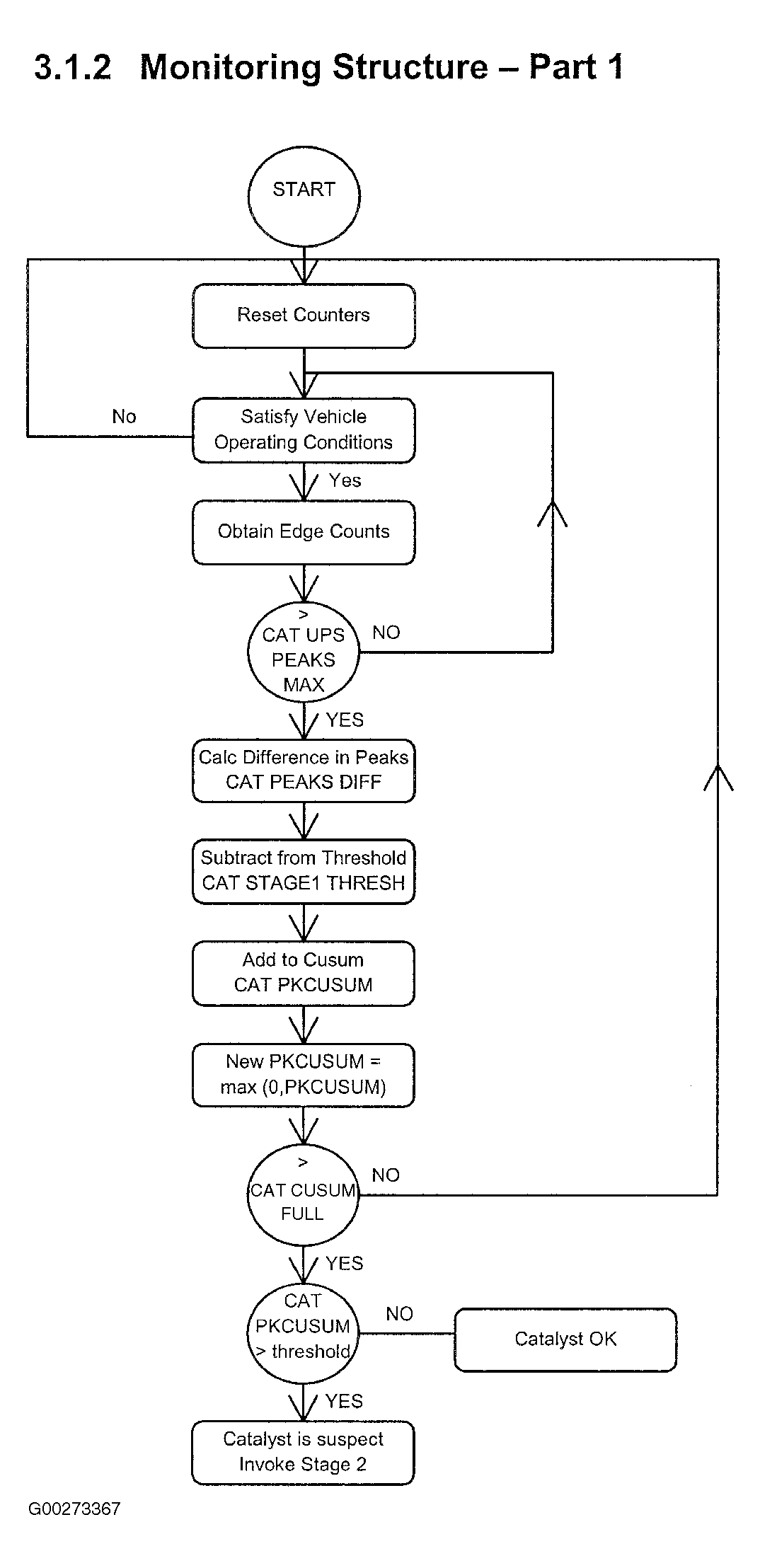

Fig 4: Catalyst Monitoring Structure (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

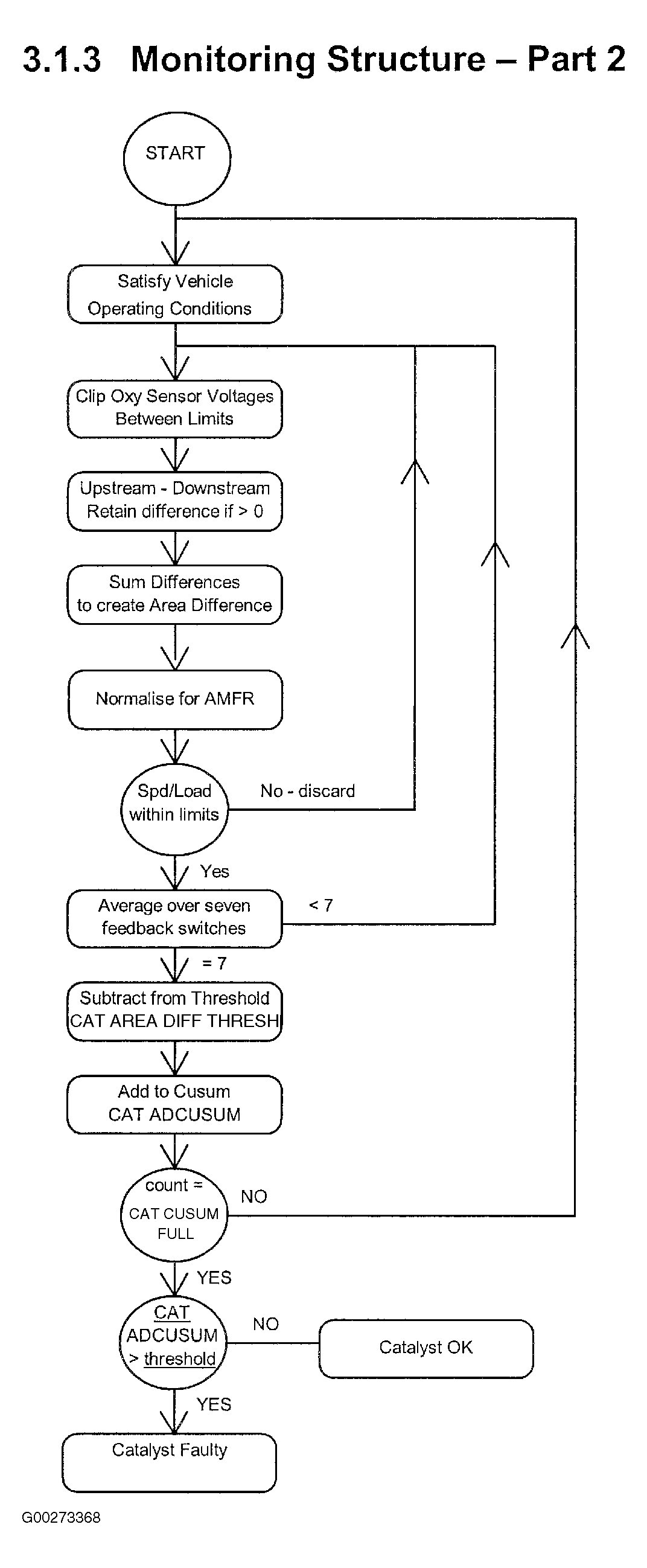

Fig 5: Catalyst Monitoring Structure (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

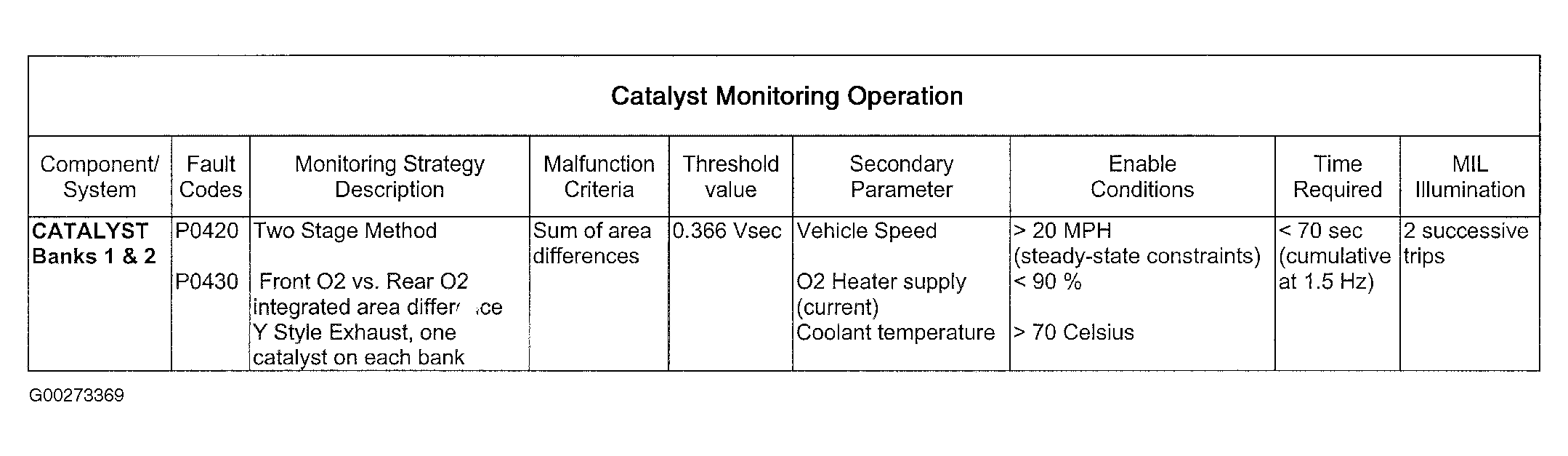

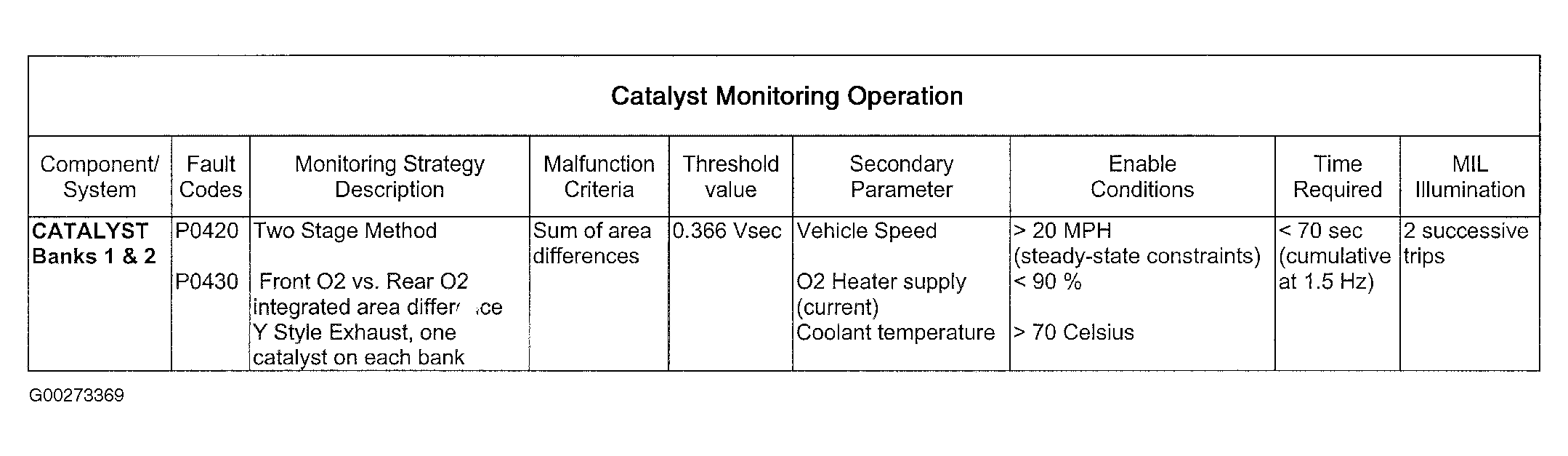

Fig 6: Catalyst Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
