Coolant Temperature Sensor Monitoring

For coolant temperature sensor monitoring information see Fig 1 -Fig 4 .

NOTE: This monitor covers information for DTC P0116-P0118 and P0125.

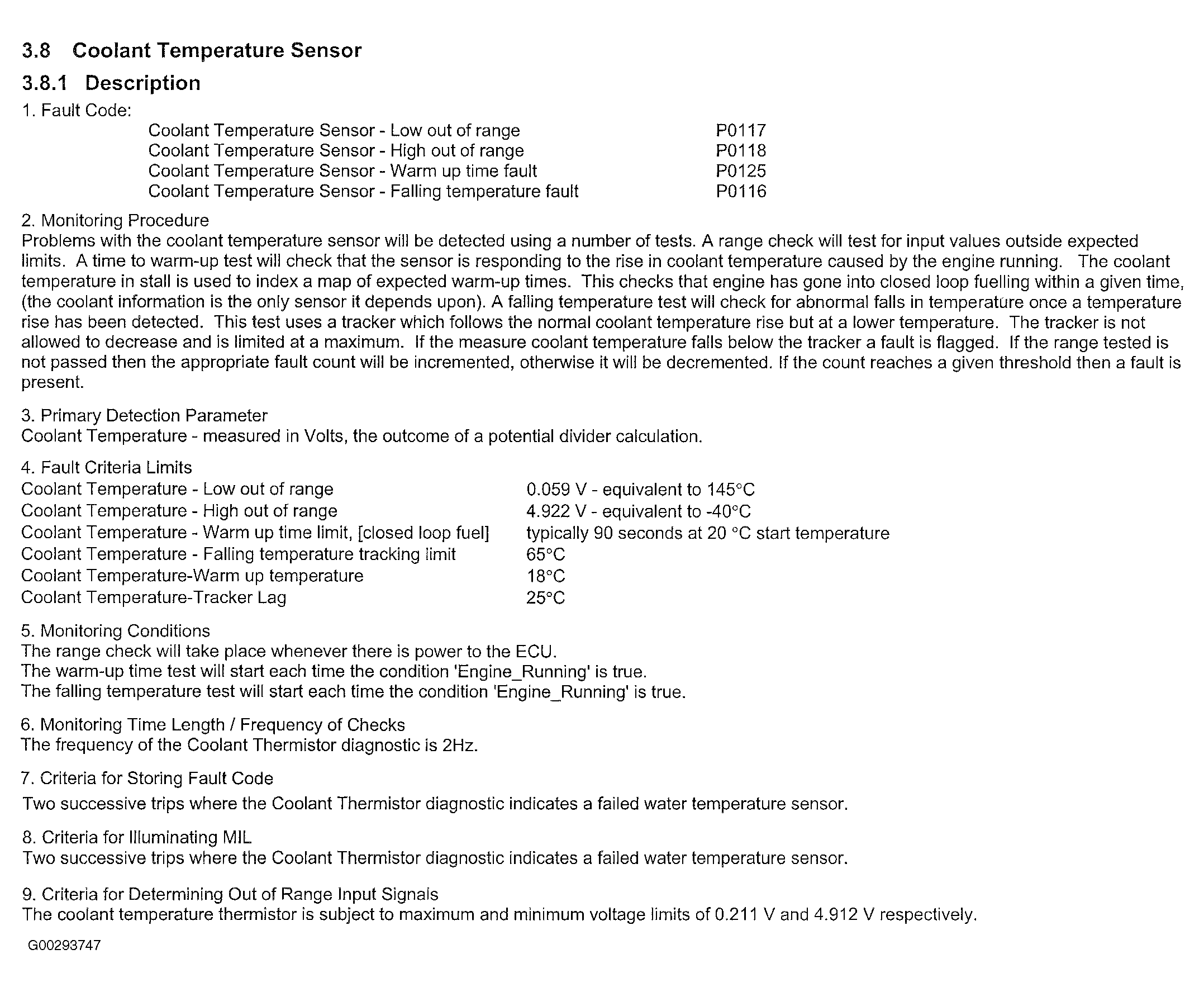

Fig 1: Coolant Temperature Sensor Monitoring Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

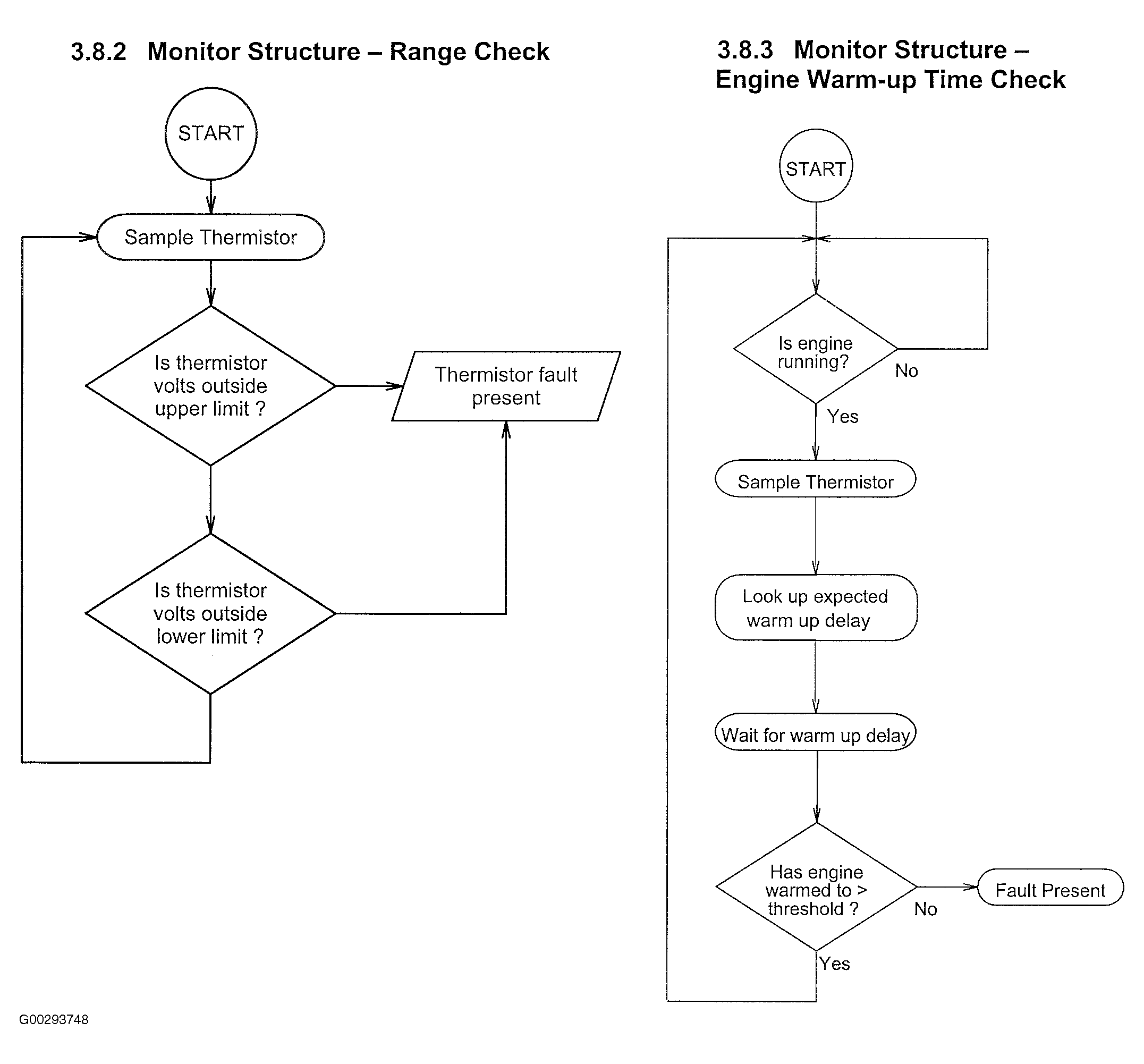

Fig 2: Coolant Temperature Sensor Monitoring Structure (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

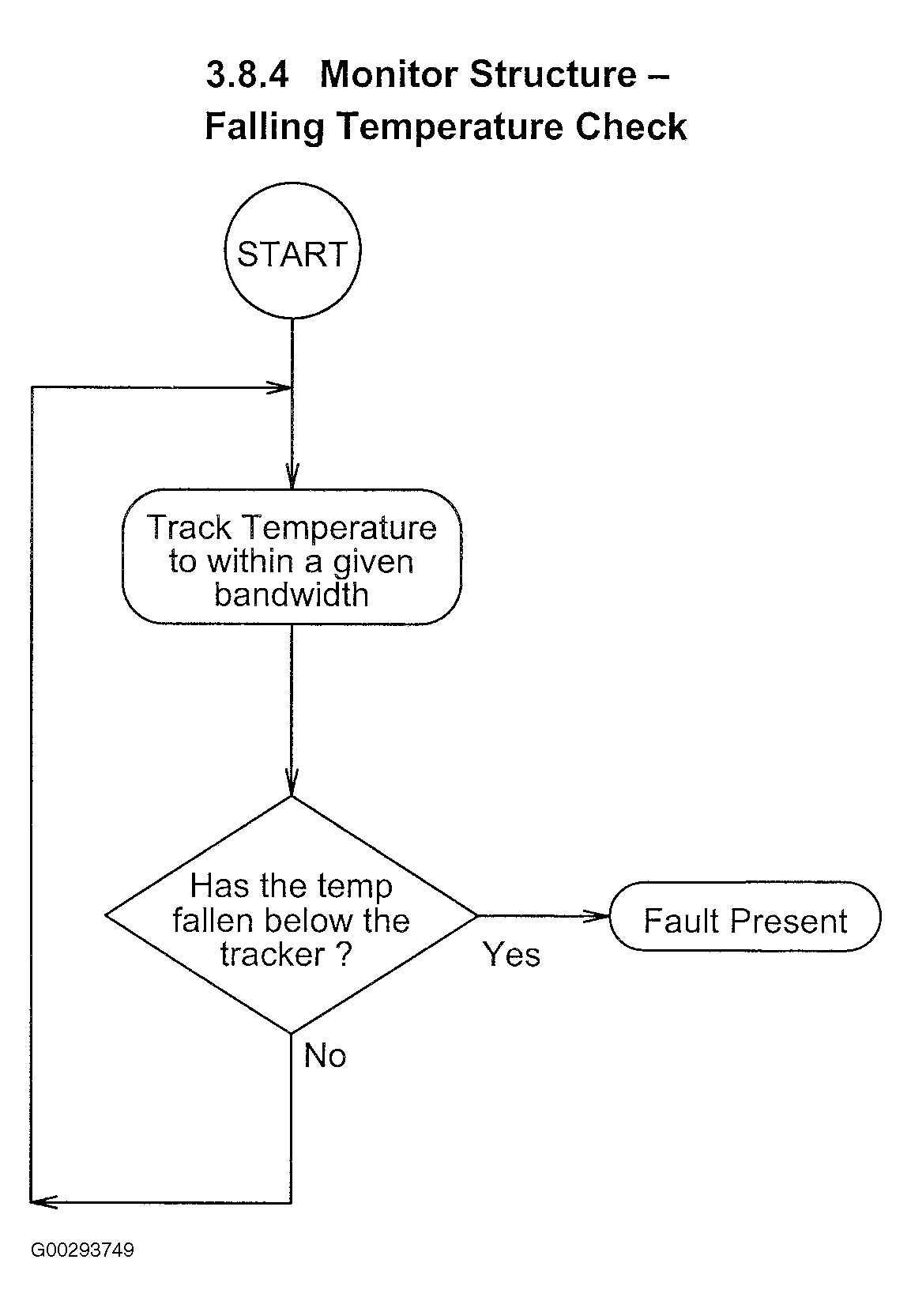

Fig 3: Coolant Temperature Sensor Monitoring Structure (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

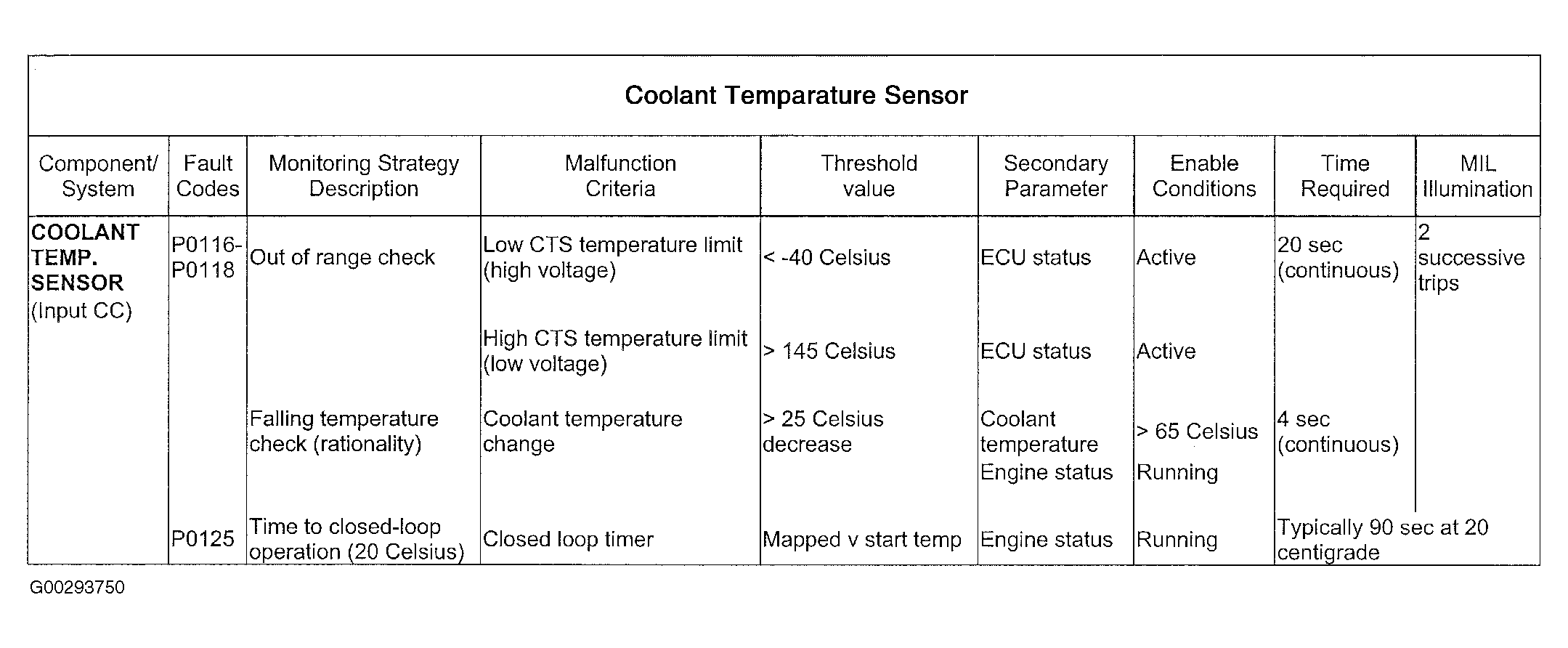

Fig 4: Coolant Temperature Sensor Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
