Engine Control Module Self Test Monitoring

For engine control module self test monitoring information see Fig 1 -Fig 3 .

NOTE: This monitor covers information for DTC P0605.

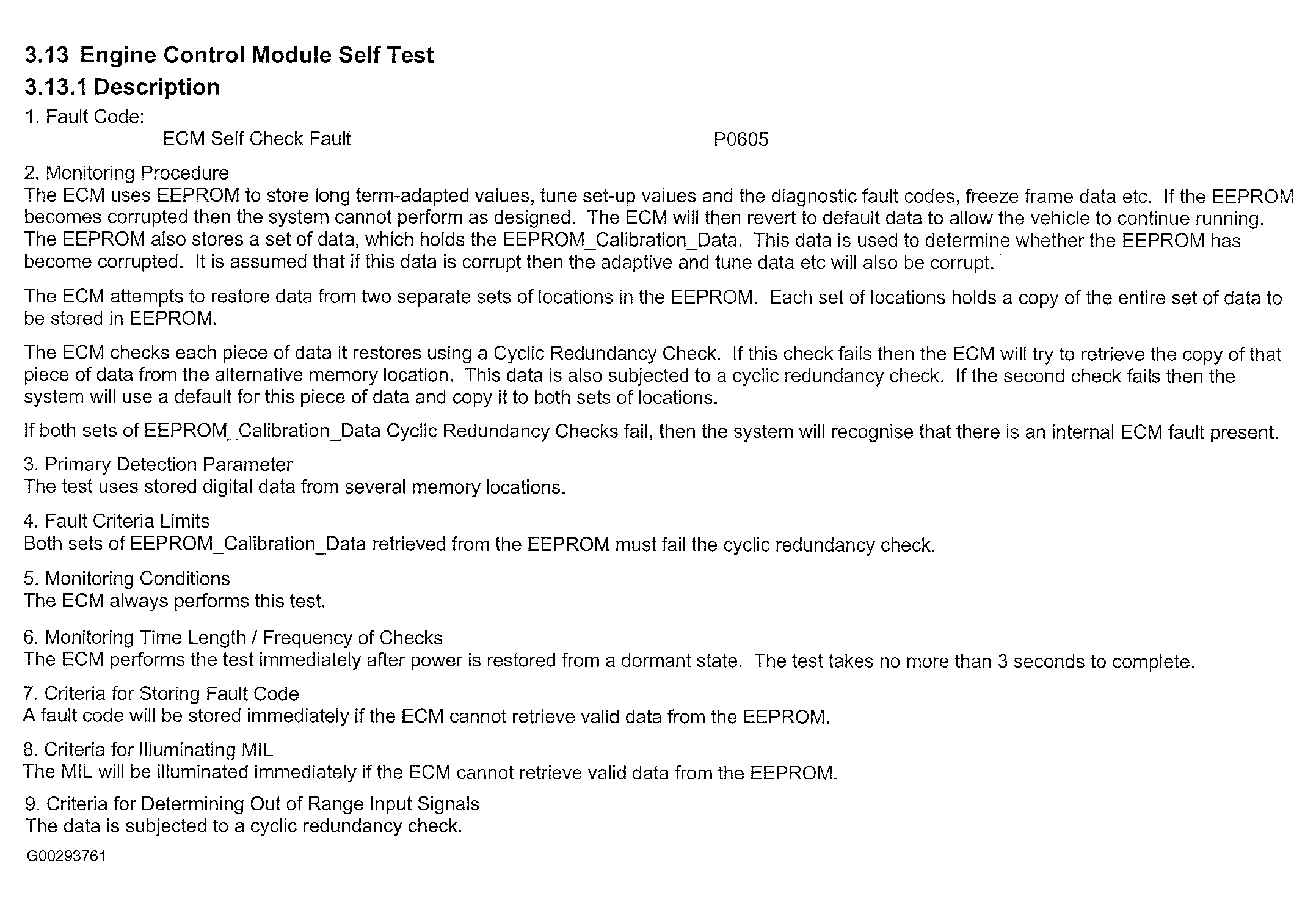

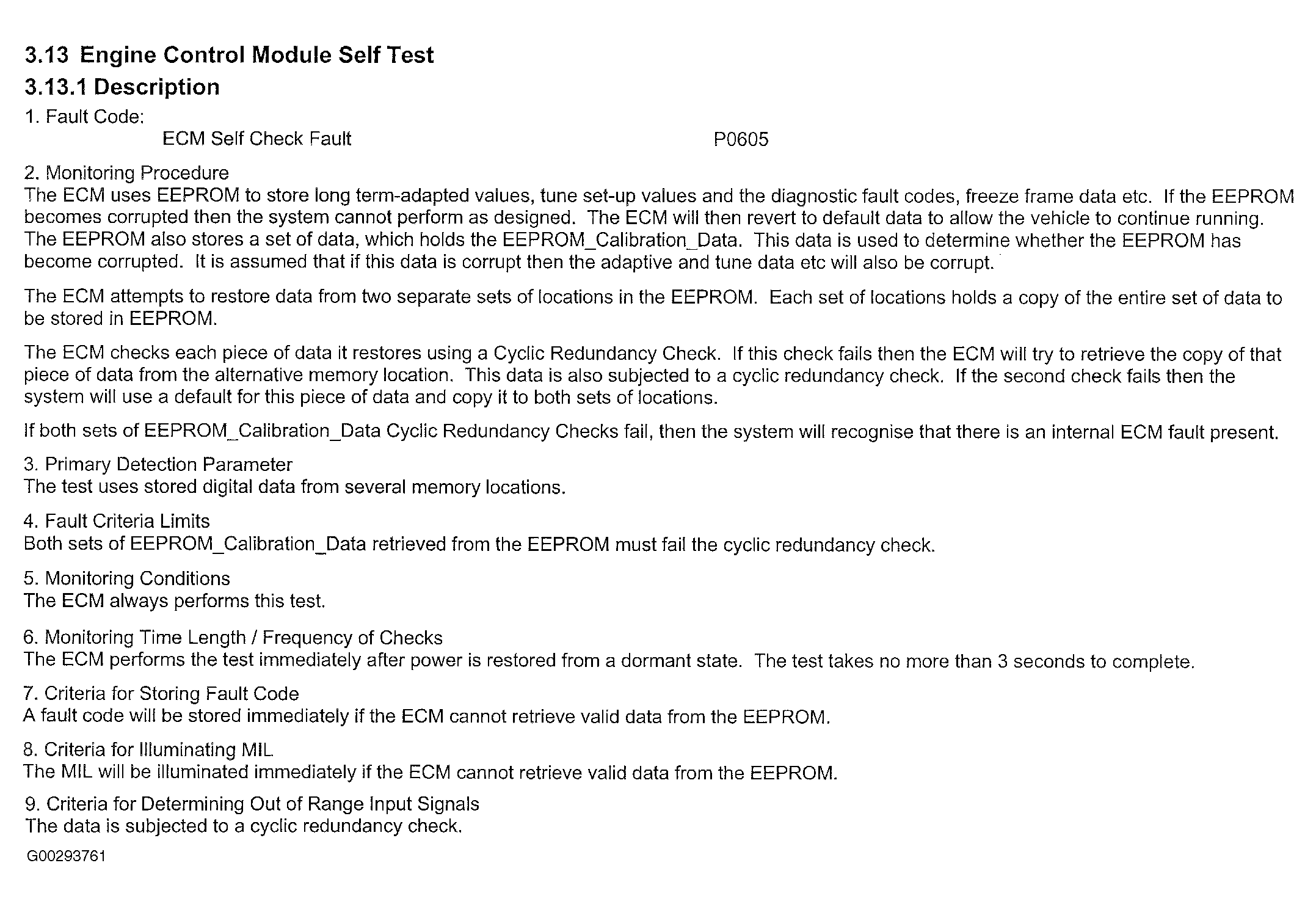

Fig 1: Engine Control Module Self Test Monitoring Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

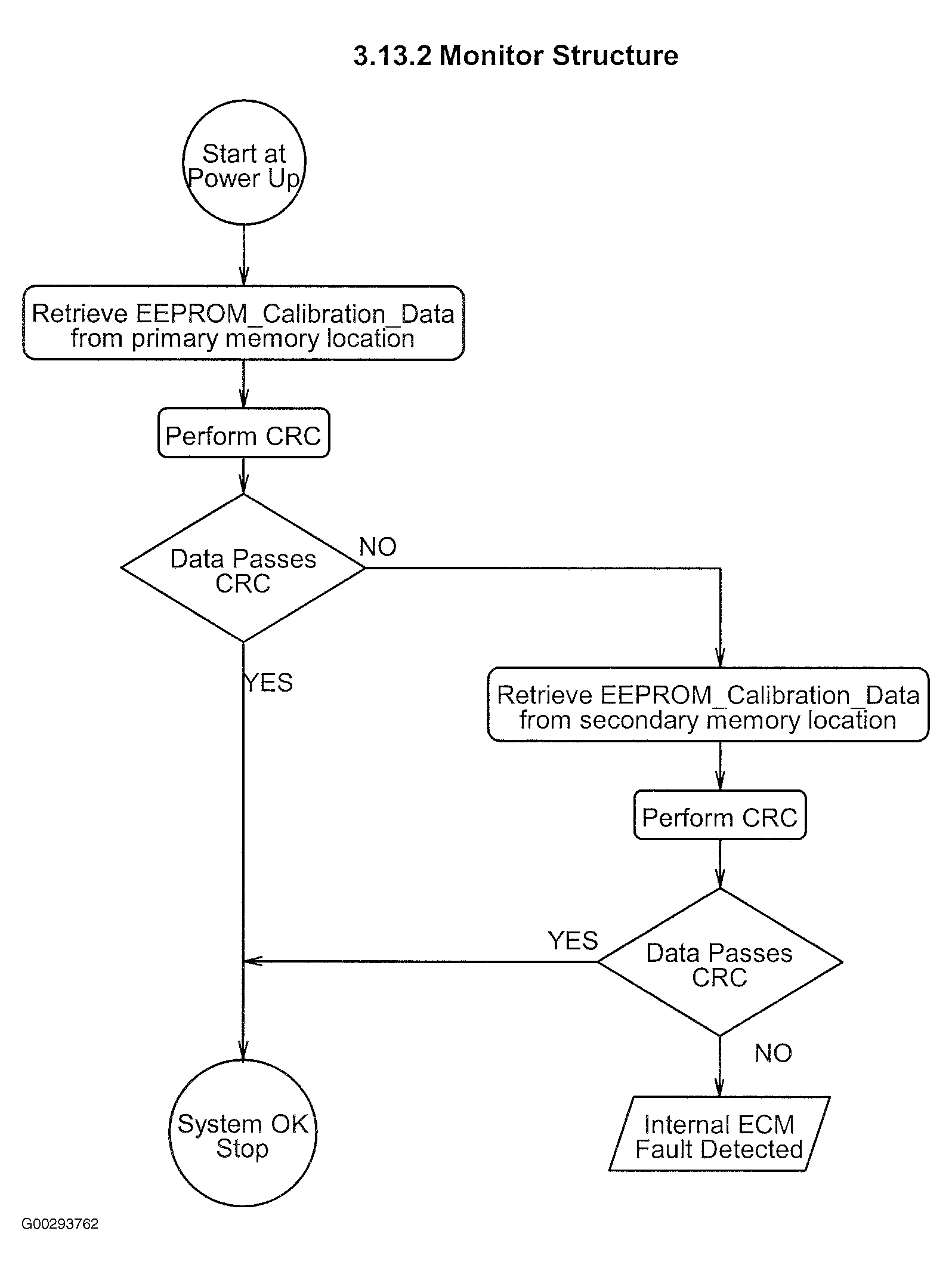

Fig 2: Engine Control Module Self Test Monitoring Structure

Courtesy of LAND ROVER NORTH AMERICA, INC.

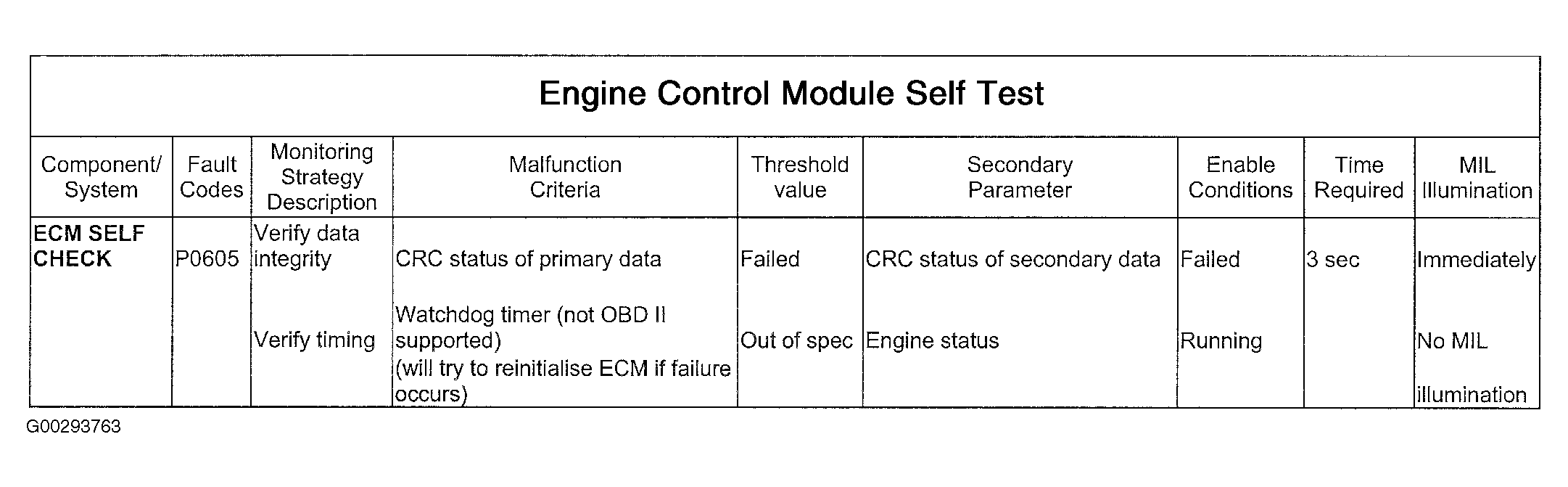

Fig 3: Engine Control Module Self Test Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
