Fuel Level Sensor Monitoring

For fuel level sensor monitoring information see Fig 1 -Fig 3 .

NOTE: This monitor covers information for DTC P0460, P0461 and P1199 (for pre 1997 models).

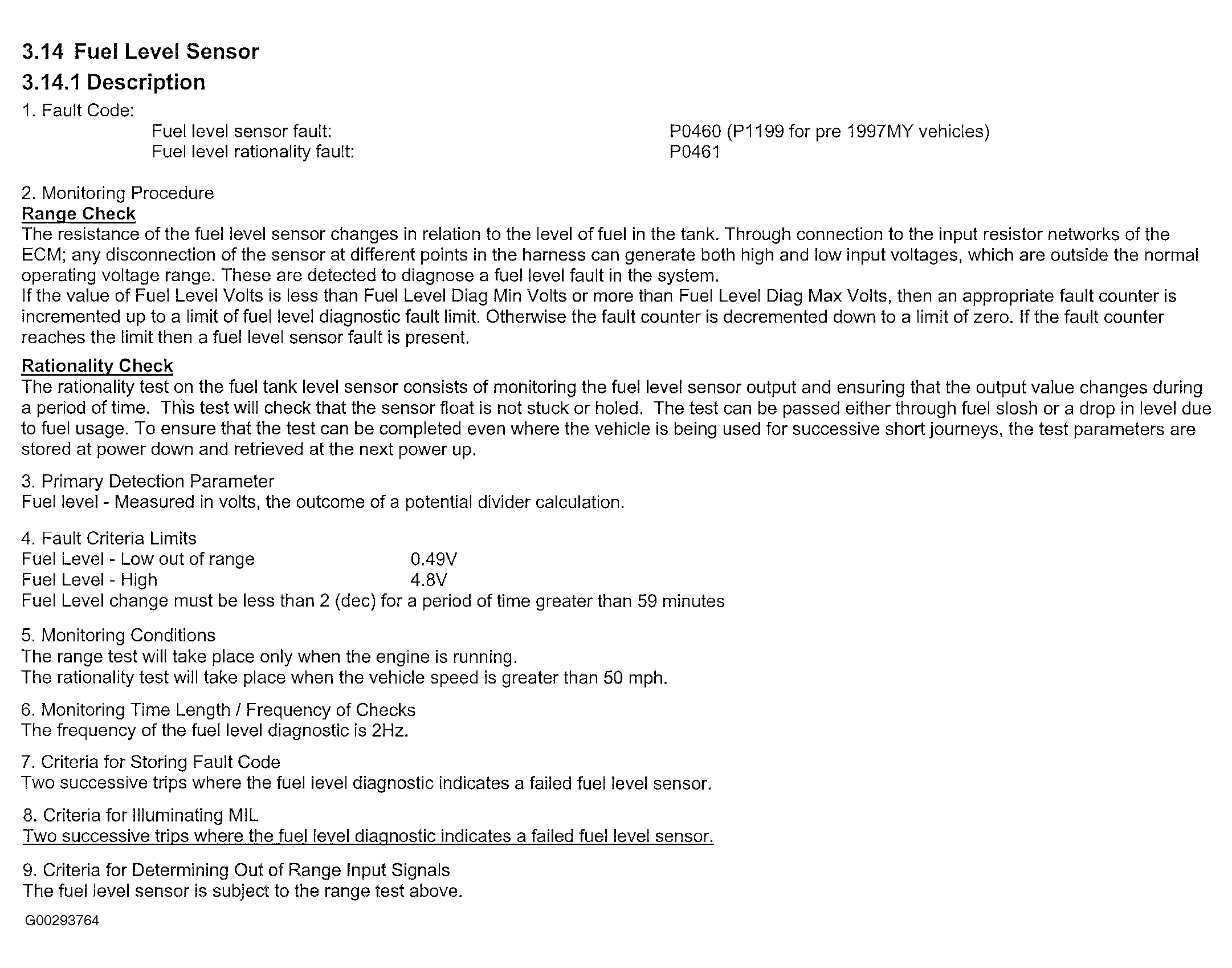

Fig 1: Fuel Level Sensor Monitoring Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

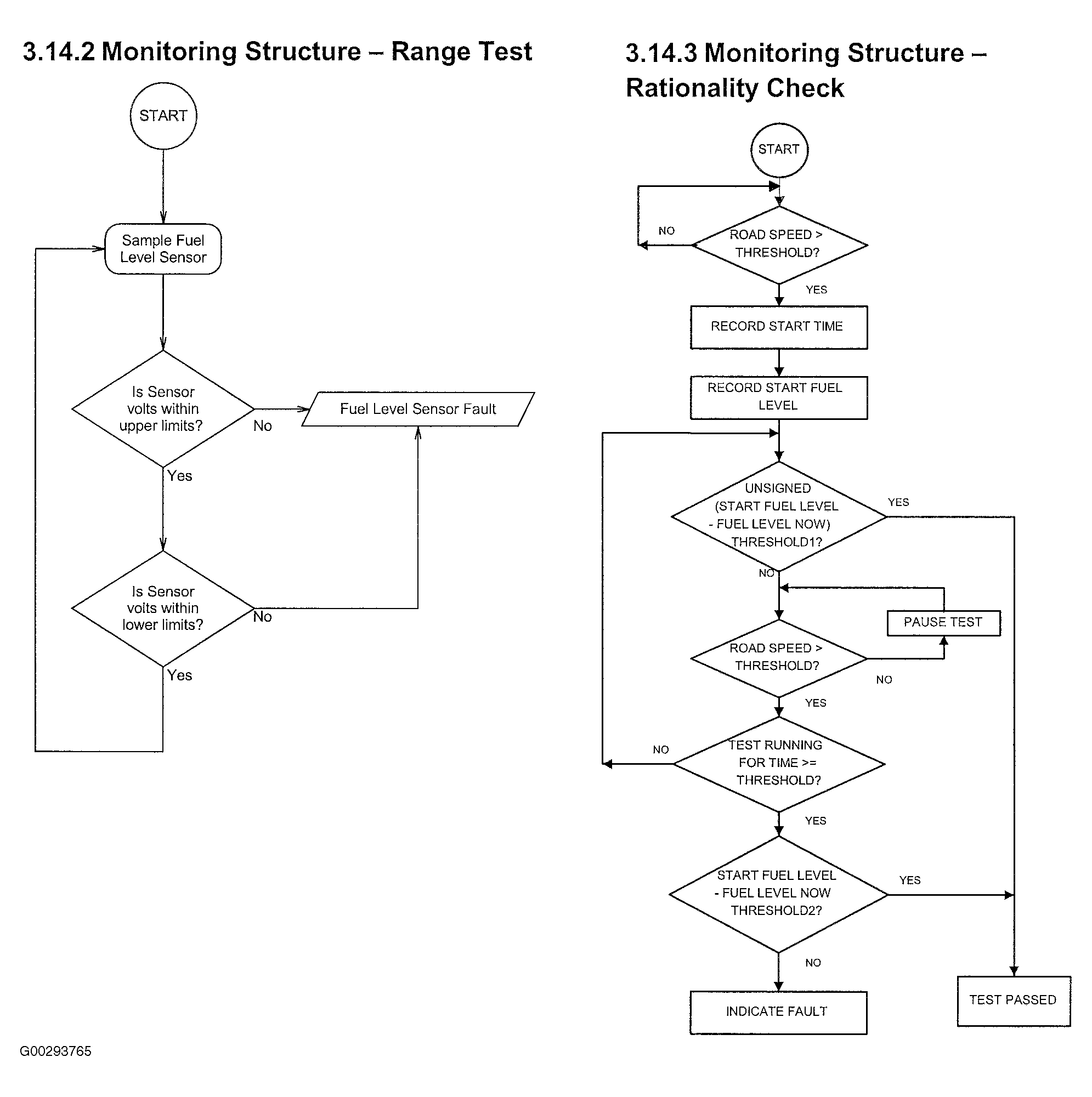

Fig 2: Fuel Level Sensor Monitoring Structure

Courtesy of LAND ROVER NORTH AMERICA, INC.

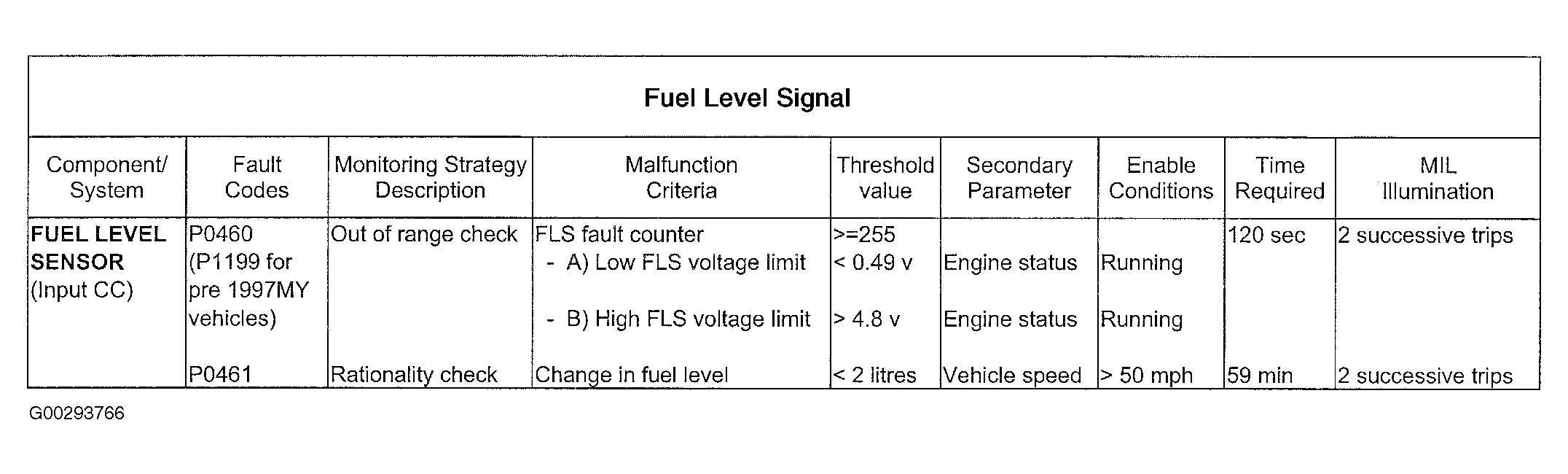

Fig 3: Fuel Level Sensor Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
