Fuel Temperature Sensor Monitoring

For fuel temperature sensor monitoring information see Fig 1 -Fig 3 .

NOTE: This monitor covers information for DTC P0181-P0183.

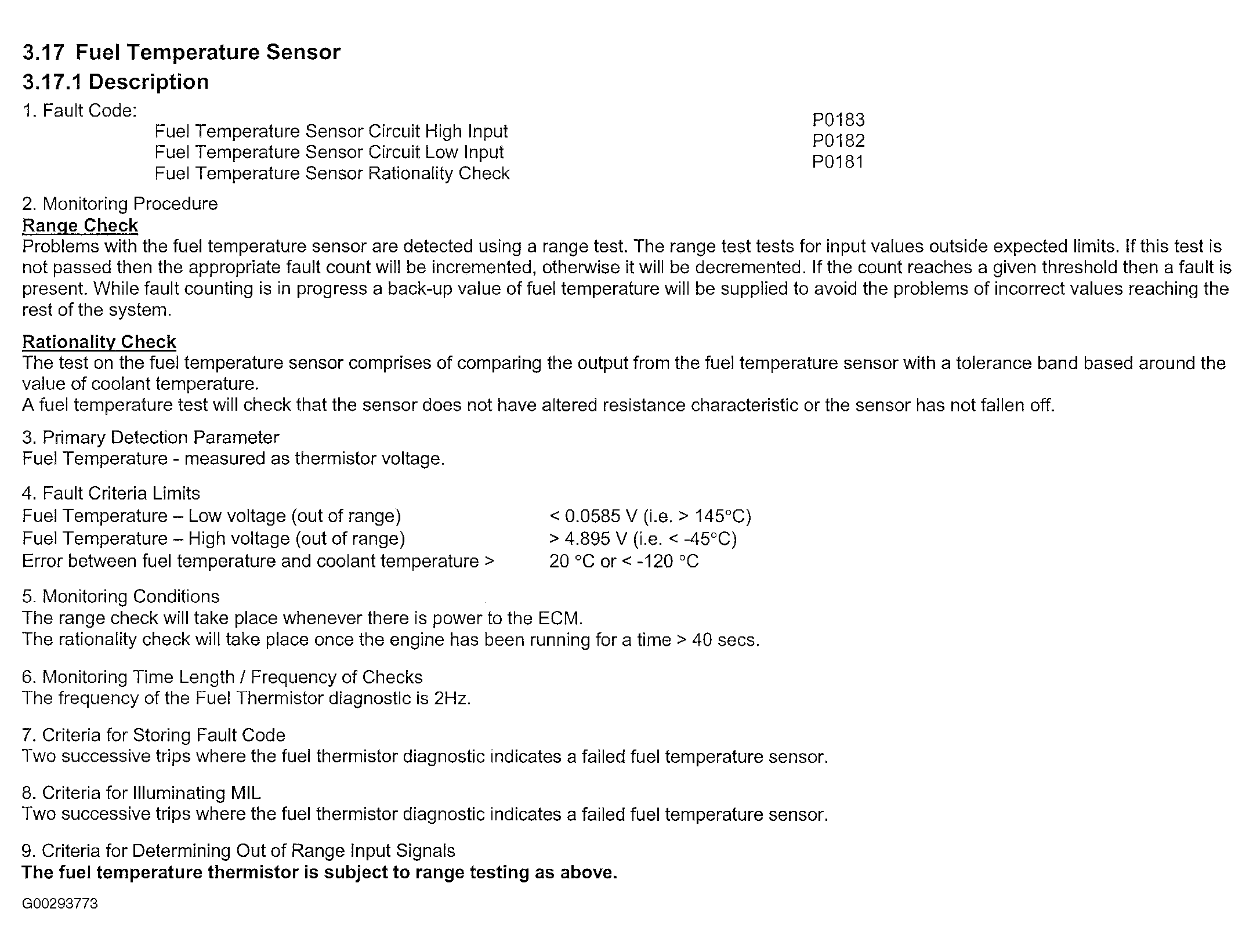

Fig 1: Fuel Temperature Sensor Monitoring Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

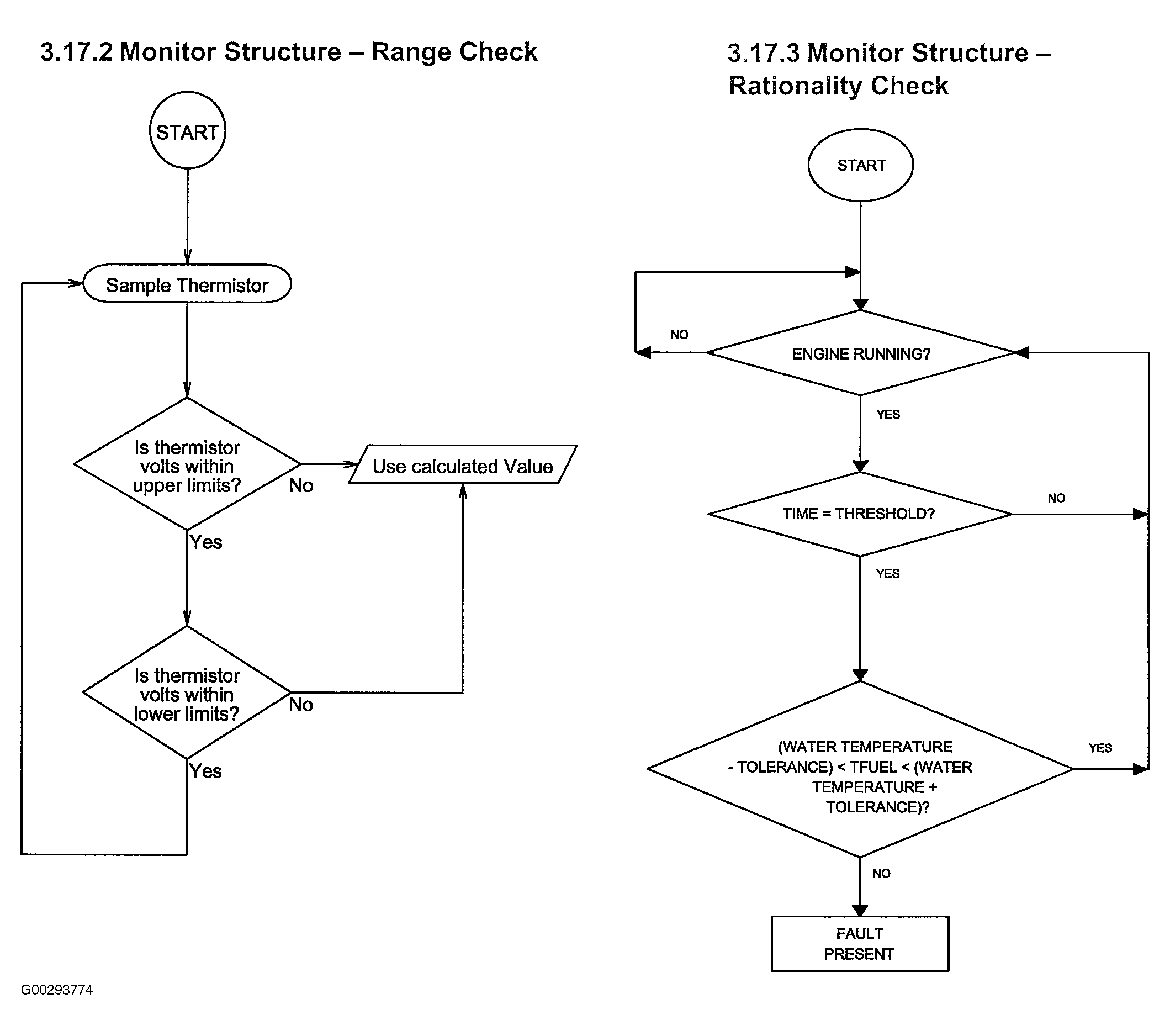

Fig 2: Fuel Temperature Sensor Monitoring Structure

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 3: Fuel Temperature Sensor Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
