Idle Speed Control Monitoring

For idle speed control monitoring information see Fig 1 -Fig 5 .

NOTE: This monitor covers information for DTC P0506, P0507, P1508 and P1509.

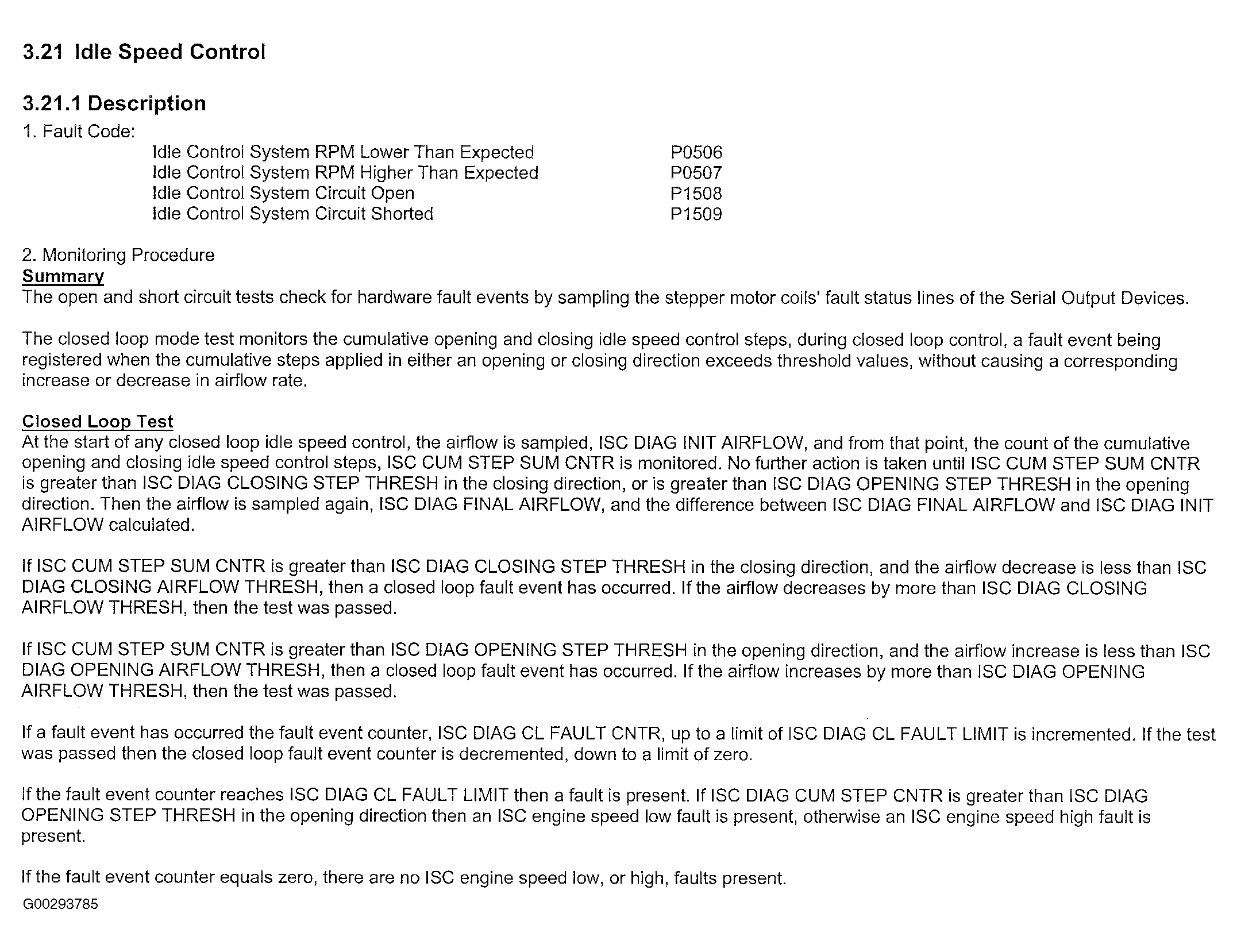

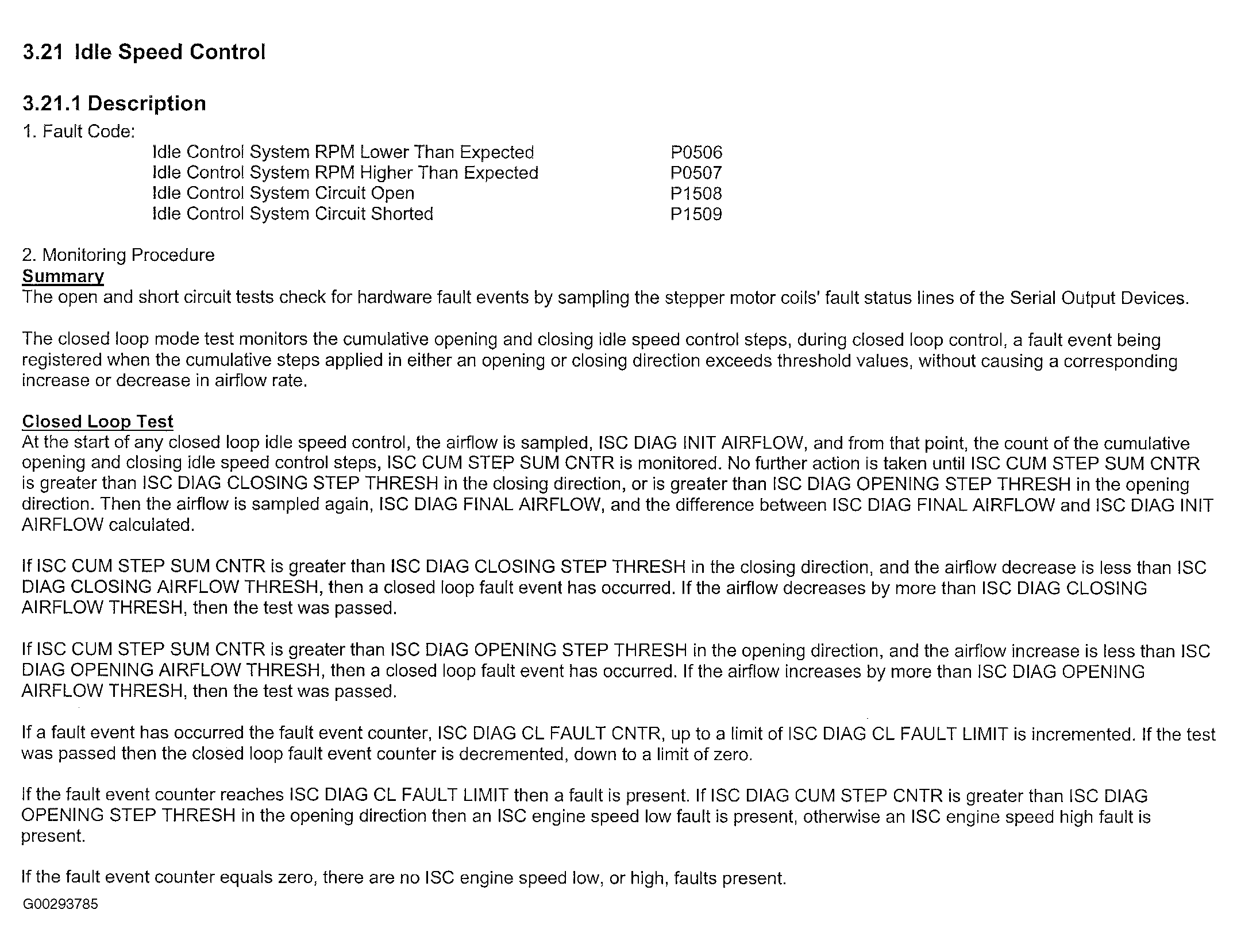

Fig 1: Idle Speed Control Monitoring Description (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

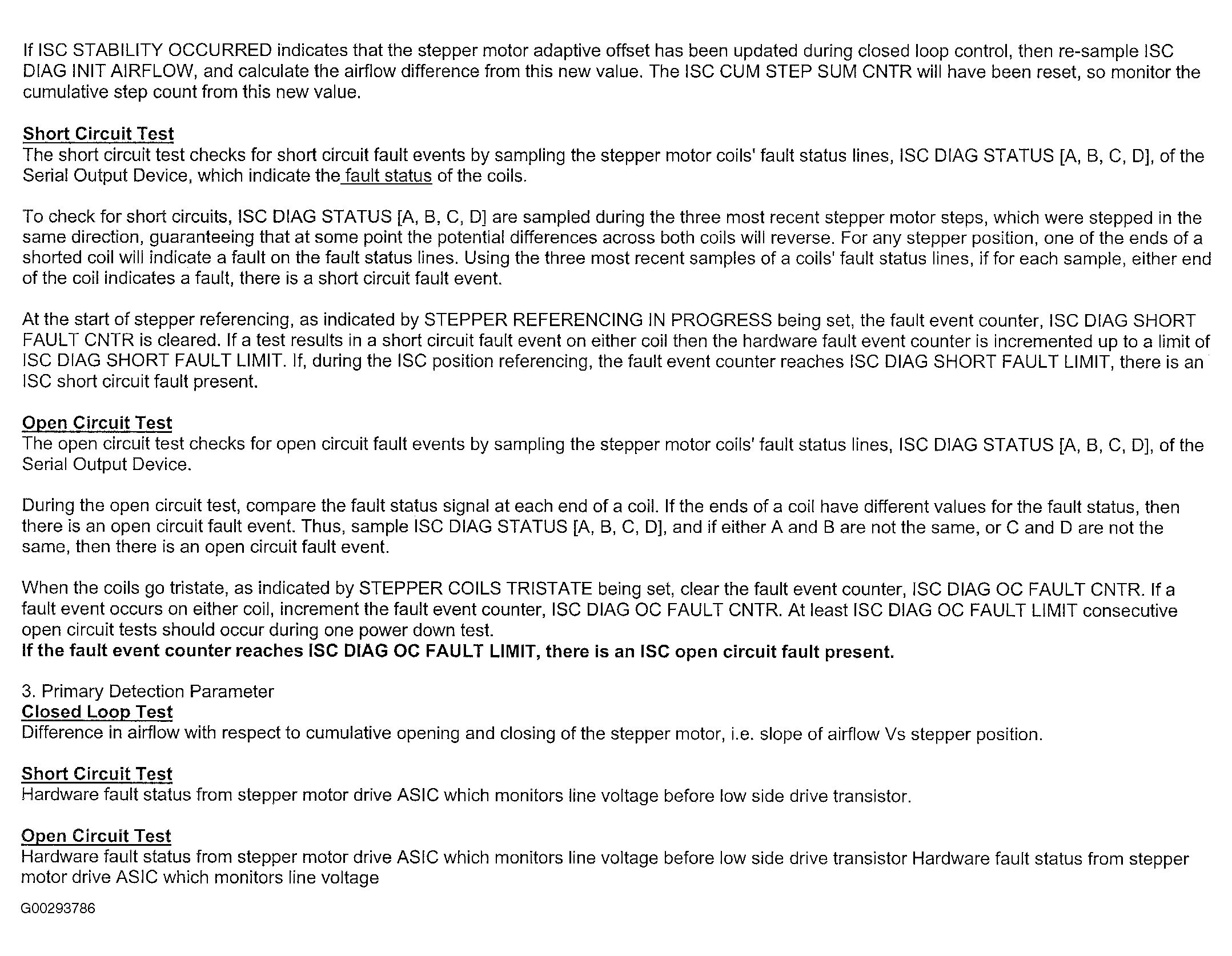

Fig 2: Idle Speed Control Monitoring Description (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

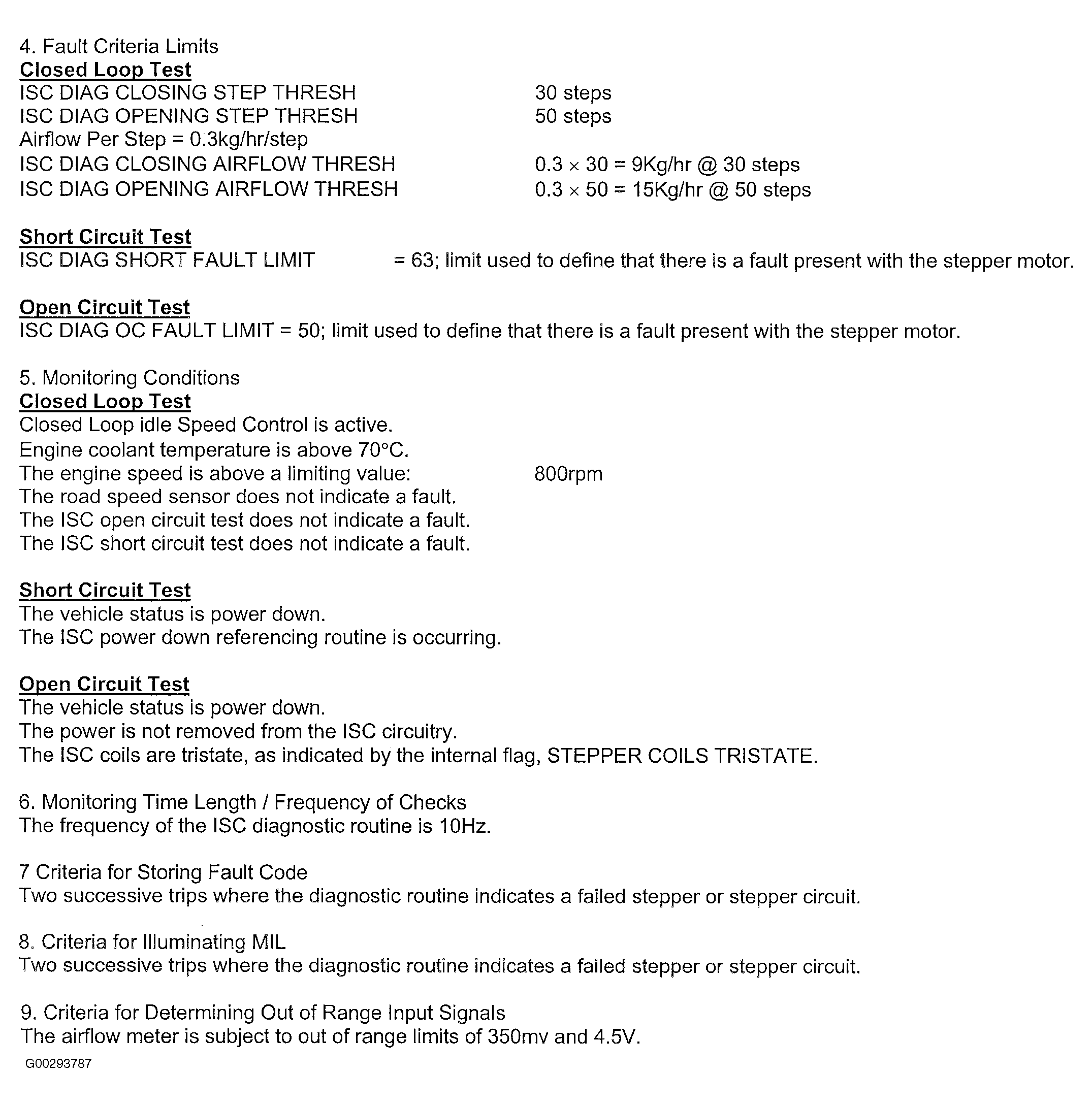

Fig 3: Idle Speed Control Monitoring Description (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 4: Idle Speed Control Monitoring Structure

Courtesy of LAND ROVER NORTH AMERICA, INC.

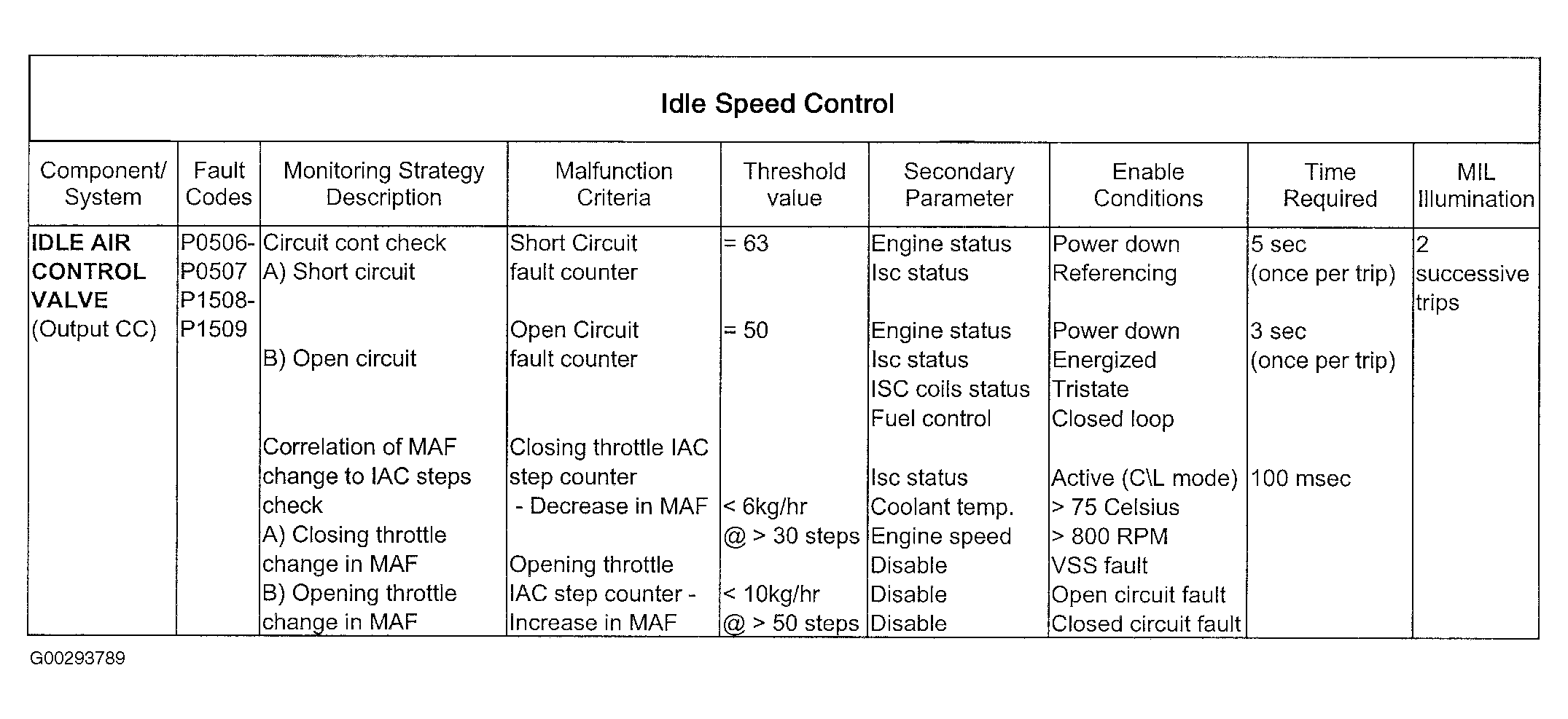

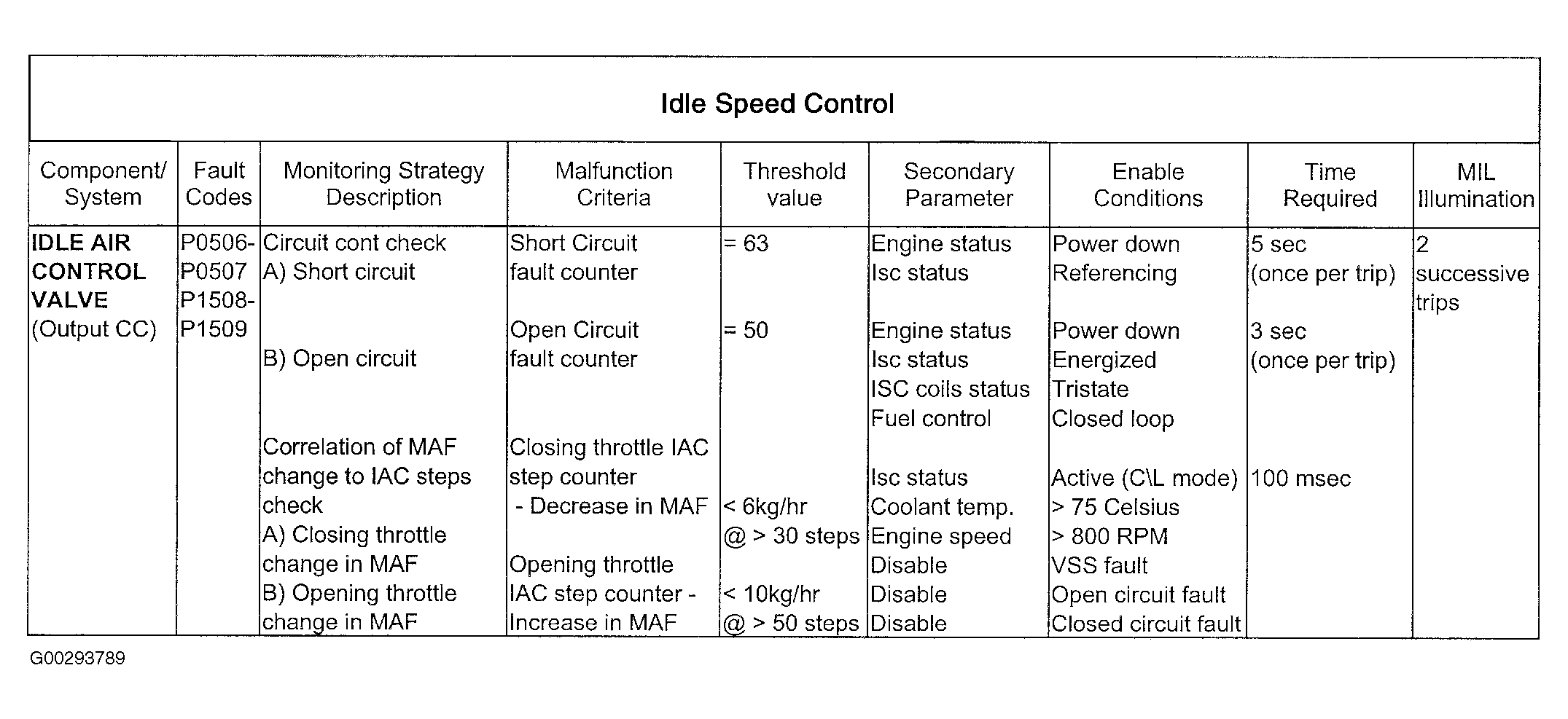

Fig 5: Idle Speed Control Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
