Ignition Coils Monitoring

For ignition coils monitoring information see Fig 1 -Fig 4 .

NOTE: This monitor covers information for DTC P1361-P1364 and P1371-P1374.

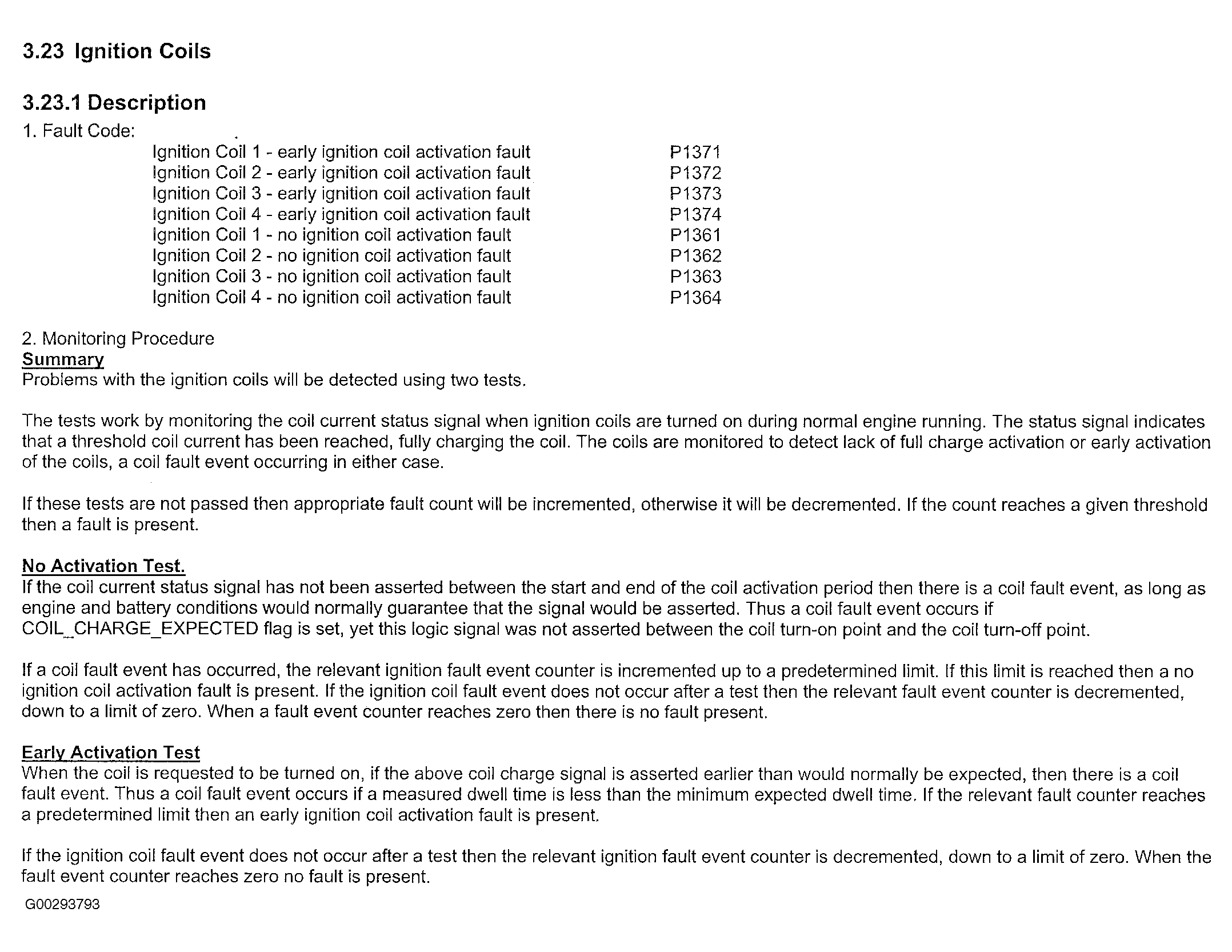

Fig 1: Ignition Coils Monitoring Description (1 Of 2

Courtesy of LAND ROVER NORTH AMERICA, INC.

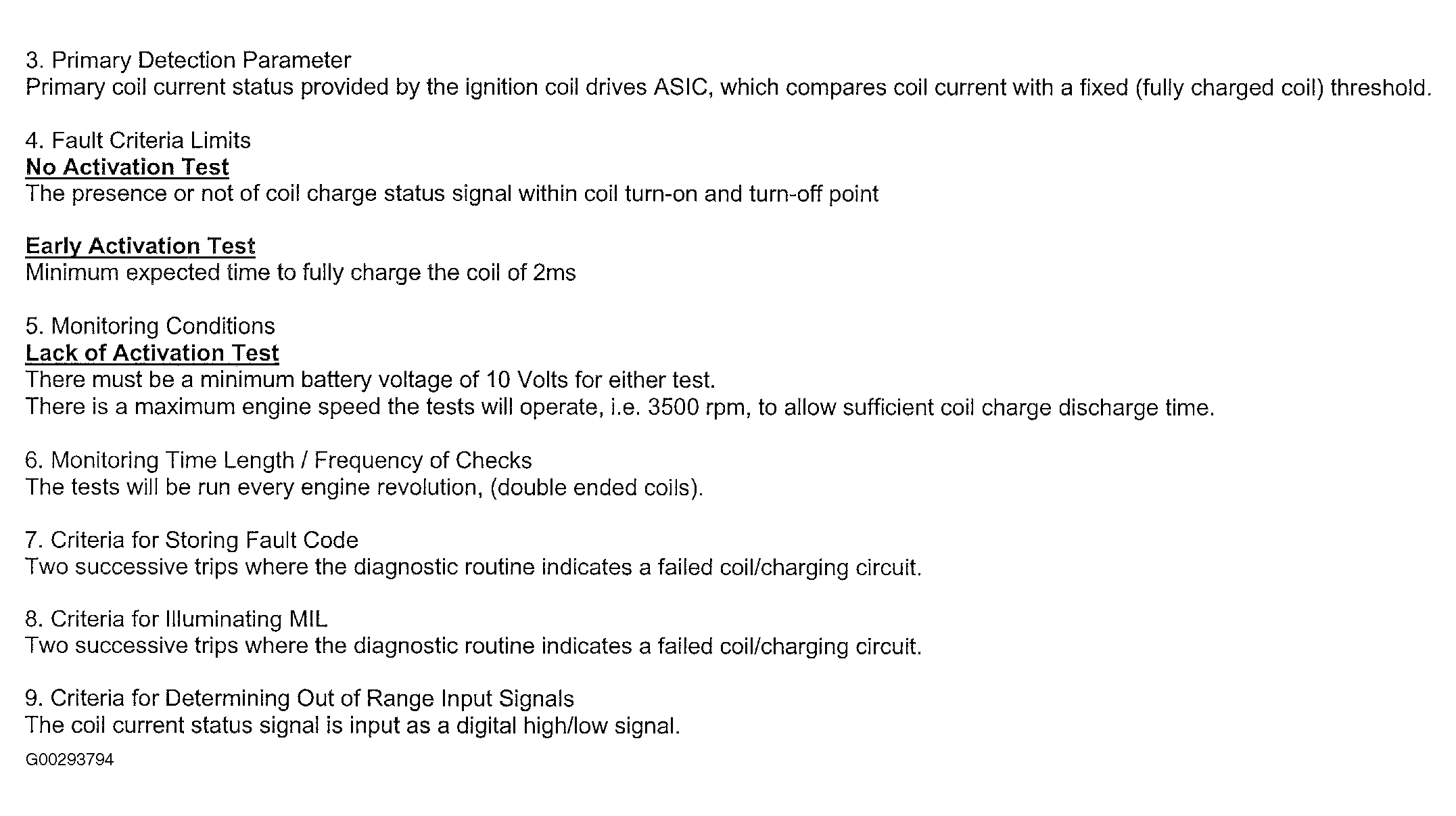

Fig 2: Ignition Coils Monitoring Description (2 Of 2

Courtesy of LAND ROVER NORTH AMERICA, INC.

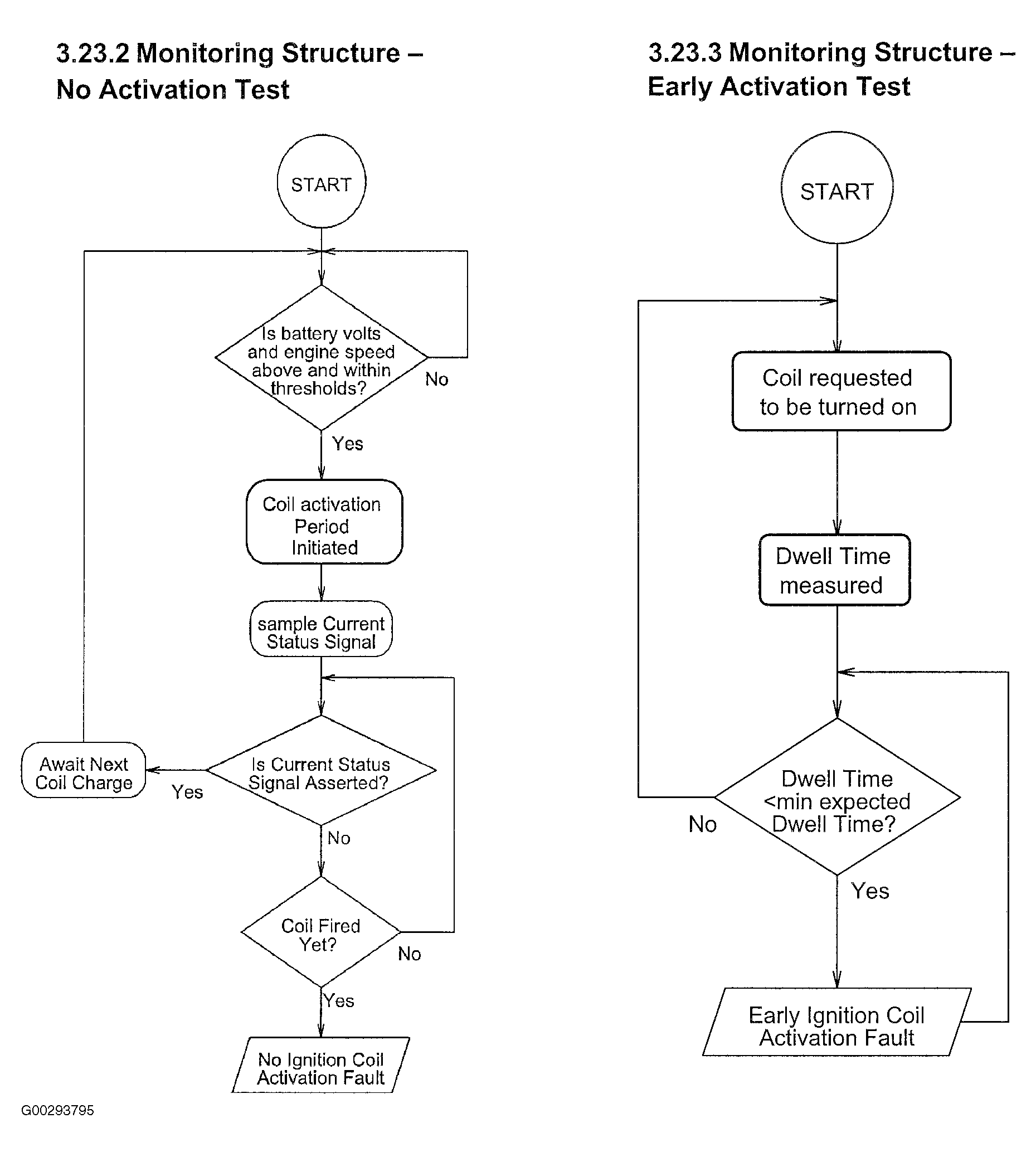

Fig 3: Ignition Coils Monitoring Structure

Courtesy of LAND ROVER NORTH AMERICA, INC.

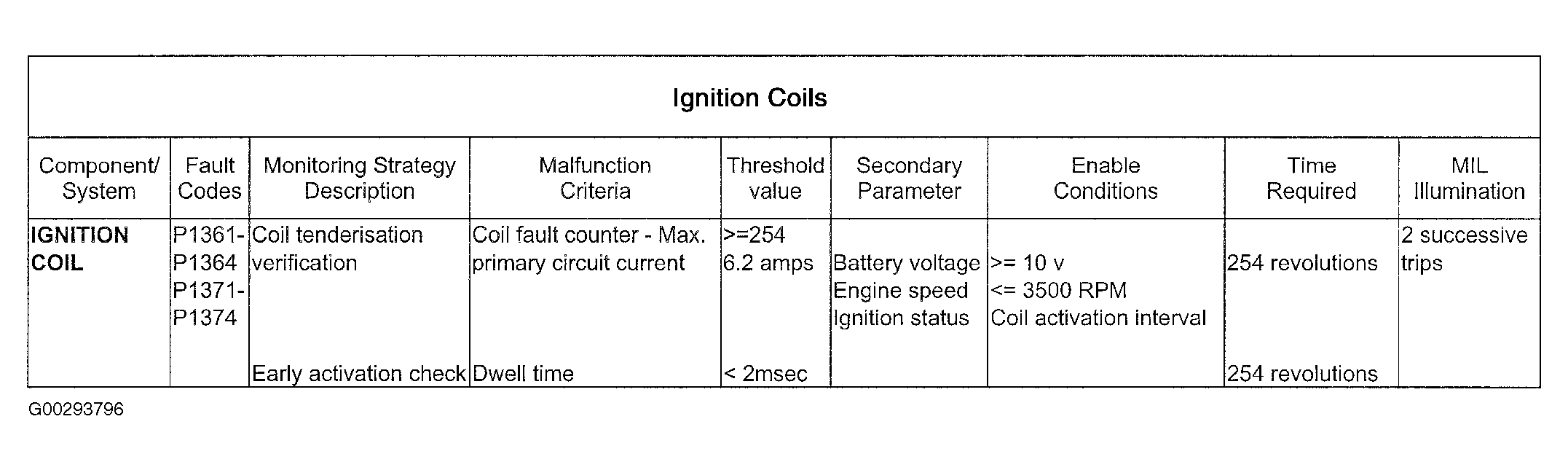

Fig 4: Ignition Coils Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
